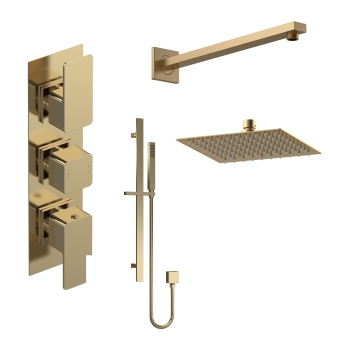

Delphi Edge Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit
A three-handle Edge concealed shower bundle in brushed brass, running two outlets: a 200mm square rain head on a flat 360mm bar arm and a 685mm blade thin rail with a square pencil handset. Temperature is set from the middle handle, and each outer handle opens one of the outlets, so you can use the overhead, the handset, or both at once.
The valve plate measures 280mm across the tiling and the same angular language carries through every piece, warm brushed brass throughout. We built it for a generous shower with a feature wall behind it, and the whole set, wall outlet elbow included, is bought as a single product.
Bundle Contents
- 1 x Delphi Edge Brushed Brass 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Square Brushed Brass Fixed Shower Head 200mm x 200mm
- 1 x Delphi Square Brushed Brass Shower Arm 360mm
- 1 x Delphi Square Pencil Brushed Brass Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, running the fixed head and handset alone or together
- Three controls: the centre one sets the temperature, the outer two open one outlet each
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 280mm x 80mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Brushed brass finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm x 200mm square spray face with a chamfered, knife thin edge
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles set in a regular grid
- Single function rainfall spray
- Matching square arm projecting 360mm from the finished wall on a 62mm square flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 685mm rail, projecting just 65mm from the wall
- Handset slides and locks at any height along the bar
- Single function square pencil handset with a flat, easy clean face
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
