Delphi Highgate Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

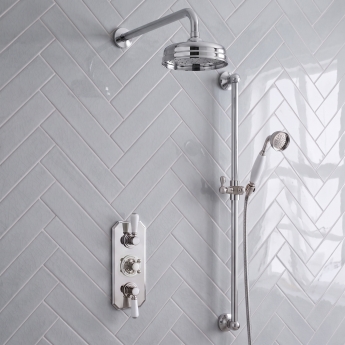

The fullest traditional set we build in Highgate, this one gives the overhead rose and the handset their own controls, so either can run alone or both together. A 280mm cut-cornered plate carries three handles, the white ceramic lever sitting between two metal crossheads, and the 200mm solid brass apron head hangs overhead on a curving round arm.
The concealed thermostatic valve sets the temperature from the centre handle and opens each outlet from the outer two. Valve, apron head, 335mm arm and the white handled slide rail kit are supplied together in chrome for one price.

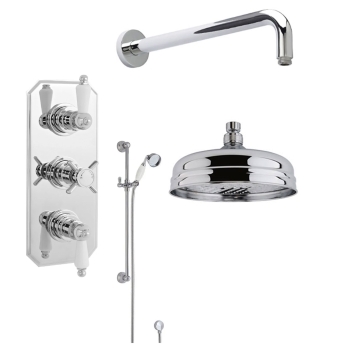

Bundle Contents
- 1 x Delphi Highgate Chrome 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Traditional Chrome Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Wall Outlet Elbow)
Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, run on their own or both together

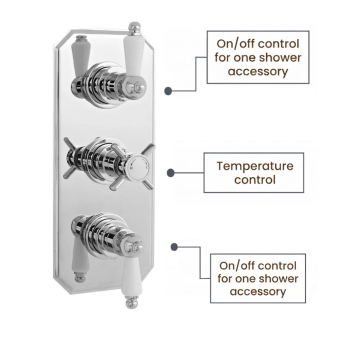

- Three controls: the centre one sets the temperature, the outer two each open one outlet
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 280mm x 120mm plate, fitted portrait or landscape, needing a recess 86mm deep
- 15mm inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm apron rose, domed and banded, 115mm deep for real presence overhead
- Machined from solid brass, so the weight matches the traditional styling
- Recessed spray plate set up inside the apron, nozzles hidden under the rim
- Single function head giving one soft, wide rainfall spray
- Knurled swivel joint at the 1/2 inch BSP inlet, so the angle can be set
- Matching round arm projecting 335mm from the finished wall on a 60mm circular flange

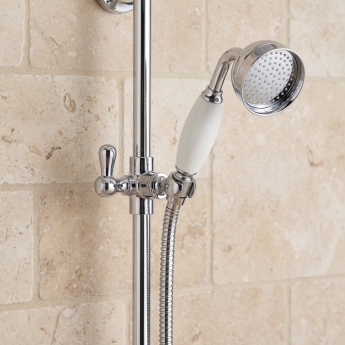

Slide Rail Kit Features
- 750mm rail, 70mm wide and projecting 150mm from the wall
- Lever operated sliding bracket resets the handset height in seconds
- Single function tapered rose handset with classic white ceramic detailing
- 1500mm flexible shower hose
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
