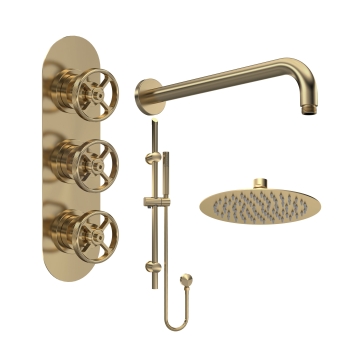

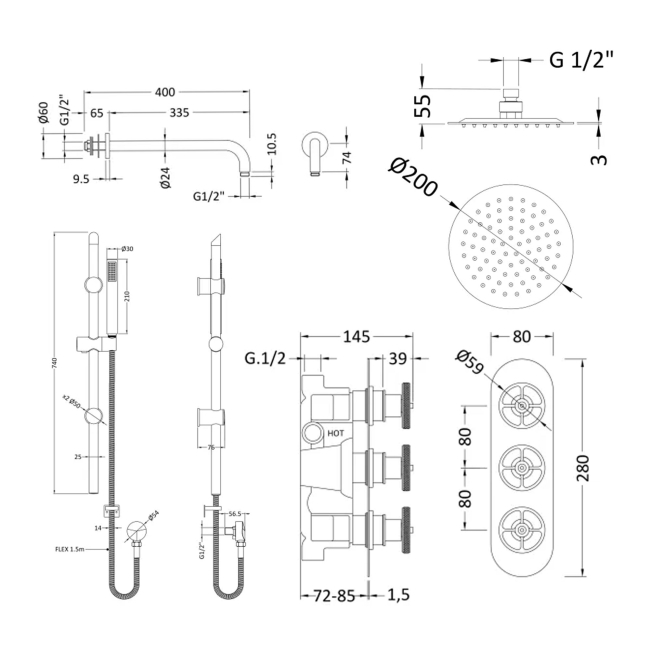

Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Product Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit  | Dimension Image
Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit | Thumbnail Image Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Quick Code: 2858030
Ref: DETC32FSBR
Delphi | Brand Logo
£393.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £32.83 at 0% APR using PayPal.
Find out more

Configuration:

Triple Valve | Fixed Head + Slide Rail Kit
▾
Dual Valve | Fixed Head
Dual Valve | Handset + Bracket
Dual Valve | Slide Rail Kit
Dual Valve | Fixed Head + Handset
Dual Valve | Fixed Head + Slide Rail Kit
Triple Valve | Fixed Head + Handset
Triple Valve | Fixed Head + Slide Rail Kit

Colour/Finish:

Chrome | Variant ImageChromeMatt Black | Variant ImageMatt Black
Brushed Brass | Variant ImageBrushed Brass

Out of Stock

Stock is expected around 13/01/2027.

Free Delivery Available

Delivery postcode restrictions apply

Check

Delphi Turbine Brushed Brass Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

The largest brushed brass shower we build in Turbine, and the one that shows the finish off best: a 280mm three-handle plate, a 200mm rainfall disc on a 335mm arm and a 740mm rail with a matching round handset. Warm brushed metal at this scale carries a plain tiled enclosure on its own without any other decoration.

Temperature is set from the centre wheel and each outlet has its own on-off handle, so the overhead and the rail run separately or together. All four pieces are supplied for one price, with the wall outlet elbow included.

Bundle Contents

  • 1 x Delphi Turbine Brushed Brass 2-Outlet Triple Concealed Shower Valve
  • 1 x Delphi Round Brushed Brass Fixed Shower Head 200mm x 200mm
  • 1 x Delphi Round Brushed Brass Shower Arm 335mm
  • 1 x Delphi Round Pencil Brushed Brass Slider Rail Shower Kit (inc Wall Outlet Elbow)

Shower Valve Features

  • Three-handle shower valve, including the concealing plate and valve body in one package
  • Two outlets, each with its own control, so both accessories run alone or together
  • Three controls: the centre sets the temperature, the outer two open one outlet each
  • Thermostatic cartridge holds your set temperature steadily as household pressure shifts
  • TMV2 approved, so the flow shuts off if the cold supply fails
  • WRAS approved for connection to the mains water supply
  • Quarter turn ceramic disc cartridge for smooth, precise control
  • 280mm x 80mm oval plate, needing a recess 72mm to 85mm deep
  • 1/2 inch BSP inlets, working from a minimum of 0.5 bar
  • Brushed Brass finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

  • 200mm diameter round spray face, flat and only 55mm deep
  • Stainless steel, which will not rust or tarnish in a shower enclosure
  • Rub clean silicone nozzles laid out in concentric rows
  • Single function rainfall spray
  • Matching round arm projecting 335mm from the finished wall on a 60mm round flange
  • Solid brass tube with a 1/2 inch BSP swivel connector, so the spray angle can be set

Slide Rail Kit Features

  • 740mm rail, 140mm wide, projecting just 76mm from the wall
  • Handset slides and locks at any height along the bar
  • Single function round handset with an easy clean spray face
  • 1500mm flexible shower hose
  • Wall outlet elbow included, connecting the kit straight to the concealed valve
  • Brass and ABS construction
  • 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

  • This is a two-outlet shower valve designed for two accessories only (both are included).

Shower TypeMixer
Temperature ControlThermostatic
Valve PositionConcealed
Valve Controls3
Valve Outlets2
Backplate ShapeOval
Control TypeWheel
Fixed Head ShapeRound
Fixed Head Size200mm Diameter
Fixed Head MountingWall Arm
Wall Arm Length335mm from the wall
Shower Kit TypeAdjustable Slide Rail
Shower Kit ShapeRound
Shower Kit Height740mm
Handset ShapeRound (Pencil)
Handset MountingShower Kit Parking Bracket
Handset ModesSingle Function
Shower Hose Length1500mm
Minimum Pressure0.5 Bar
Minimum Pressure by PartValve (0.1 Bar), Fixed Head (0.5 Bar), Shower Kit (0.5 Bar)
Manufacturer Part NumberTC-32-FS-BR
MaterialBrass, ABS, Stainless Steel
Colour/FinishBrushed Brass
BrandDelphi
CollectionTurbine
StyleModern
Weight5.88 kg
Flow Rate @ 0.1 Bar5.50 Litres/Min
Flow Rate @ 0.5 Bar14.00 Litres/Min
Flow Rate @ 1.0 Bar20.00 Litres/Min
Flow Rate @ 2.0 Bar29.00 Litres/Min
Flow Rate @ 3.0 Bar44.00 Litres/Min

Shower Arm Fitting Instructions
Type : PDF Size : 191.42 KB
Shower Valve Fitting Instructions
Type : PDF Size : 6.71 MB
Slider rail kits Fitting Instructions
Type : PDF Size : 191.99 KB
