Geberit Alpha Wall Hung WC Toilet Frame with Alpha Concealed Cistern 500mm W x 820mm H

This Geberit Alpha 820mm H Frame & Cistern provides an innovative concealed solution for wall-hung WCs in small spaces opening up opportunities when it comes to the design of your bathroom

Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas

Whether you're upgrading your ensuite, optimising a small space, or installing a wall-hung WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency

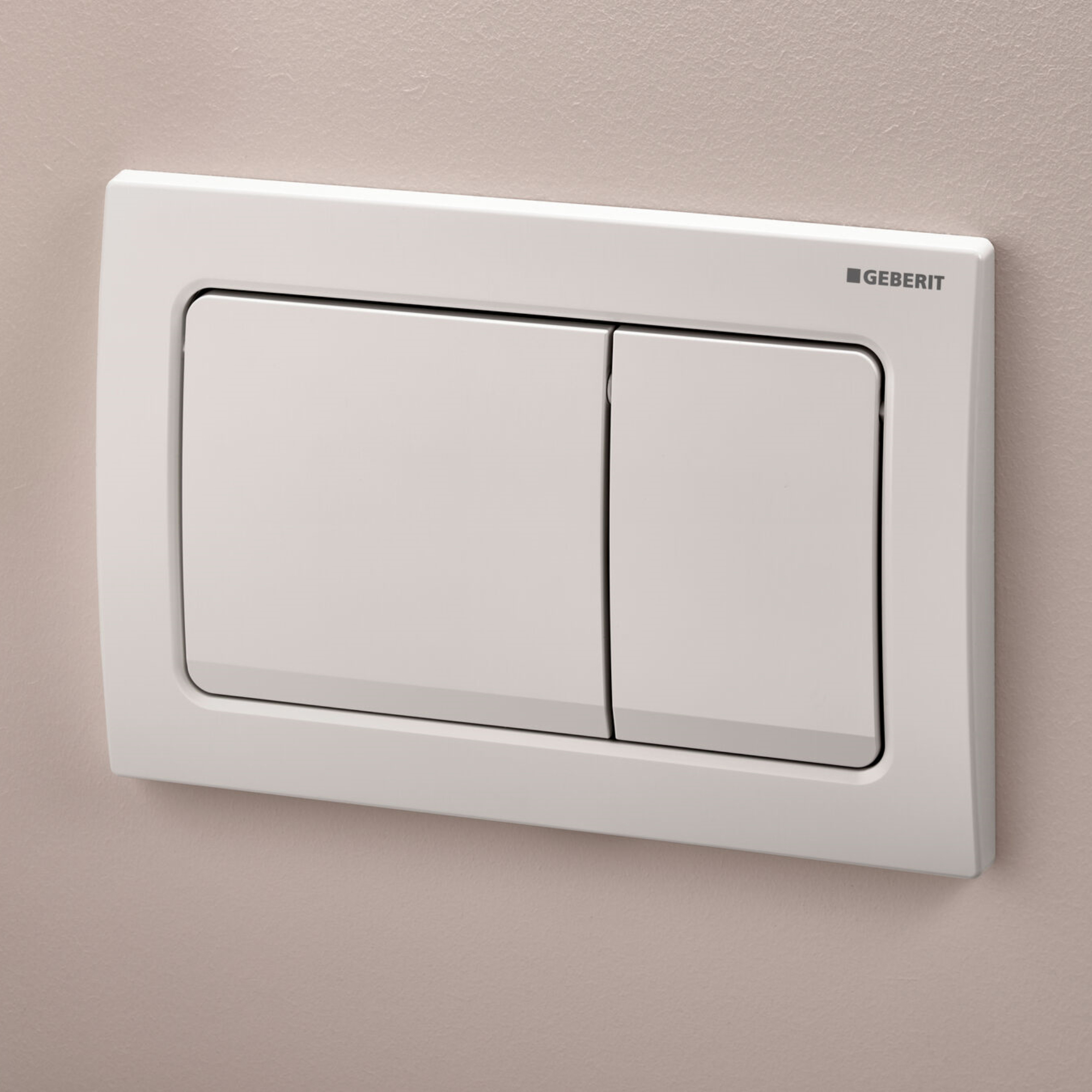

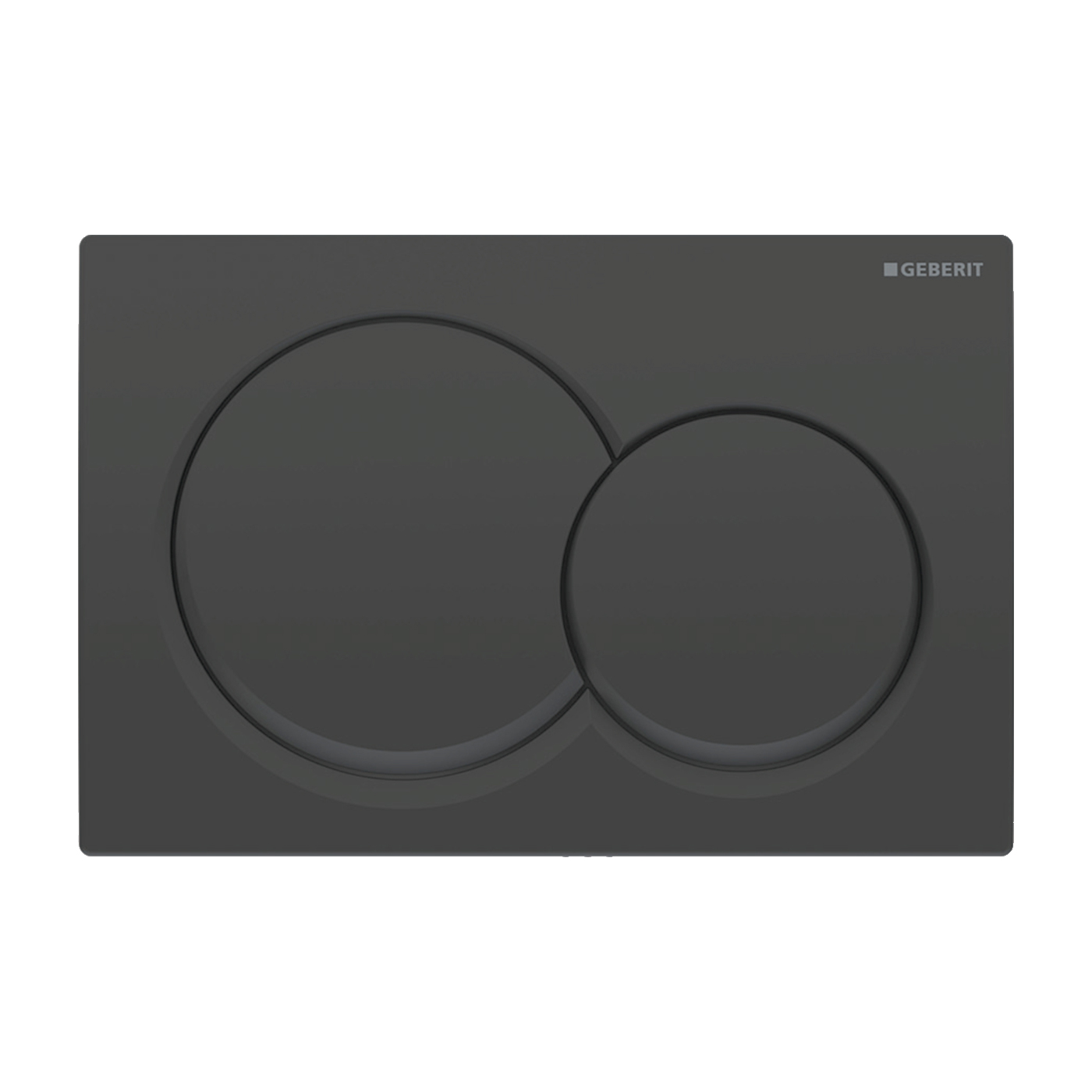

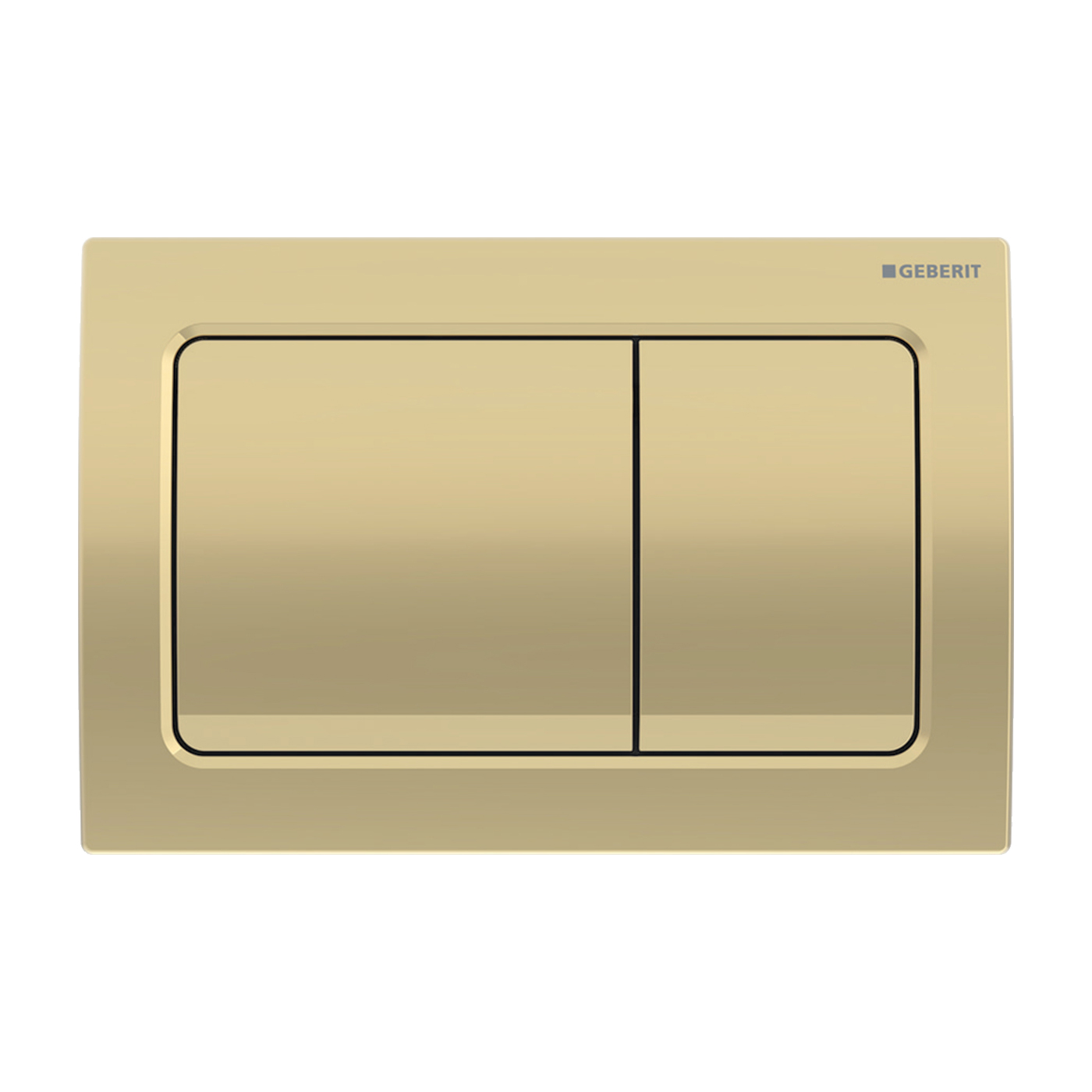

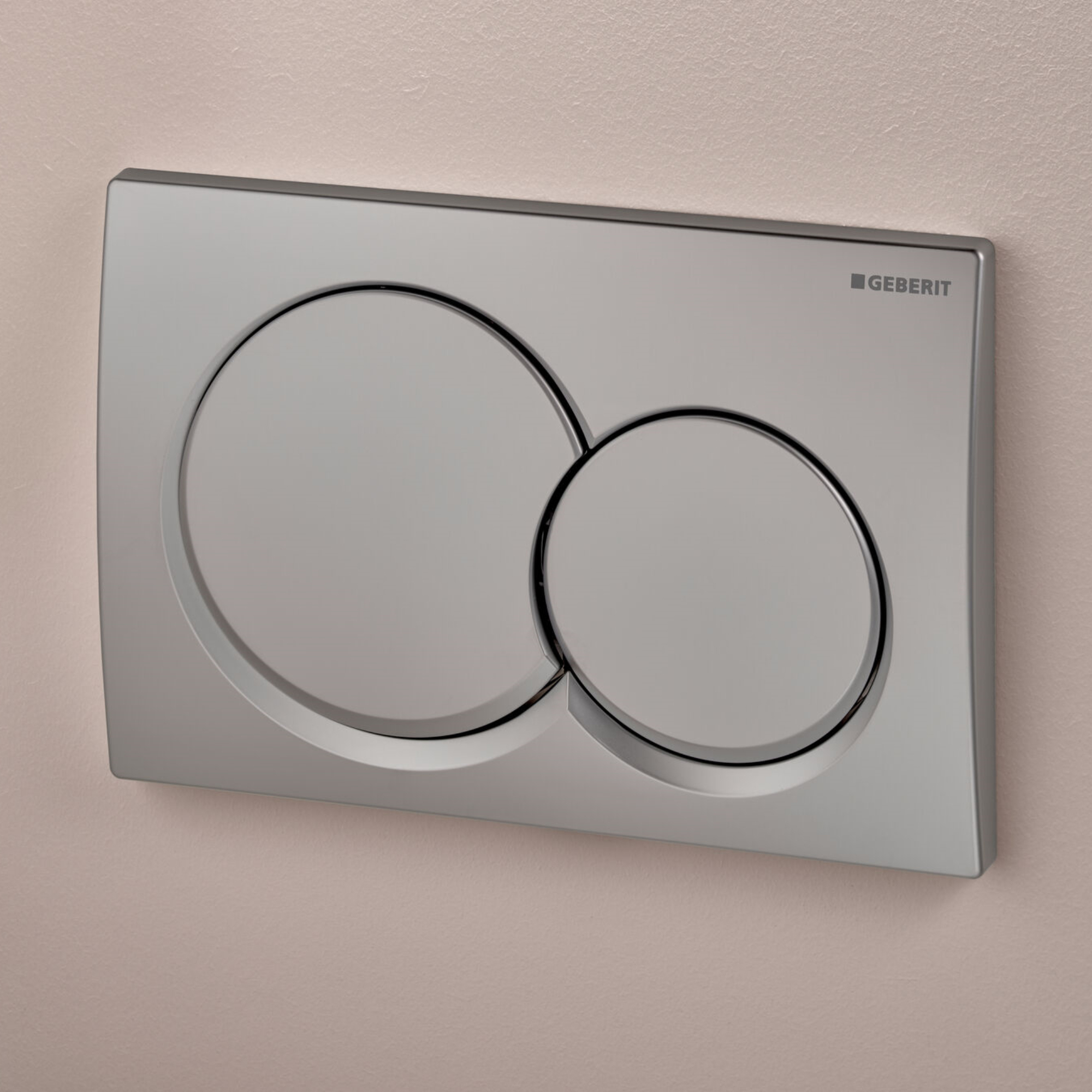

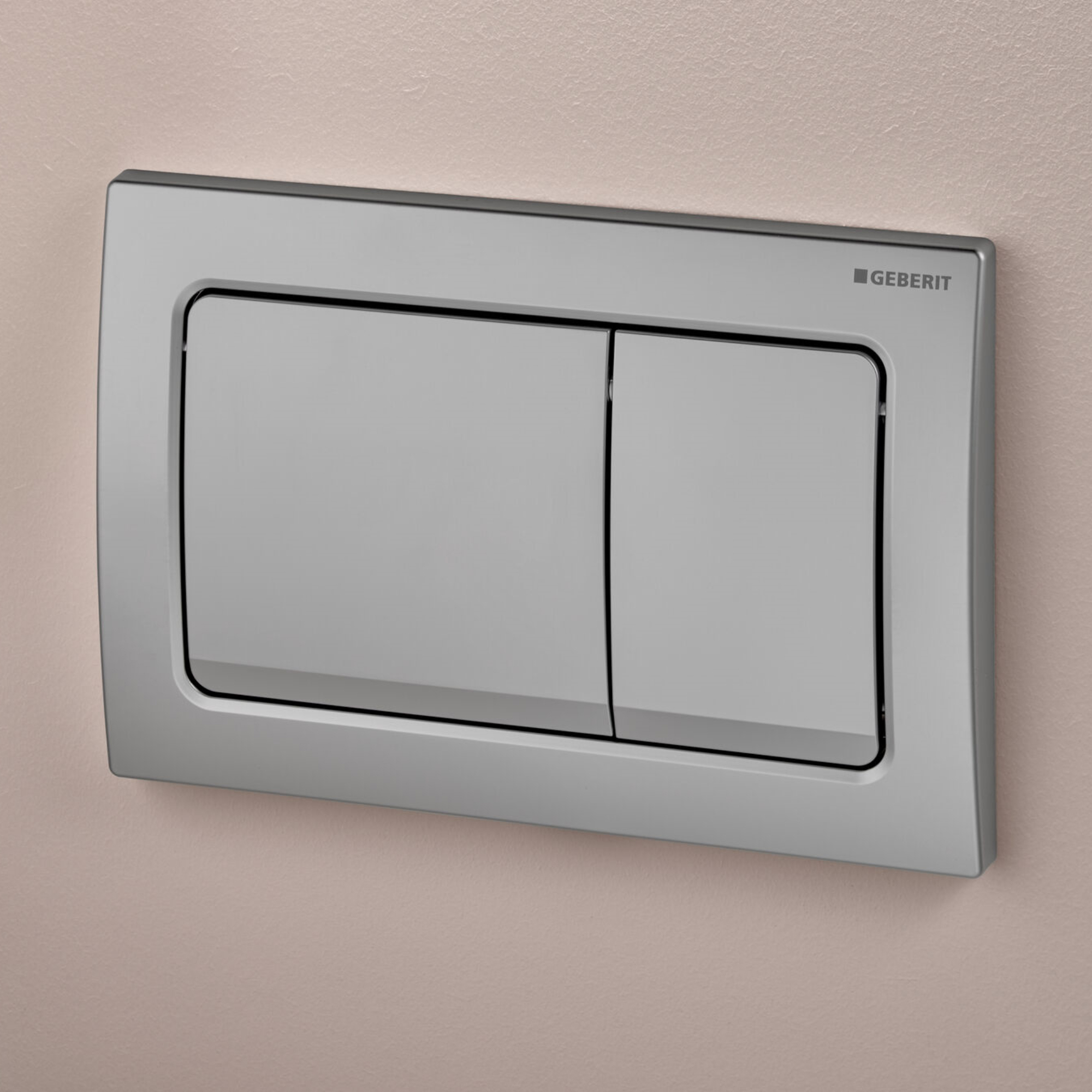

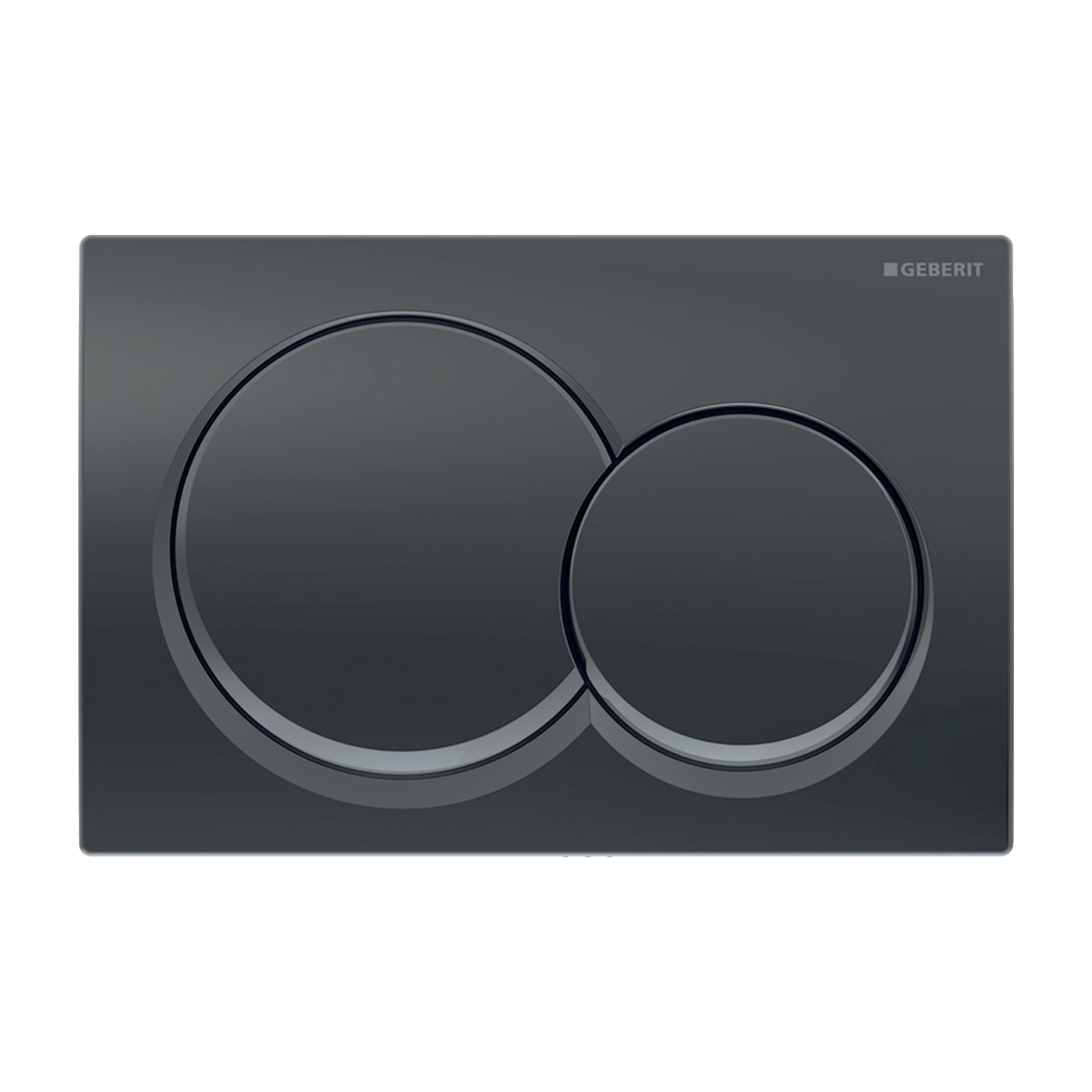

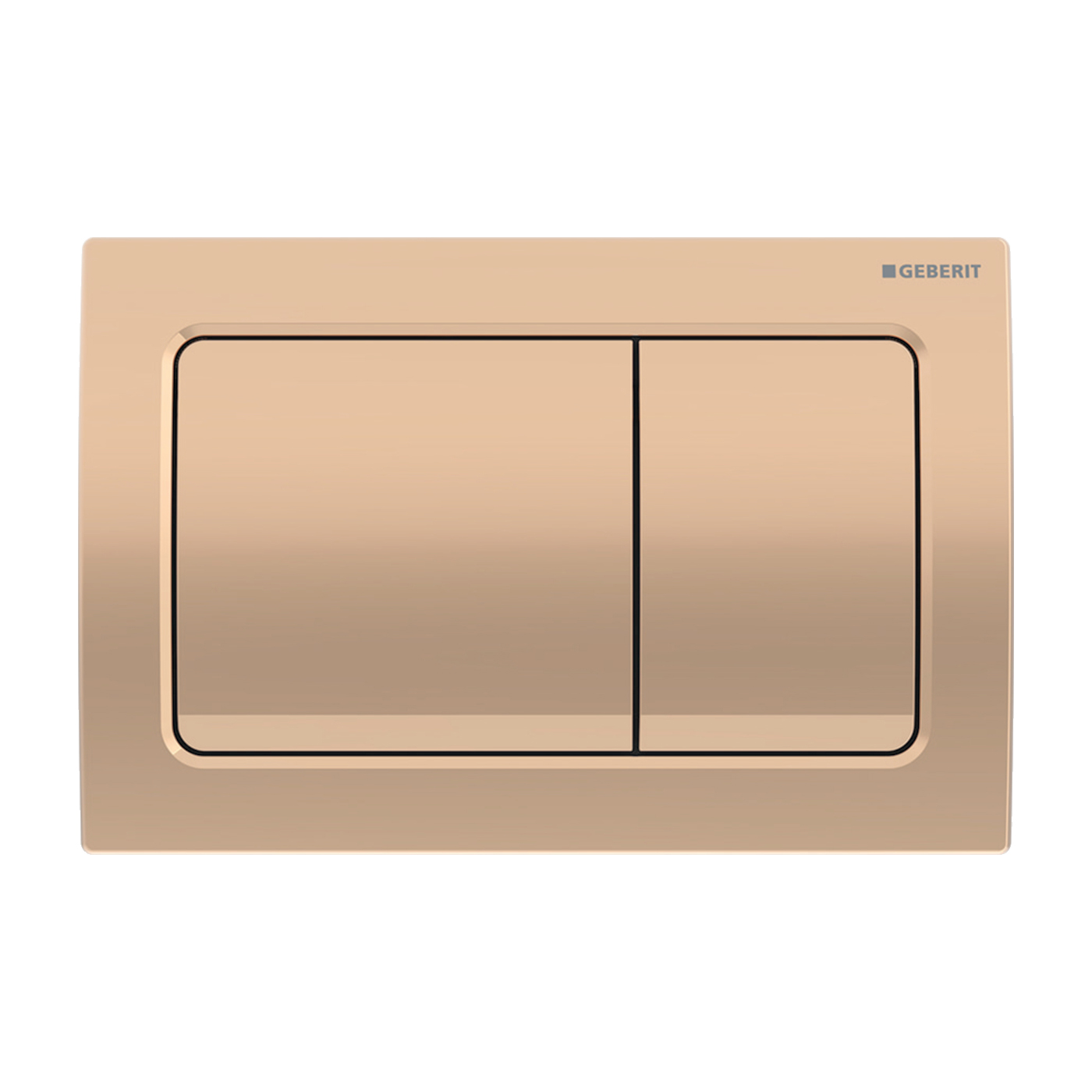

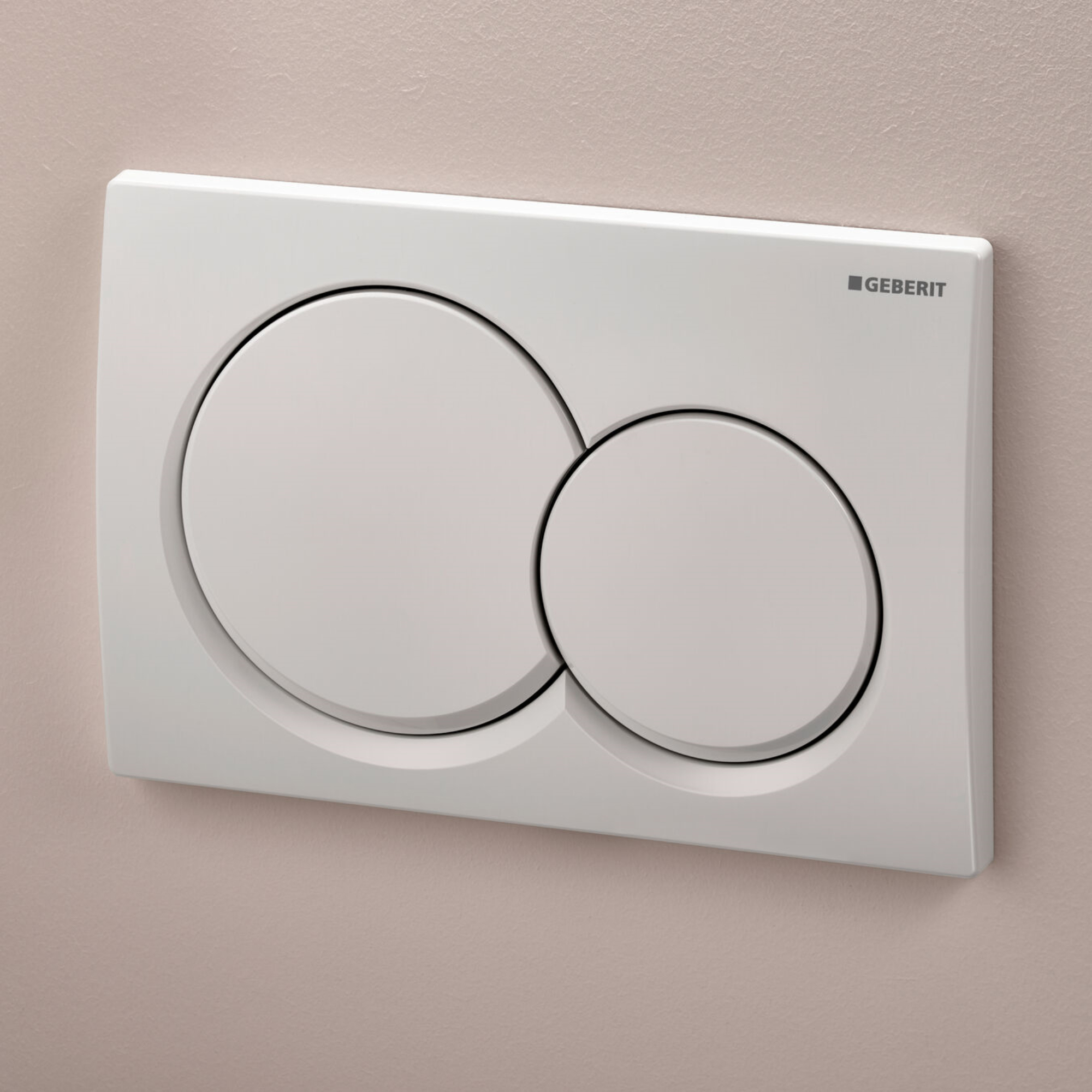

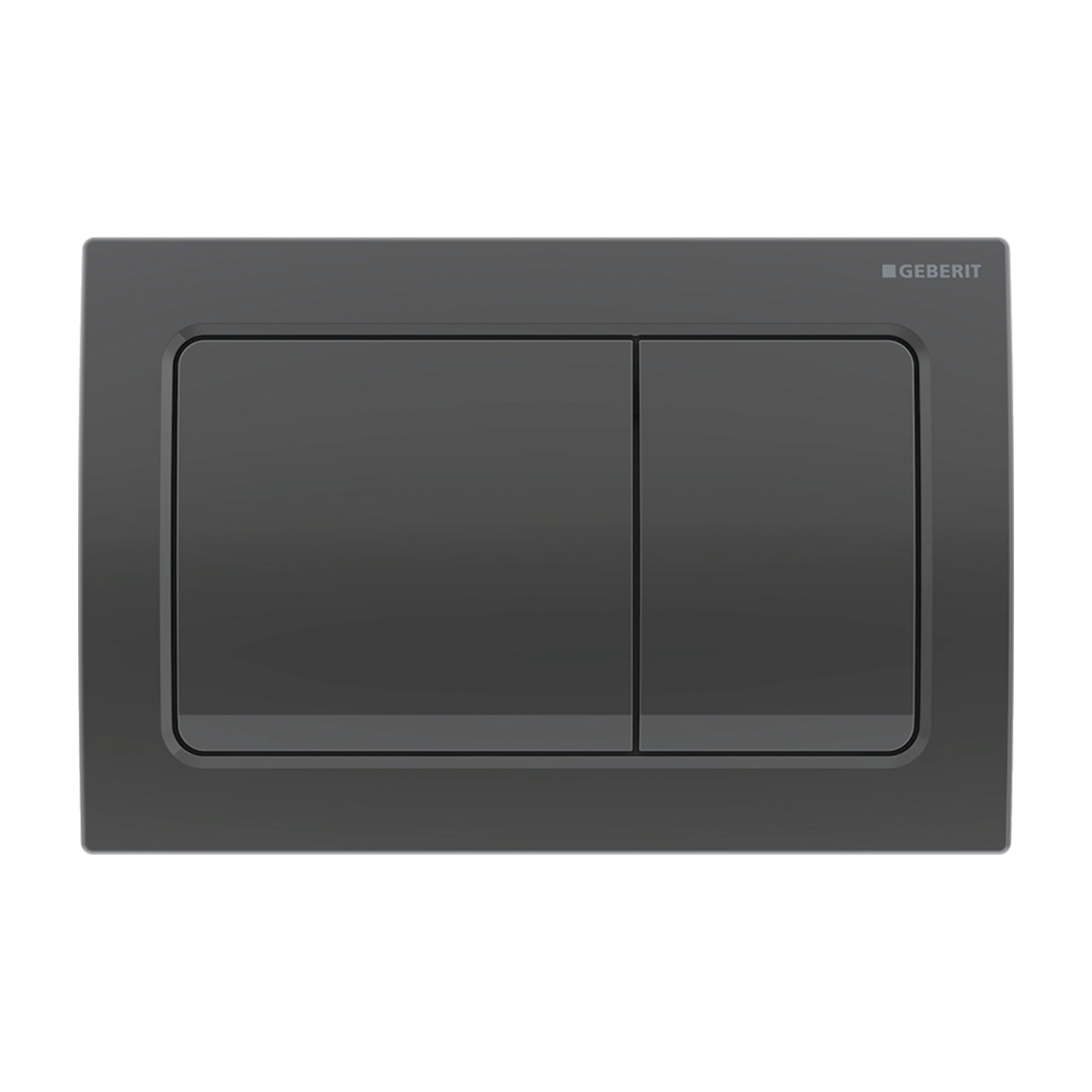

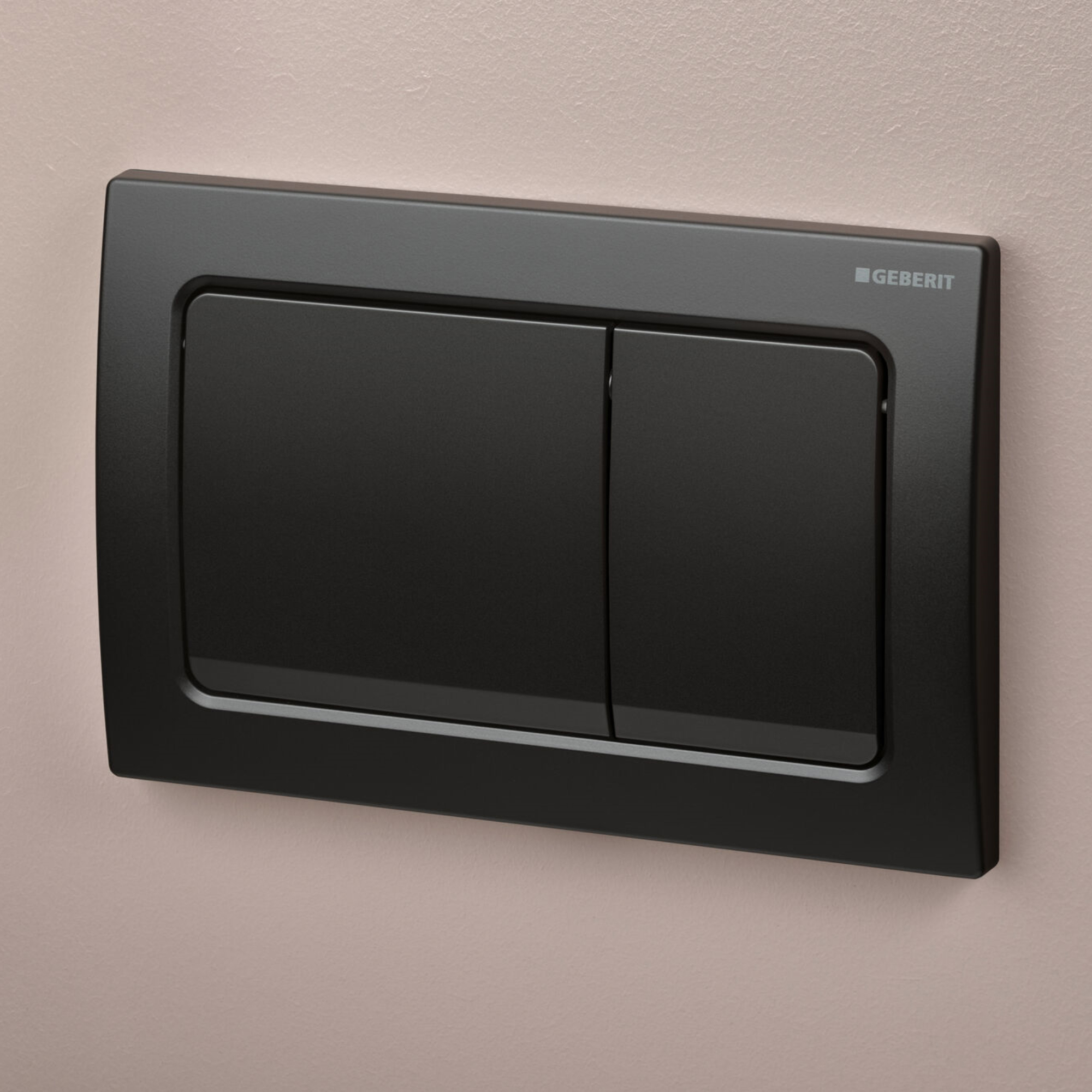

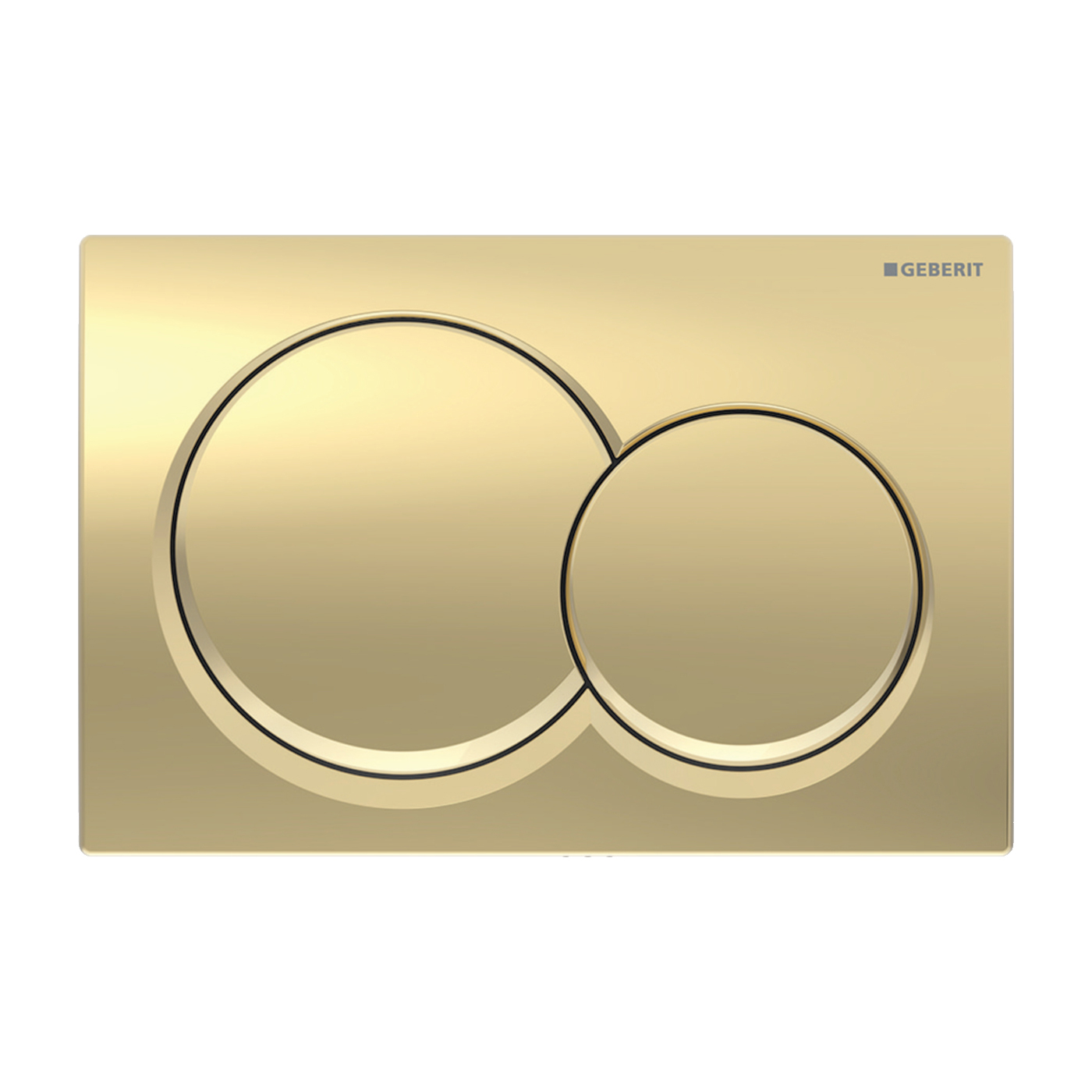

Combine with Geberit Alpha Flush Plates

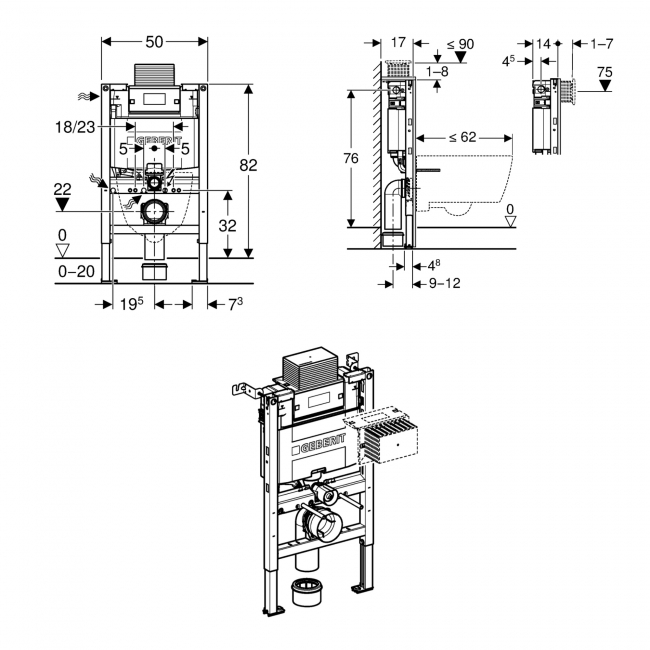

Space-Saving: Installation height of 820mm, making it ideal for compact bathrooms, ensuites & part-wall installations

Bundle Contents

• 1 x Geberit Alpha WC Frame with Cistern
• Geberit Water supply connection unit R 1/2, with integrated angle stop valve and adapter ring
• Geberit Protection box for service opening
• 2 x Geberit wall anchors and 2 x fixing brackets
• Geberit Connection set for WC, 90mm
• Geberit Connection bend 90 degree made of PE-HD, 90mm
• Geberit Adapter socket made of PE-HD, 90/110mm
• Geberit Fastening and protection materials

Cistern Features

• Dual Flush Technology: Choose between two flush volumes to conserve water
• Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
• Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments
• AquaClean Compatibility: Includes a conduit pipe for Geberit AquaClean shower toilets and an electrical connection fastening option
• WRAS approved
• Guarantee: 10 Year on Alpha and Concealed cisterns (25 Year on spare parts)

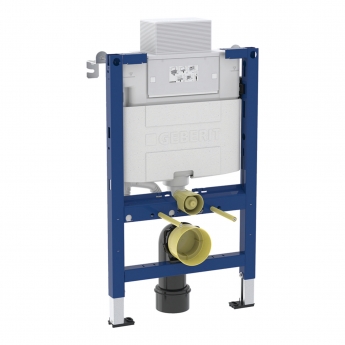

WC Frame Features

• Powder-coated self-supporting frame
• Galvanised leg supports protected against corrosion, foot plates made of plastic
• Tool-free connection bend mounting
• Cistern fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Top or front actuation
• Water supply connection on the rear or top centre
• Conduit pipe for Geberit AquaClean shower toilets & fastening option for electrical

Important Information

• Flush Plate sold separately (See the You May Need)
