Geberit Alpha 820mm Wall Hung WC Toilet Frame with Cistern and Alpha01 Chrome Round Flush Plate

This Geberit Alpha 820mm H Frame & Cistern with an Alpha01 Round Chrome Flush Plate provides an innovative concealed solution for wall-hung WCs in small spaces opening up opportunities when it comes to the design of your bathroom

Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas

Whether you're upgrading your ensuite, optimising a small space, or installing a wall-hung WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency

Space-Saving: Installation height of 820mm, making it ideal for compact bathrooms, ensuites & part-wall installations

Bundle Contents

• 1 x Geberit Alpha WC Frame with Cistern
• 1 x Geberit Alpha01 Round Dual Flush Plate Chrome
• Geberit Water supply connection unit R 1/2, with integrated angle stop valve and adapter ring
• Geberit Protection box for service opening
• 2 x Geberit wall anchors and 2 x fixing brackets
• Geberit Connection set for WC, 90mm
• Geberit Connection bend 90 degree made of PE-HD, 90mm
• Geberit Adapter socket made of PE-HD, 90/110mm
• Geberit Fastening and protection materials

Cistern Features

• Dual Flush System - Designed for efficient water usage, offering dual flush functionality via top or front actuation
• Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
• Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments
• AquaClean Compatibility: Includes a conduit pipe for Geberit AquaClean shower toilets and an electrical connection fastening option
• WRAS approved
• Guarantee: 10 Year on Alpha and Concealed cisterns, 5 year on Flush plate (25 Year on spare parts)

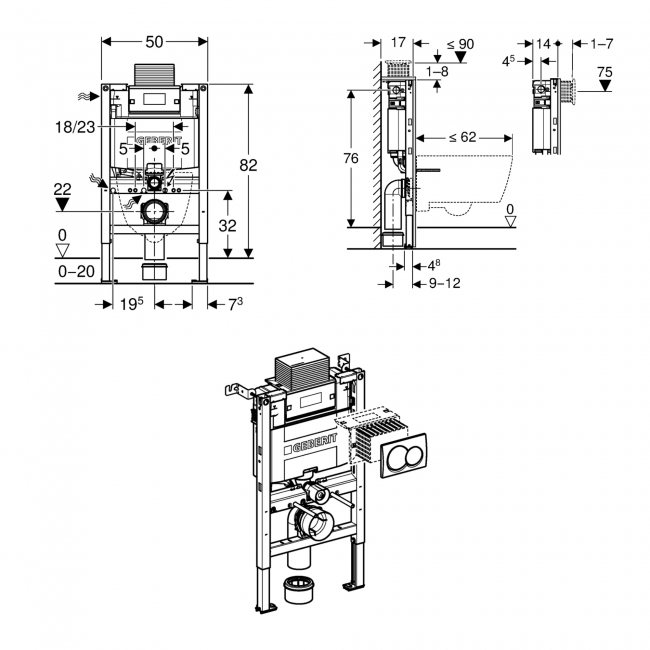

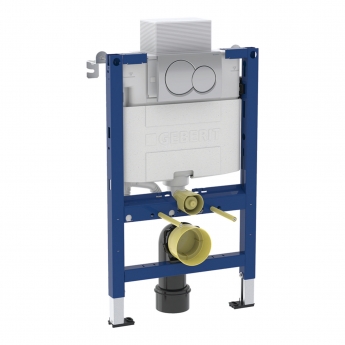

WC Frame Features

• Powder-coated self-supporting frame
• Galvanised leg supports protected against corrosion, foot plates made of plastic
• Tool-free connection bend mounting
• Cistern fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Top or front actuation
• Water supply connection on the rear or top centre
• Conduit pipe for Geberit AquaClean shower toilets & fastening option for electrical

Flush Plate Features

• Compatibility: Designed to work with all Geberit Alpha concealed cisterns
• Performance: Features a dual flush mechanism for enhanced water efficiency and convenience
• The simplistic yet elegant design of the Geberit Alpha01 Round Flush Plate range offers a subtle finishing touch to your bathroom
• Flush plate dimensions: 142mm H x 213mm W x 16mm D
