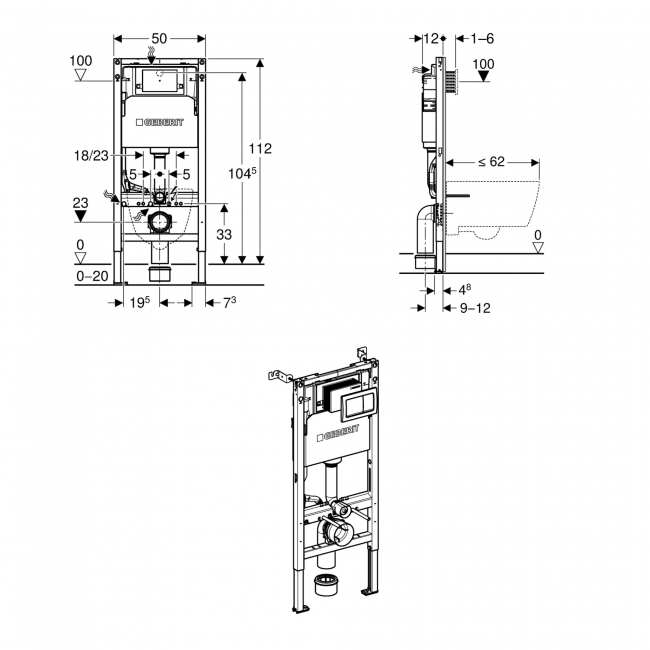

Geberit Alpha 1120mm Wall Hung WC Toilet Frame with Cistern and Alpha01 Chrome Square Flush Plate

The Geberit Alpha 1120mmFrame & Cistern for Wall-Hung WC with Alpha01 Square Chrome Flush Plate offers a robust and reliable solution for modern bathroom installations

This Geberit frame and cistern system is designed for part or room-height installations in drywall construction, providing a sleek, modern aesthetic and outstanding functionality for years to come

Designed for durability and ease of maintenance, this frame system is a product of over 60 years of Geberit's research and development in concealed cisterns

Bundle Contents

• 1 x Geberit Alpha WC Frame with Cistern
• 1 x Geberit Alpha01 Square Dual Flush Plate Chrome
• Geberit Water supply connection unit R 1/2, with integrated angle stop valve and adapter ring
• Geberit Protection box for service opening
• 2 x Geberit wall anchors and 2 x fixing brackets
• Geberit Connection set for WC, 90mm
• Geberit Connection bend 90 degree made of PE-HD, 90mm
• Geberit Adapter socket made of PE-HD, 90/110mm
• Geberit Fastening and protection materials

Cistern Features

• Dual Flush Technology: Choose between two flush volumes to conserve water
• Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
• Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments
• Easy Maintenance: Flush plate removal grants quick access to all essential components
• Strength: Engineered to support up to 400kg (63 stone), when used in combination with Geberit Wall-Hung pans
• Noise Control: Designed with acoustic solutions for quiet operation
• WRAS approved
• Guarantee: 10 Year on Alpha and Concealed cisterns, 5 year on Flush plate (25 Year on spare parts)

WC Frame Features

• Powder-coated self-supporting frame
• Galvanised leg supports protected against corrosion, foot plates made of plastic
• Tool-free connection bend mounting
• Cistern fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Water supply connection on the rear or top centre
• Conduit pipe for Geberit AquaClean shower toilets & fastening option for electrical

Flush Plate Features

• Compatibility: Designed to work with all Geberit Alpha concealed cisterns
• Performance: Features a dual flush mechanism for enhanced water efficiency and convenience
• The simplistic yet elegant design of the Geberit Alpha01 Square Flush Plate range offers a subtle finishing touch to your bathroom
• Flush plate dimensions: 142mm H x 213mm W x 16mm D
