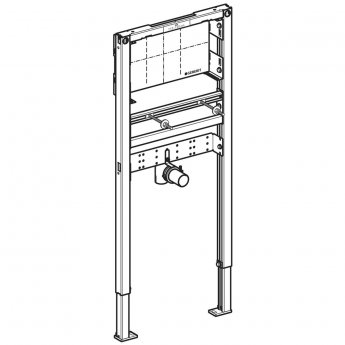

Geberit Duofix Basin Frame for Wall Mounted Tap 1120 - 1300mmH Blue

Product Features

• Self-supporting frame, powder-coated
• Galvanized feet
• Rotatable foot plates

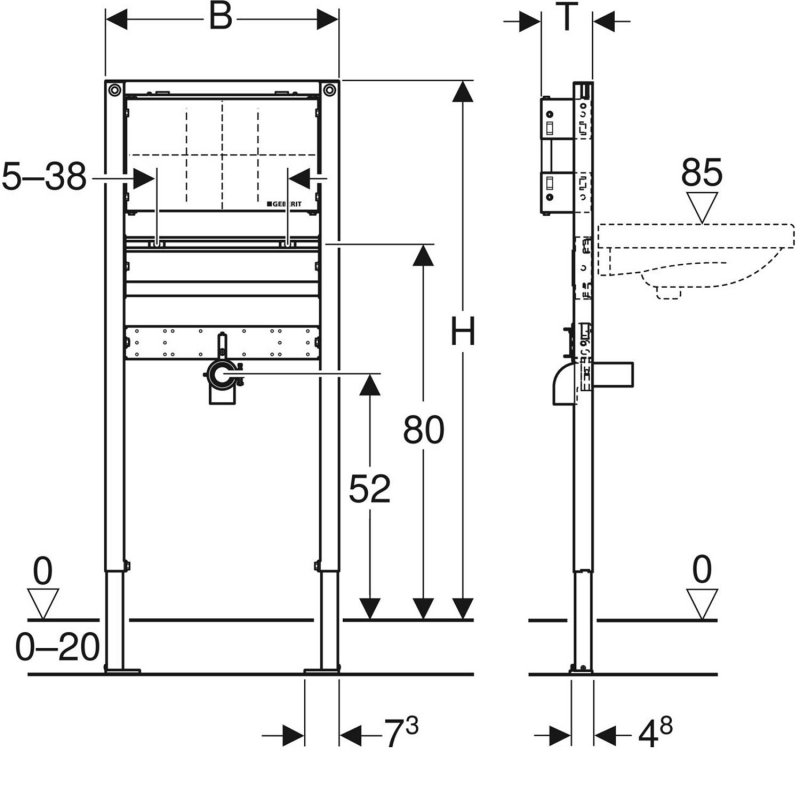

• Feet adjustable 0-20 cm
• Non-slip leg supports
• Installation in a load bearing stud wall
• Fastening distance for washbasin 5-38 cm
• Mounting plate adjustable in height and depth
• Mounting plate made of veneered wood, waterproof bonded
• Frame with 9mm drilling holes for fastening in wood frame construction
• Installation in a room-high Duofix system wall
• Fastening with adjustable height for outlet bend
• Supplied with Self-locking 50mm retractable feet for tool-free alignment
• Fastening for connection bend, height-adjustable and soundabsorbing
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3
• Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936
• Supplied with a 1 year guarantee from the manufacturer
