Intamix Low Pressure Thermostatic Mixing Valve with 22mm Compression

Reference: NT60007CP
  • Free Delivery*Approx 3 Working Days

  • Product Guarantee 1 Years GuaranteeOn this product

  • Write Review

    Write a Review

The Intamix low pressure under bath mixing valve is designed primarily for bath applications to meet the requirements of Building Regulations Part G. The new regulations state the temperature of water to a bath should be limited to no more 48°C. This allows for heat loss in metal baths. The Intamix low pressure thermostatic mixing valve is the ideal solution to the requirements of Building Regulations Part G.

Intamix Low Pressure Thermostatic 60007CP Features:


  • Thermostatic Protection
  • Single Piece Thermostatic Cartridge Construction
  • Automatic Shut Off In The Event Of Hot Or Cold Water Failure
  • High Flow Rate, Low Pressure Drops
  • Adjustable Outlet Temperature
  • Temperature Stability ± 2°C
  • 22mm Compression Connections With Integral Check Valves And Filters
  • TMV2 & WRAS Approved
  • Come with an extensive 1 year of guarantee from manufacturer

Intamix Low Pressure Thermostatic 60007CP Specifications:


Type Mixing Valve
Max Inlet Temperature 85°C
Max Pressure Inlet Differential 2:1
Max Working Pressure Static 14 Bar
Min Inlet Pressure Dynamic 0.2 Bar
Min Temp To Achieve Failsafe 10°C
Temperature Adjustment Range 30°C - 65°C
Manufacturer Part Number 60007CP

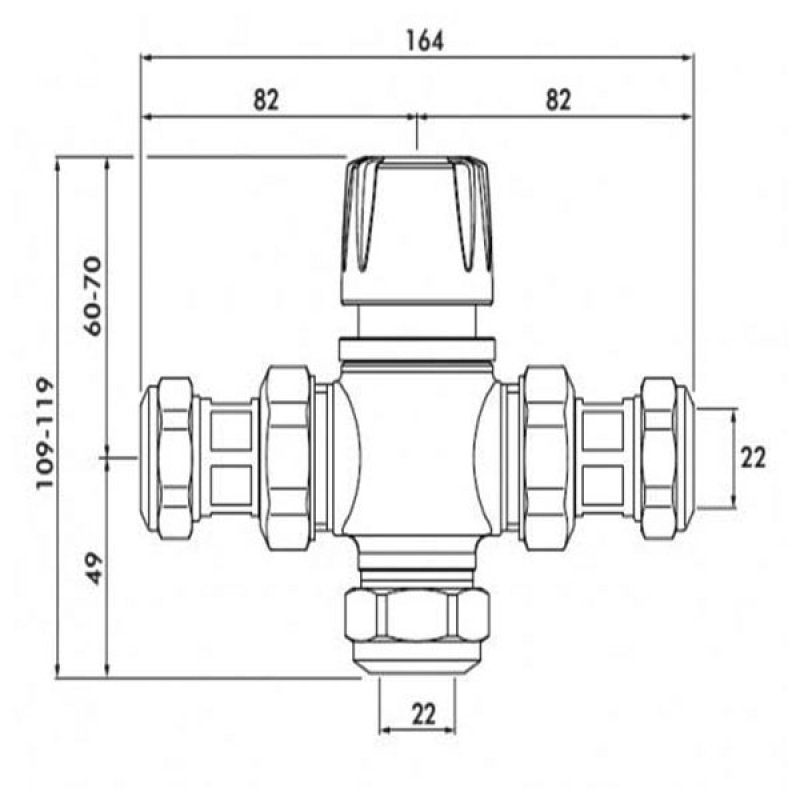

Dimensional Diagram - Intamix Low Pressure Thermostatic Mixing Valve with 22mm Compression
