Intamix Thermostatic Mixing Valve 15mm
Intamix Thermostatic Mixing Valve 15mm
Intamix Thermostatic Mixing Valve 15mm
Intamix Thermostatic Mixing Valve 15mm

Intamix Thermostatic Mixing Valve 15mm
Reference: NT40015CP

  • Free Delivery*Approx 3 Working Days

  • 1 Years GuaranteeOn this product

  • 1 Customer Reviews Write a Review

The Intamix Thermostatic Mixing Valve 15mm comes from Mix's exciting range of Insta. The Intatec range of 15mm and 22mm thermostatic mixing valves is designed primarily for single outlet use. It delivers safe, blended hot water to taps, showers, bidets and other water outlets, making it ideal for use in hospitals, schools and leisure centres.

Intamix Mix Thermostatic 40015CP Features:


  • One valve to suit all applications
  • One Piece Cartridge Construction for ease of maintenance and replacement
  • High flow rates with Low Pressure drops
  • 15mm & 22mm versions available
  • TMV3 approved - Complies with NHS Estate D08 & BS7942: 2000
  • TMV2 approved - Complies with BSEN1111 & BSEN1287: 1999
  • Building Regulations Part G compliant
  • Robust and Reliable
  • Easy installation
  • Integral Check Valves and Strainers
  • Available with isolation ball valves and test ports
  • WRAS Approved
  • Integral Check Valves and Strainers
  • Anti tamper proof head
  • Comes with 1 Year Guarantee

Intamix Mix Thermostatic 40015CP Specifications:


Type Mixing Valve
Height 98mm
Width 140mm/146mm
Depth 15mm
Max Inlet Temperature 85°C
Max Pressure Inlet Differential 5:1
Max Working Pressure Static 10 Bar
Min Inlet Pressure Dynamic 0.2 Bar
Min Temp To Achieve Failsafe 10°C
Temperature Adjustment Range 30°C - 50°C
Temperature Stability ± 2°C
Collection Mix Thermostatic
Manufacturer Part Number 40015CP

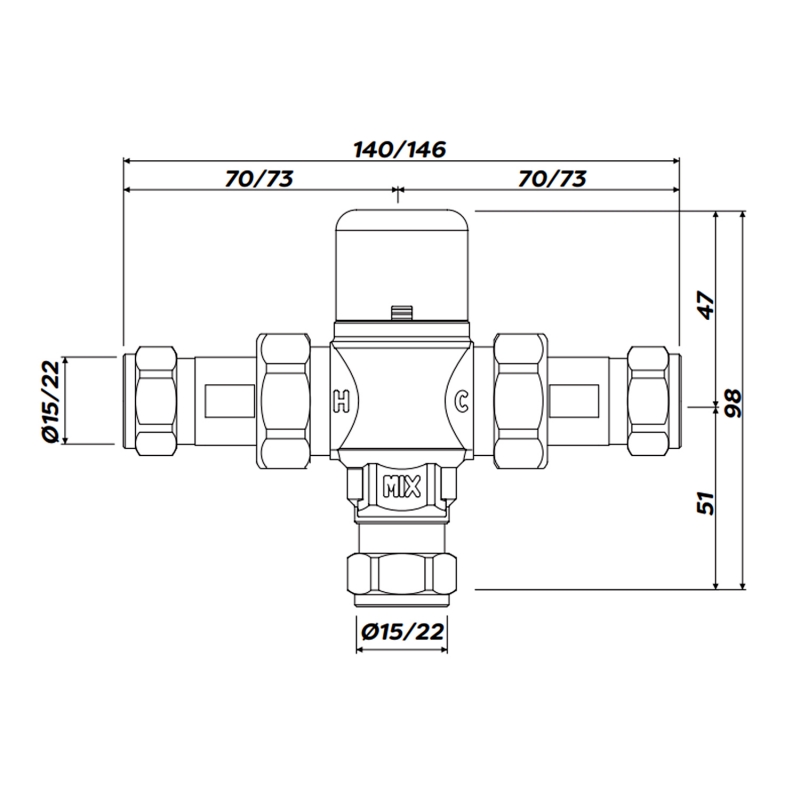

Dimensional Diagram - Intamix Thermostatic Mixing Valve 15mm
