Wetroom Innovations PCS Underlay Plus Centre Drain Wetroom Floor Former 800mm x 800mm Wetroom Innovations PCS Underlay Plus Centre Drain Wetroom Floor Former 800mm x 800mm
Wetroom Innovations PCS Underlay Plus Centre Drain Wetroom Floor Former 800mm x 800mm Wetroom Innovations PCS Underlay Plus Centre Drain Wetroom Floor Former 800mm x 800mm

Wetroom Innovations PCS Underlay Plus Centre Drain Wetroom Floor Former 800mm x 800mm

Quick Code: 2831801
Ref: WTDTT80
Wetroom Innovations
£180.95 Inc. VAT

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Other Sizes with Different Waste Outlet Position:

Wetroom Innovations PCS Underlay Plus DTT80 Wet Room Former Features:

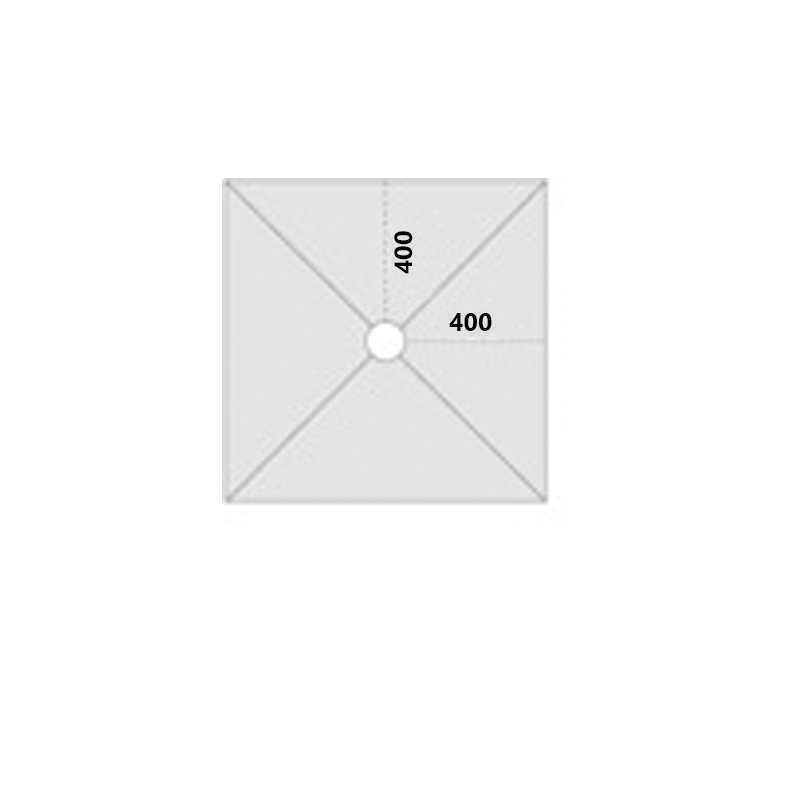

  • Please see our dimension tab for the waste outlet position
  • Suitable Horizontal or Vertical drain kit sold separately (See the You May Need)
  • Epoxy cement faced with rigid foam core to fit on boarded or solid floors
  • Underlay can be used with the smallest mosaic tiles but are not suitable for vinyl
  • For use with tiled floors only
  • Superior extruded XPS wetroom tray with a reinforced hardwearing cement polymer coating
  • High compressive strength permits the use of even tiny 20 x 20mm mosaic tiles (minimum 8mm tile thickness)
  • Adjustable grid height suitable for 8mm - 15mm floor tiles
  • Factory fitted gasket provides secondary waterproofing
  • Unique grate/frame configuration provides secondary under tile drainage
  • Lightweight and easy to install
  • Can be cut to size using only a handsaw
  • Insulating thermal properties reduce heat loss
  • Must be fully supported with no cavities
  • Supplied with a lifetime guarantee from the manufacturer

Wetroom Innovations Underlay Plus Video:




Wetroom Innovations PCS Underlay Plus DTT80 Wet Room Former Specifications:


Popular Sizes 800mm x 800mm
Former Width 800mm
Former Depth 800mm
Thickness 22mm
Tray Waste Location Centre
Floor Type Tiled
Shape Square
Brand Wetroom Innovations
Collection PCS Underlay Plus
Style Modern
Market Domestic / Commercial
Manufacturer Part Number(s) DTT80


Suitable PCS Underlay Plus Horizontal Drain Kit
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Stainless Steel Grate
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Stainless Steel Grate
(WTJ0216SS)
£81.95
In Stock
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Tile Insert Grate
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Tile Insert Grate
(WTJ0216T)
£117.95
In Stock
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Matt Black Grate
Wetroom Innovations PCS Underlay Plus Horizontal Drain Kit with Matt Black Grate
(WTJ0216MB)
£157.95
In Stock
Suitable PCS Underlay Plus Vertical Drain Kit
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Stainless Steel Grate
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Stainless Steel Grate
(WTJ0217SS)
£81.95
In Stock
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Tile Insert Grate
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Tile Insert Grate
(WTJ0217T)
£115.95
In Stock
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Matt Black Grate
Wetroom Innovations PCS Underlay Plus Vertical Drain Kit with Matt Black Grate
(WTJ0217MB)
£157.95
In Stock
Suitable Tanking Kit
Wetroom Granfix 8k Liquid Tanking Kit
(WTTK100)
£87.95
In Stock
How do I finance my purchase?
  1. Add the items you want to add your basket and proceed to checkout.
  2. In payment options select "Pay by Paypal Credit", you can then select the finance option which you require.
  3. You will be asked to complete a simple online application, it's quick, easy and you'll get the decision within a matter of seconds. There is NO paperwork to be posted and NO physical signature required!

Interest Free Credit Calculator

Enter the total amount you want to spend.

*Finance available on all orders over £99. Prices given representative as part of larger order.

For further information on our finance partnership, please visit our finance page.

Product Documents
Brochure
Type : PDF Size : 6.85 MB
Fitting Instructions
Type : PDF Size : 2.31 MB
