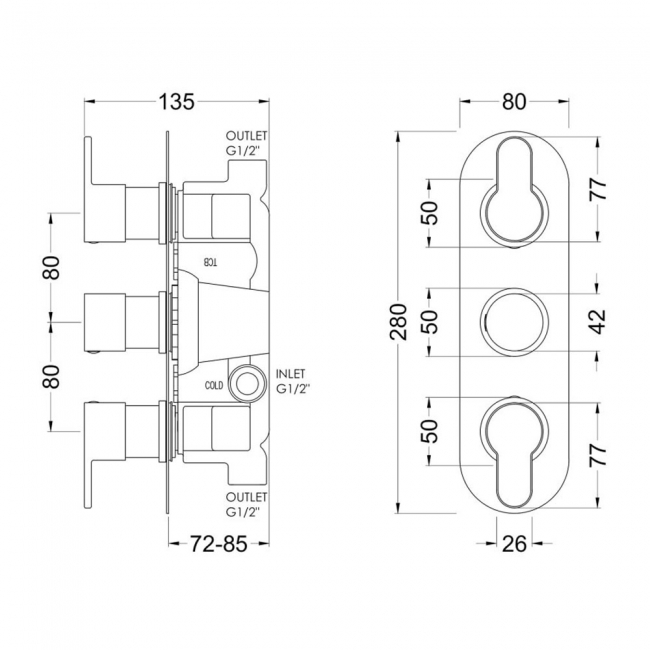

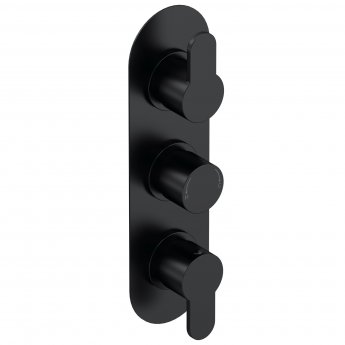

Nuie Arvan Thermostatic Concealed Shower Valve Triple Handle - Matt Black | Product Image Nuie Arvan Thermostatic Concealed Shower Valve Triple Handle - Matt Black  | Dimension Image
Nuie Arvan Thermostatic Concealed Shower Valve Triple Handle - Matt Black | Thumbnail Image Nuie Arvan Thermostatic Concealed Shower Valve Triple Handle - Matt Black

Nuie Arvan Thermostatic Concealed Shower Valve Triple Handle - Matt Black

Quick Code: 2831280
Ref: PMARV4TR02
Nuie | Brand Logo
£219.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £18.33 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 2 outlets
  • Minimalist sleek design with matt black finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Made In Britain
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 degree and replace
  • Manufactured from high quality brass & ABS
  • WRAS approved product
  • 1/4 turn ceramic disc technology for long life and smooth operation
  • During installation extra care must be taken to avoid damaging the fittings
  • Guarantee : 3 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Important Information

  • Shower Kit sold separately (See the You May Need)

Shower TypeThermostatic
Shower Valve Controls3
Valve PositionConcealed
Valve ShapeOval
Handle TypeKnob/Lever
Outlets2
Min Pressure0.1 Bar
Shower Valve Height280mm
Shower Valve Width80mm
Shower Valve Depth72-85mm
Inlet Connection Size1/2 BSP
Outlet Connection Size1/2 BSP
System Suitability-
MaterialBrass
ColourBlack
StyleModern
MarketDomestic
Flow Rate - 0.1 Bar5.5 l/min
Flow Rate - 0.2 Bar7.1 l/min
Flow Rate - 0.5 Bar14 l/min
Flow Rate - 1.0 Bar20 l/min
Flow Rate - 2.0 Bar29 l/min
Flow Rate - 3.0 Bar44 l/min
WRAS ApprovedYes
WRAS Approval Number250602040
TMV2 Approval Number-
TMV3 Approval Number-
Valve Orientation-
BrandNuie
CollectionArvan
EAN Barcode5056462623030
Manufacturer Part Number(s)ARV4TR02

Shower Valve Fitting Instructions
Type : PDF Size : 3.48 MB
Guarantee Policy
Type : PDF Size : 319.11 KB
Product Datasheet
Type : PDF Size : 1.05 MB
Brochure-25
Type : PDF Size : 38.90 MB
