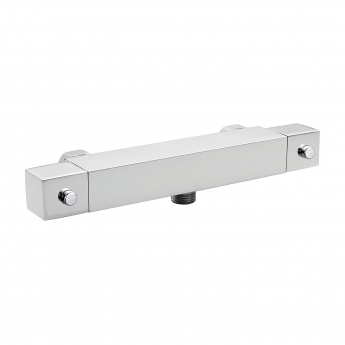

Nuie Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome
Nuie Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome

Nuie Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome

£58.95

Inc. VAT
£146.00 SAVE £87.05 In Stock

The Nuie Square Thermostatic Bar Shower Valve, Bottom Outlet, Chrome is a model from the popular range of thermostatic bar valves and mixers, part of the Nuie bathroom collection. This thermostatic shower valve includes accurate flow control, full anti-scald protection, excellent flow rates and suitability for all plumbing systems. Supplied complete with a superb 5 year guarantee for total peace of mind, you can be assured that you are receiving an item of the highest quality.

Nuie Square JTY316 Shower Valve Bottom Outlet Features:


  • Thermostatically controlled
  • Hot supply on the left hand side
  • Stylish bar shower valve with bottom outlet
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • Patented cartridge is highly resistant to calcium build-up
  • Suitable for combi-boilers and gravity-fed systems
  • Suitable for unvented mains pressure systems
  • Suitable for use on the majority of plumbing systems
  • Superb flow rates can be achieved, even with low pressures
  • Suitable for shower pumps
  • Suitable for low pressure systems - 0.1 bar pressure and above
  • Part of the popular range of thermostatic bar shower valves from Nuie
  • Manufactured from high quality brass & ABS
  • Complete with a 5 year guarantee from Nuie

Nuie Square JTY316 Shower Valve Bottom Outlet Specifications:


Valve Type Thermostatic
Valve Siting Bar
Diverter No
Valve Controls 2
Handle Type Knob
Mounting Type Wall

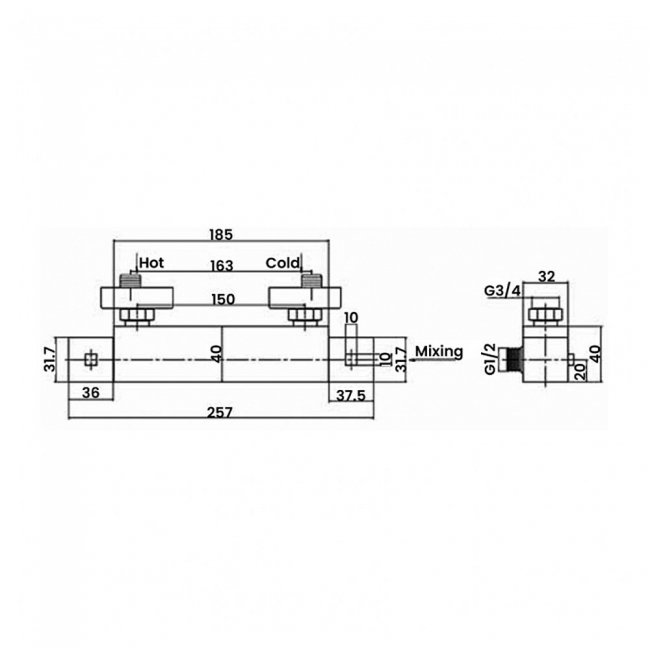

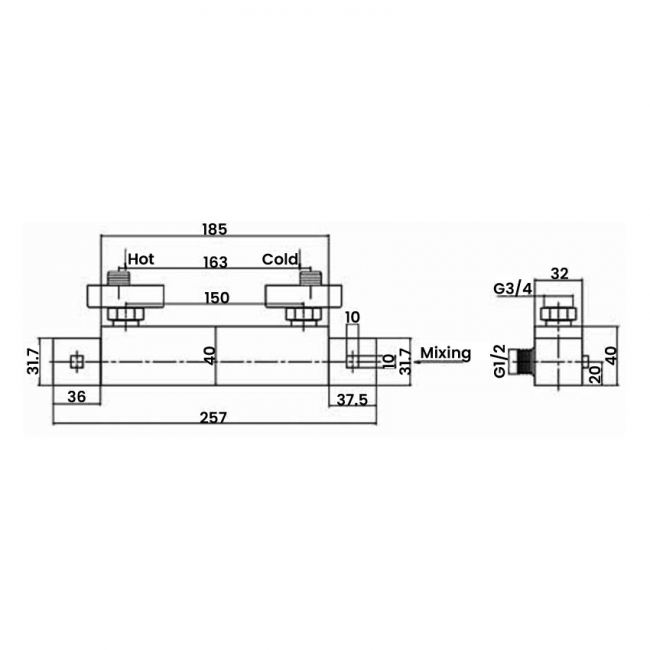

Connection Centres 163mm
Width 257mm
Height 32mm
Depth 40mm
Material Brass/ABS
Finish Chrome
Backplate No
Minimum Pressure 0.5 Bar
Weight 1.46 kg
Style Contemporary
Flow Rate - 0.1 Bar 4 l/min
Flow Rate - 0.5 Bar 9 l/min
Flow Rate - 1.0 Bar 14 l/min
Flow Rate - 2.0 Bar 21 l/min
Flow Rate - 3.0 Bar 26 l/min
EAN Barcode 5055146199281
Manufacturer Part Number JTY316
