Nuie Volt Concealed Shower Valve With Diverter Dual Handle - Chrome Nuie Volt Concealed Shower Valve With Diverter Dual Handle - Chrome
Nuie Volt Concealed Shower Valve With Diverter Dual Handle - Chrome Nuie Volt Concealed Shower Valve With Diverter Dual Handle - Chrome

Nuie Volt Concealed Shower Valve With Diverter Dual Handle - Chrome

Quick Code: 2791667
Ref: HAA3077
Nuie
£252.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £21.08 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 2 outlets
  • Thermostatically controlled shower valve
  • Minimalist sleek design
  • Square design for an ultra modern look
  • Patented Valquest cartridge - Made in Britain
  • Can be fitted vertically or horizontally
  • With built in outlet
  • Accurate flow control
  • Thermostatic control to +/- 2 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • Suitable for use on the majority of plumbing systems
  • Twin handle valve with diverter
  • Operates two accessories separately or simultaneously
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Excellent flow rates, even at low pressure
  • Manufactured from high quality brass & ABS
  • Simply remove the cartridge turn 180 degree and replace
  • Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information
Show More

Valve TypeThermostatic
Shower Valve PositionConcealed
DiverterYes
Valve Controls2
Shower Valve Outlet2
Handle TypeLever
Mounting TypeWall

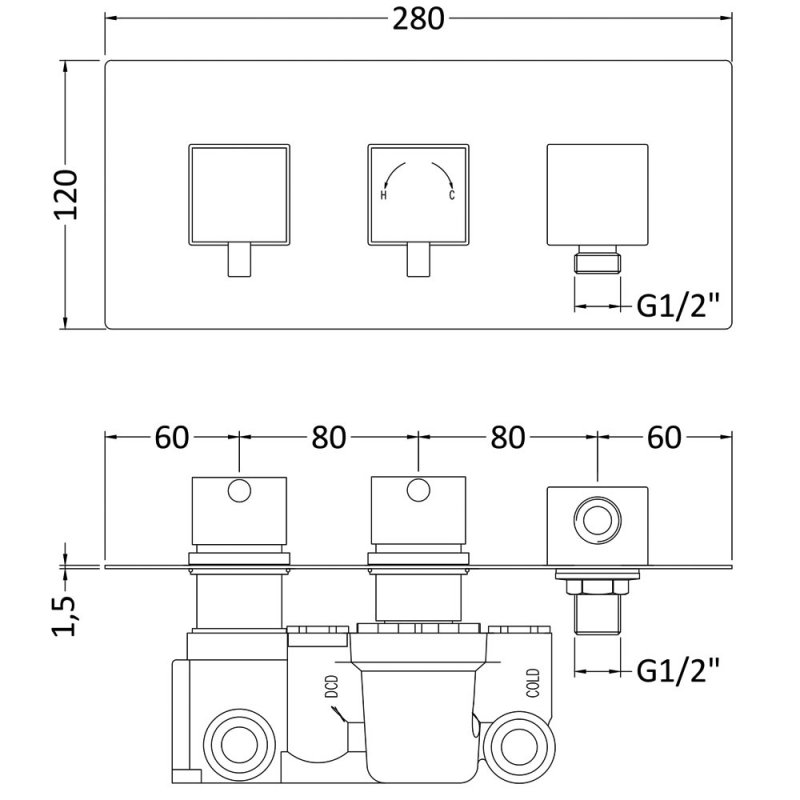

Connection Centres125mm
Inlet Connection Size22 mm (3/4 BSP)
Height120mm
Width280mm
MaterialBrass/ABS
Minimum Pressure0.2 Bar
BandNuie
ColourChrome
Weight4.05 Kg
StyleModern
MarketDomestic
WRAS ApprovedYes
WRAS Approval Number250602040
EAN Barcode5055275832929
Manufacturer Part NumberA3077
Flow Rate @ 0.5 Bar13 l/min
Flow Rate @ 1.0 Bar17 l/min
Flow Rate @ 2.0 Bar24 l/min
Flow Rate @ 3.0 Bar27 l/min
Show More

Guarantee Policy
Type : PDF Size : 319.11 KB
Shower Valve Fitting Instructions
Type : PDF Size : 3.46 MB
Shower Valve Datasheet
Type : PDF Size : 1.05 MB
Brochure-25
Type : PDF Size : 38.90 MB
