Nuie Windon Twin Square Thermostatic Concealed Shower Valve - Brushed Bronze

Quick Code: 2847413
Ref: PMWIN15TW01
Nuie | Brand Logo
£186.15 Inc. VAT

5% price drop on Nuie & Hudson Reed - ends 02/06/26

Was: £195.95

PayPal Credit
Spread the cost with 12 monthly payments of £15.51 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Square design for an ultra modern look
  • WRAS Approved Product
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 degree and replace
  • Manufactured from high quality brass & ABS
  • Guarantee : 3 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Important Information

  • Shower Kit sold separately (See the You May Need)

Shower TypeThermostatic
Shower Valve Controls2
Shower Valve PositionConcealed
Valve ShapeRectangular
Handle TypeSquare/Lever
Shower Valve Outlets1
Minimum Pressure0.1 Bar

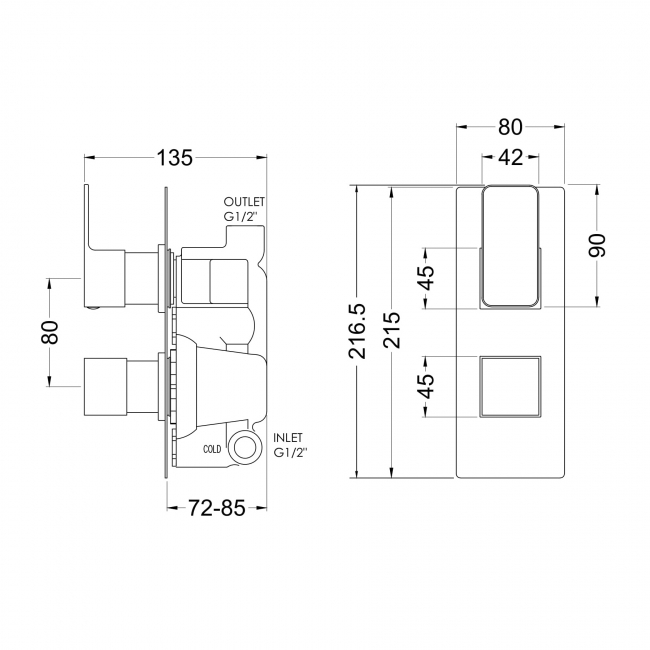

Shower Valve Height216.5mm
Shower Valve Width80mm
Shower Valve Depth72-85mm
Inlet Connection Size1/2 BSP
Outlet Connection Size1/2 BSP
Valve OrientationVertical / Horizontal
MaterialABS,Brass
ColourBrushed Bronze
BrandNuie
CollectionWindon
StyleModern
MarketDomestic
Weight2.57 kg
WRAS Approval Number2204707
EAN Barcode5056678478905
Manufacturer Part Number(s)WIN15TW01
Flow Rate - 0.1 Bar5.5 l/min
Flow Rate - 0.5 Bar14 l/min
Flow Rate - 1.0 Bar20 l/min
Flow Rate - 2.0 Bar29 l/min
Flow Rate - 3.0 Bar44 l/min
