Nuie Windon Thermostatic Concealed Shower Valve Dual Handle - Brushed Brass

Quick Code: 2832172
Ref: PMWIN8TW01
Nuie | Brand Logo
£186.15 Inc. VAT

5% price drop on Nuie & Hudson Reed - ends 02/06/26

Was: £195.95

PayPal Credit
Spread the cost with 12 monthly payments of £15.51 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 1 outlet
  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Square design for an ultra modern look
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 degree and replace
  • Manufactured from high quality brass & ABS
  • WRAS approved product
  • TMV2 Approved
  • 1/4 turn ceramic disc technology for long life and smooth operation
  • During installation extra care must be taken to avoid damaging the fittings
  • Guarantee : 3 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Important Information

  • This product is brushed brass plated, not made of 100% brushed brass
  • Shower Kit sold separately (See the You May Need)

Shower TypeThermostatic
Shower Valve Controls2
Valve PositionConcealed
Valve ShapeRectangular
Handle TypeSquare/Lever
Outlets1
Min Pressure0.1 Bar
Shower Valve Height215mm
Shower Valve Width80mm
Shower Valve Depth72-85mm
Inlet Connection Size1/2 BSP
Outlet Connection Size1/2 BSP
MaterialBrass/ABS
ColourBrushed Brass
StyleModern
MarketDomestic
Flow Rate - 0.1 Bar5.5 l/min
Flow Rate - 0.2 Barl/min
Flow Rate - 0.5 Bar14 l/min
Flow Rate - 1.0 Bar20 l/min
Flow Rate - 2.0 Bar29 l/min
Flow Rate - 3.0 Bar44 l/min
WRAS ApprovedYes
WRAS Approval Number250602040
TMV2 ApprovedYes
TMV2 Approval Number2603035
BrandNuie
CollectionWindon
EAN Barcode5056462623139
Manufacturer Part Number(s)WIN8TW01

Brochure-26
Type : PDF Size : 43.73 MB
Shower Valve Fitting Instructions
Type : PDF Size : 3.46 MB
Guarantee Policy
Type : PDF Size : 319.11 KB
Product Datasheet
Type : PDF Size : 220.72 KB

Recommended Shower Kit

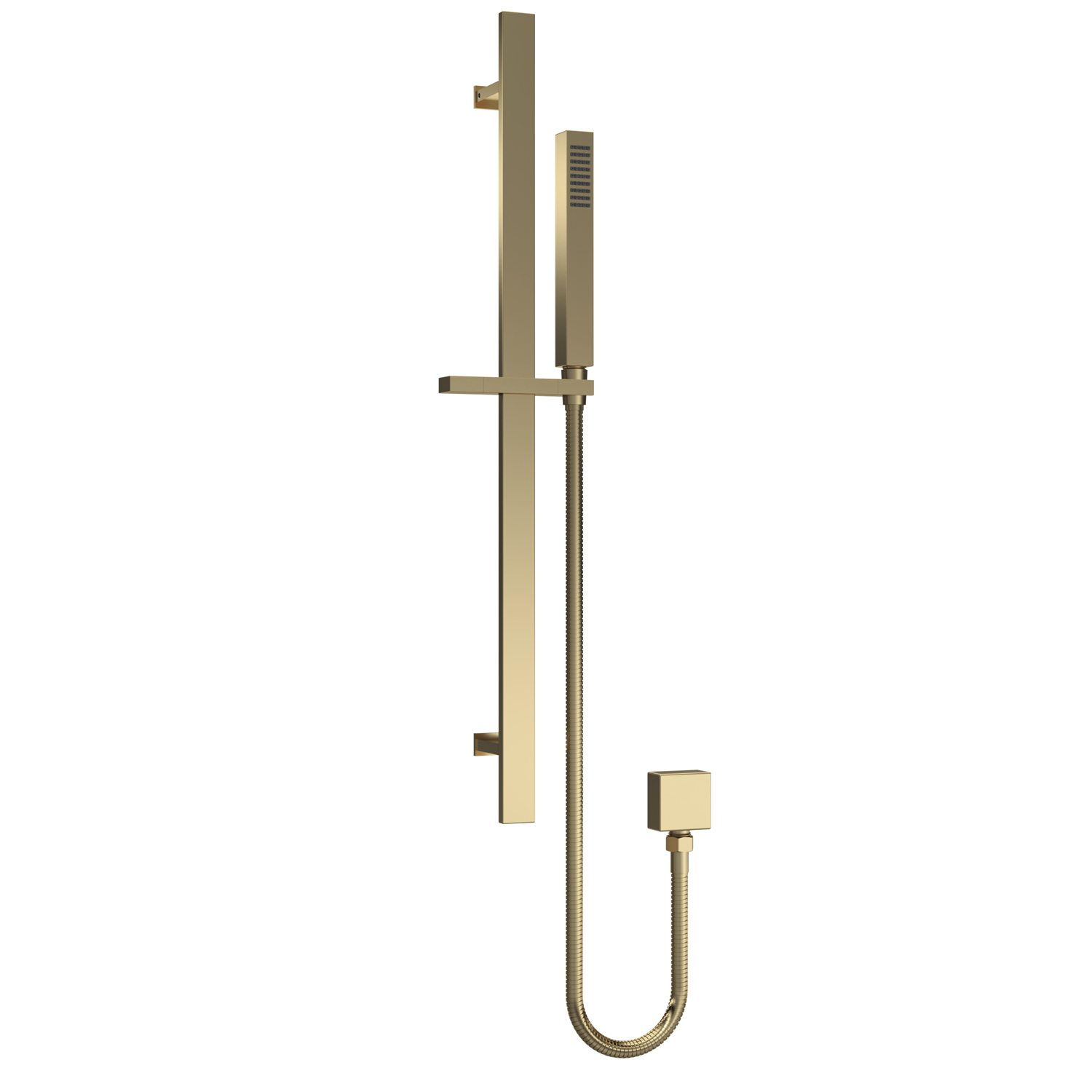

Nuie Windon Square Slider Rail Shower Kit with Outlet Elbow - Brushed Brass
(PMA8167)
£155.16 £167.15

Save £11.99 when purchased with the main item

In Stock

Recommended Fixed Shower Head

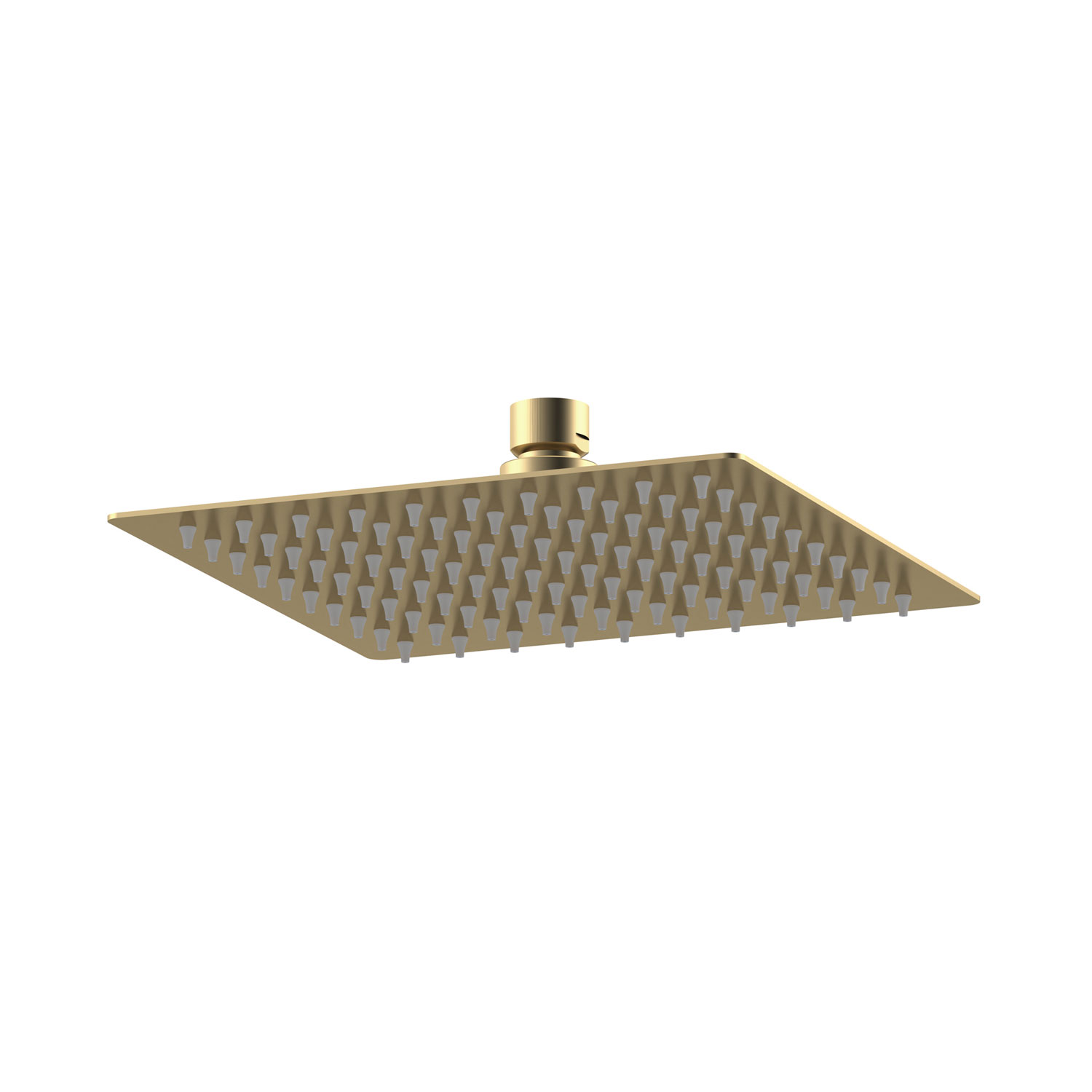

Nuie Windon Square Fixed Shower Head 200mm x 200mm - Brushed Brass
(PMA8088)
£56.99 £62.65

Save £5.66 when purchased with the main item

In Stock

Recommended Shower Arm

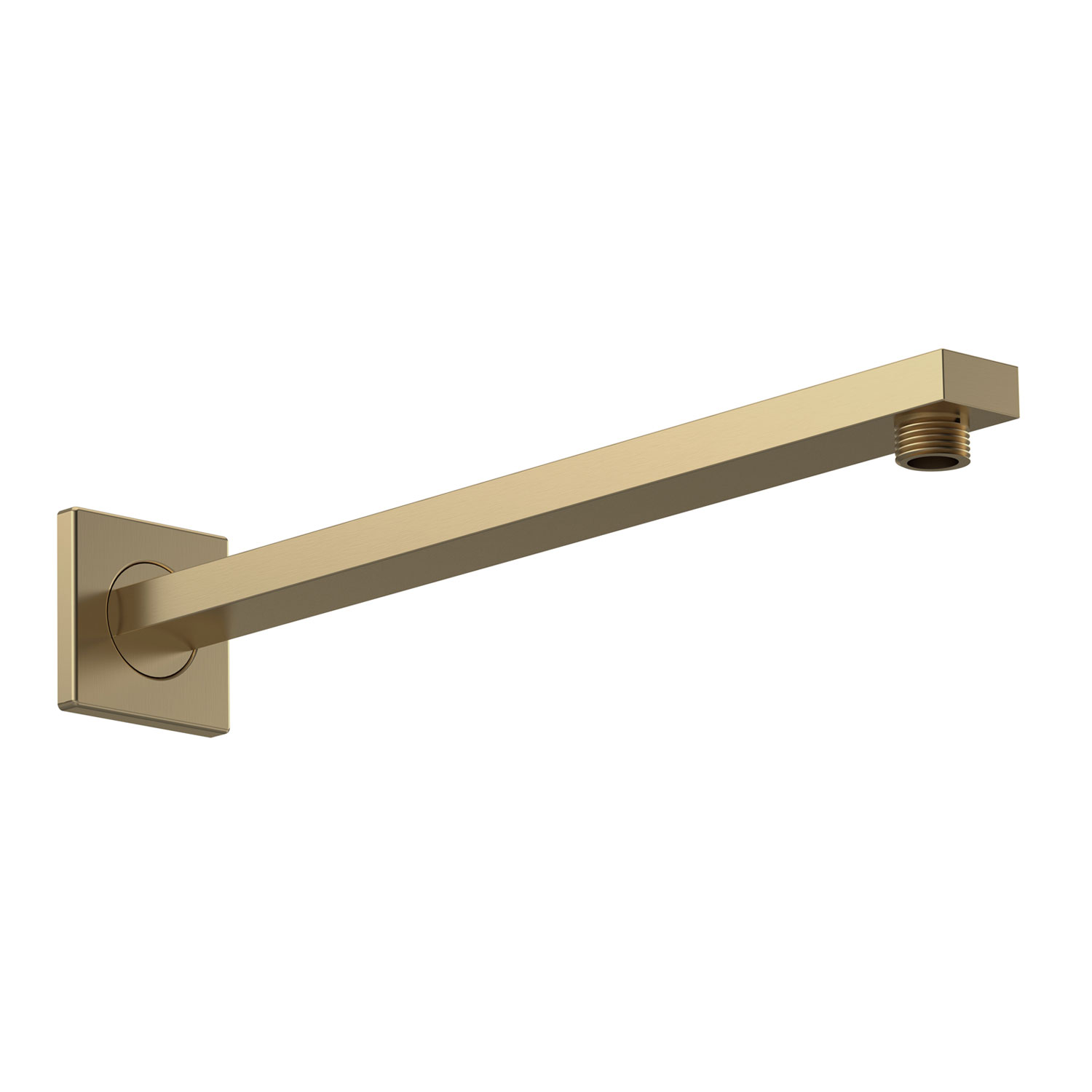

Nuie Windon Rectangular Wall Mounted Shower Arm 410mm Length - Brushed Brass
(PMARM813)
£62.60 £68.35

Save £5.75 when purchased with the main item

In Stock
Nuie Arvan Round Ceiling Mounted Shower Arm 160mm Length - Brushed Brass
(PMARM815)
£28.00 £33.20

Save £5.20 when purchased with the main item

In Stock

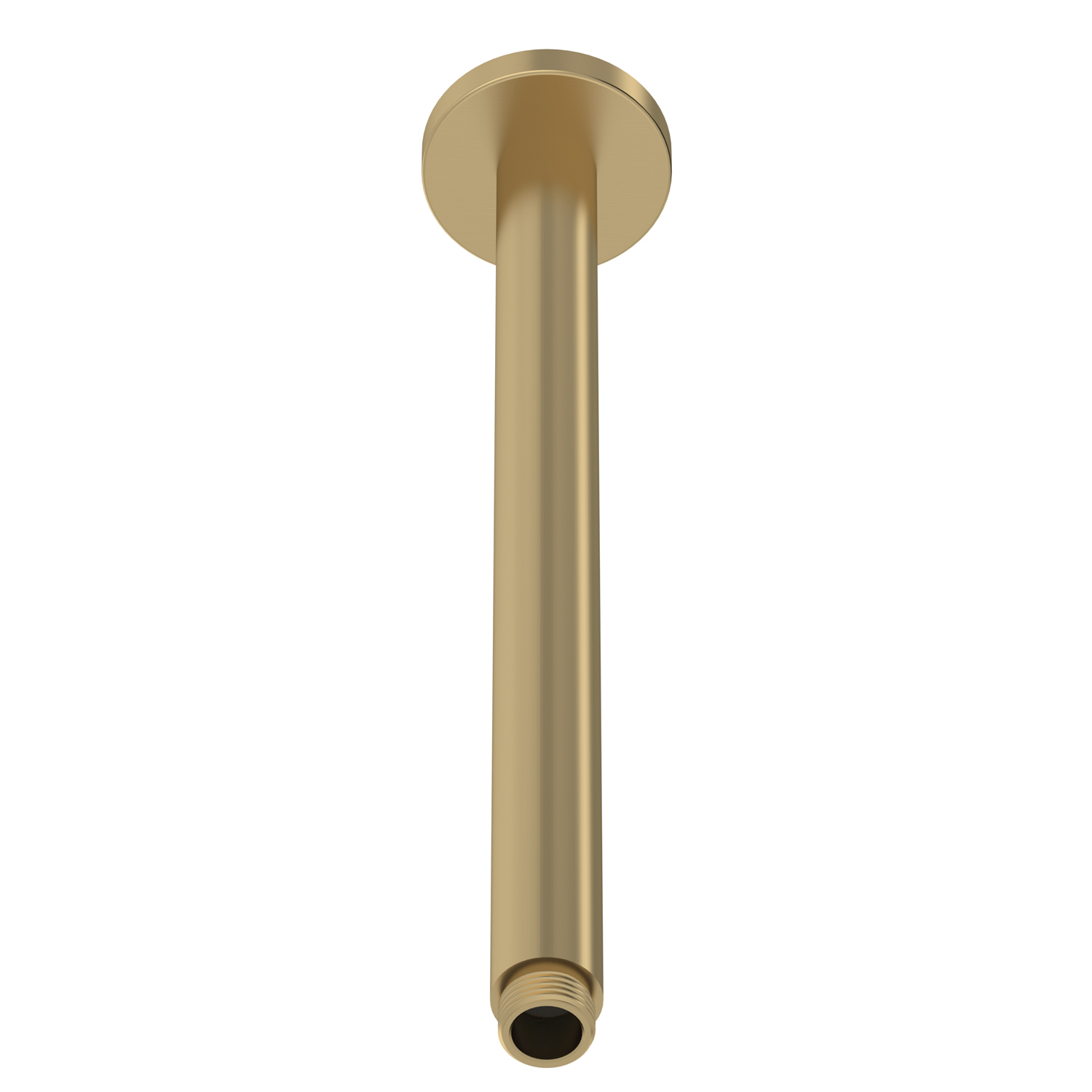

Nuie Arvan Round Ceiling Mounted Shower Arm 310mm Length - Brushed Brass
(PMARM816)
£33.61 £38.90

Save £5.29 when purchased with the main item

In Stock

Recommended Shower Handset

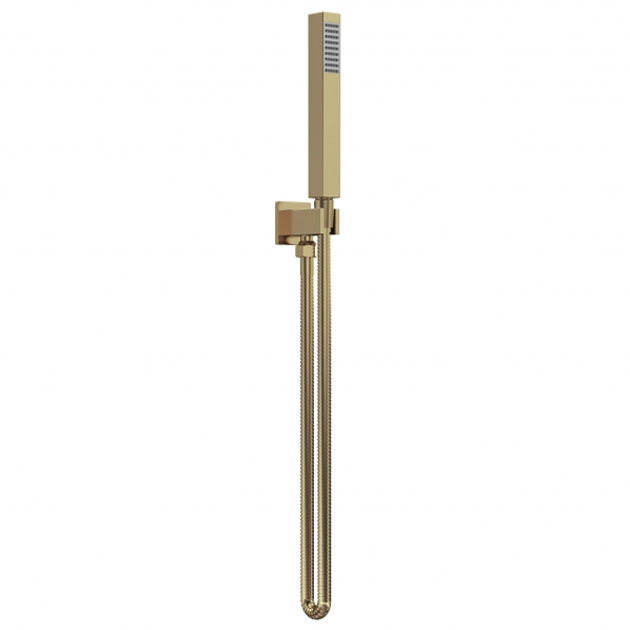

Nuie Windon Square Pencil Shower Handset with Hose and Bracket - Brushed Brass
