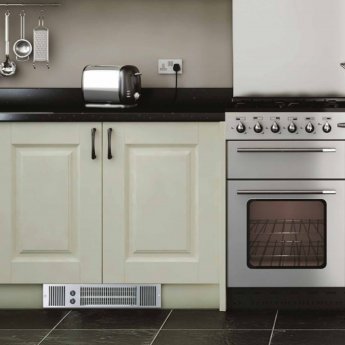

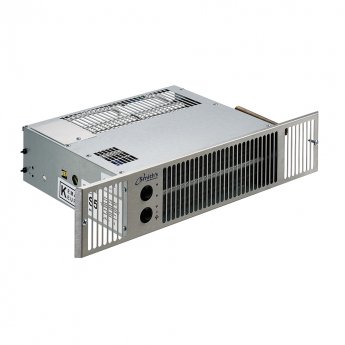

The Smiths Space Saver HPSS10005 Plinth Mounted Hydronic Low Voltage Fan Convector is a highly-efficient fan convector that fits into the plinth of a kitchen unit. The space-saving benefits of the Smiths Space Saver SS5 12v Plinth Mounted Hydronic Low Voltage Fan Convector are undeniable, meaning there is no longer a need for a standard central heating radiator in a kitchen. Suitable for domestic and commercial applications, the Space Saver range is predominantly used by homeowners where space is of utmost importance.
HOW DOES HYDRONIC FAN CONVECTION WORK?
Fan convectors require connection to a wet central heating system and an electrical connection to run the fan. Hot water passes through the heat exchanger and heat is transfered to the aluminium fins. Cooler air is drawn in and heated before being expelled back into the room. This technology uses, on average, less than 2p of electricity per day. It means that a more even temperature gets distributed and the room will be heated much faster than a traditional panel radiator. Low Voltage products are suitable for bathrooms and other high-humidity areas. They are supplied with a transformer that converts it to 12v making it safe to operate with wet hands.
Smiths Space Saver HPSS10005 Plinth Mounted Hydronic Low Voltage Fan Convector Features:
Space Saver is designed for use on standard two pipe pumped central heating systems
Pipes are 15mm and either may be used as flow or return
This product is not suitable for one-pipe system
Heat Output: 2400 Btu/h, 700 Watts
Supplied complete with stainless steel fascia grille and pre-wired cable and flexible installation hoses
Creates space for more kitchen cupboards, extra work surface and additional appliances
Connects to and runs from your central heating system
Room size guide - 33 m3
Adds less than 5 pound to your annual heating bills
Choice of six facia grille colours
5 Year Parts And Labour Warranty
Smiths Space Saver Plinth Heater Video:
VIDEO
Smiths Space Saver Plinth Heater Installation Guide Video:
VIDEO
Smiths Space Saver HPSS10005 Plinth Mounted Hydronic Low Voltage Fan Convector Specifications:
Fan Convectors Type
Plinth Heater
Fan Convector Height
100mm
Fan Convector Width
498mm
Fuel
Central Heating
Normal Heat Output at 50C (kW)
0.7
Normal Heat Output at 50C (BTU)
2400
Boost Heat Output at 50C (kW)
0.9
Boost Heat Output at 50C (BTU)
3100
Approx Room Size
33.0
Mounting
Plinth
Material
Mild Steel
Style
Modern
Market
Domestic
Brand
Smiths
Collection
Space Saver
Manufacturer Part Number
HPSS10005
