The Smiths Space Saver SS5 Plinth Mounted Dual Hydronic/Electric Plinth Fan Convector with Stainless Steel Grille is a highly-efficient fan convector that fits into the plinth of a kitchen unit. The space-saving benefits of the Smiths Space Saver SS5 Plinth Mounted Dual Fan Convector with Stainless Steel Grille are undeniable, meaning there is no longer a need for a standard central heating radiator in a kitchen. Suitable for domestic and commercial applications, the Space Saver range is predominantly used by homeowners where space is of utmost importance.
HOW DOES DUAL FAN CONVECTION WORK?
Fan convectors require connection to a wet central heating system and an electrical connection to run the fan. Hot water passes through the heat exchanger and heat is transfered to the aluminium fins. Cooler air is drawn in and heated before being expelled back into the room. This technology uses, on average, less than 2p of electricity per day. It means that a more even temperature gets distributed and the room will be heated much faster than a traditional panel radiator. Dual fan convectors also include an electric element to provide supplementary heat when the central heating is switched off.
Smiths Space Saver SS5 Plinth Mounted Dual Hydronic/Electric Plinth Fan Convector with Stainless Steel Grille Features:
Image is for illustration purpose only
Please choose your grill according to model number of your unit
Built in electric heater to work when the heating is turned off
Space Saver is designed for use on standard two pipe pumped central heating systems
Pipes are 15mm and either may be used as flow or return
This product is not suitable for one-pipe system
Heat Output Hydronic: 2400 Btu/h, 700 Watts. Heat Output Electric: 1000 Watts
Supplied complete with stainless steel fascia grille and pre-wired cable and flexible installation hoses
Creates space for more kitchen cupboards, extra work surface and additional appliances
Connects to and runs from your central heating system
Room size guide - m3
Adds less than 5 pound to your annual heating bills

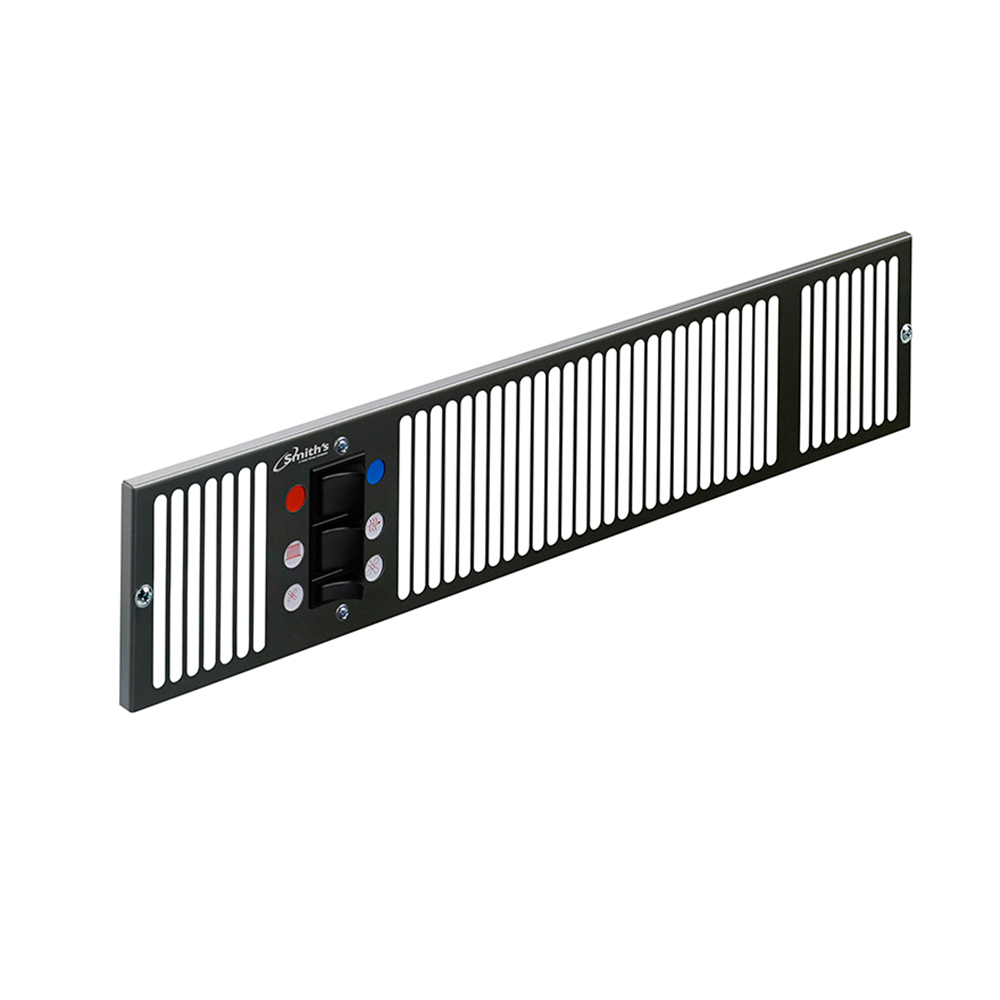

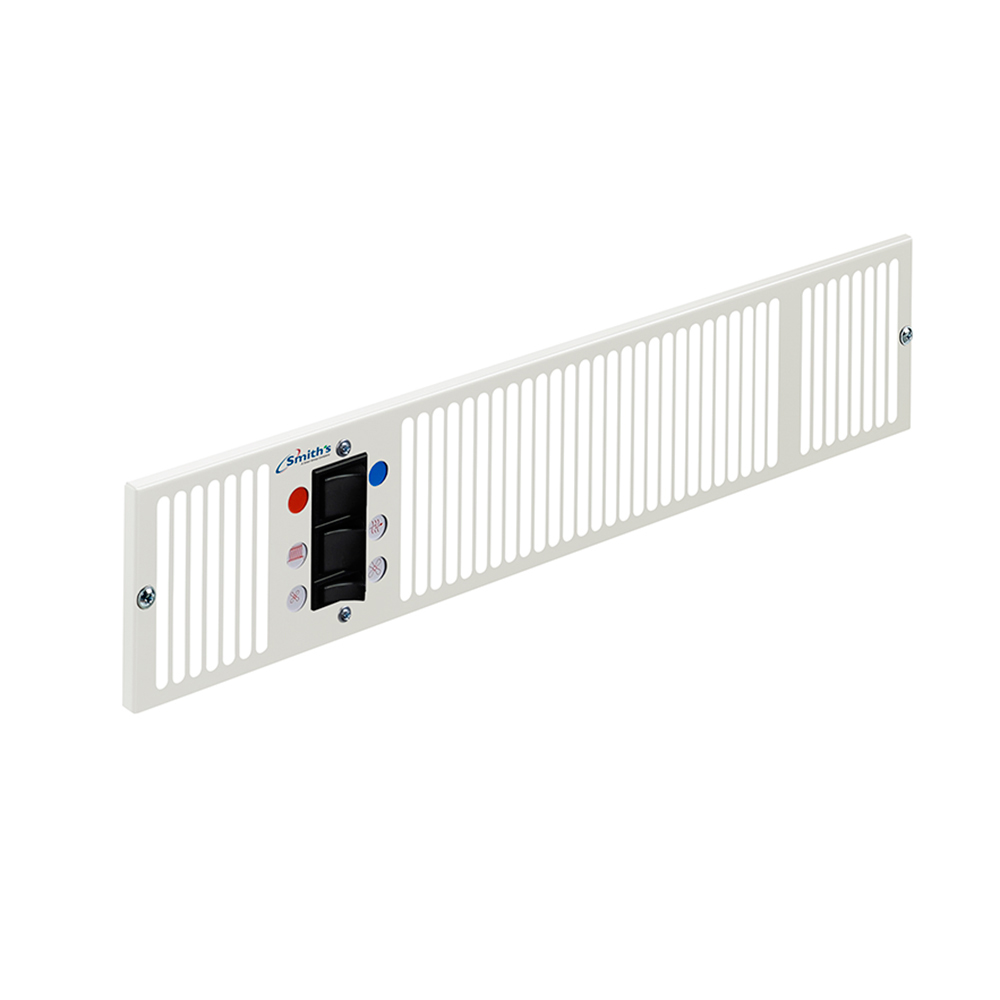

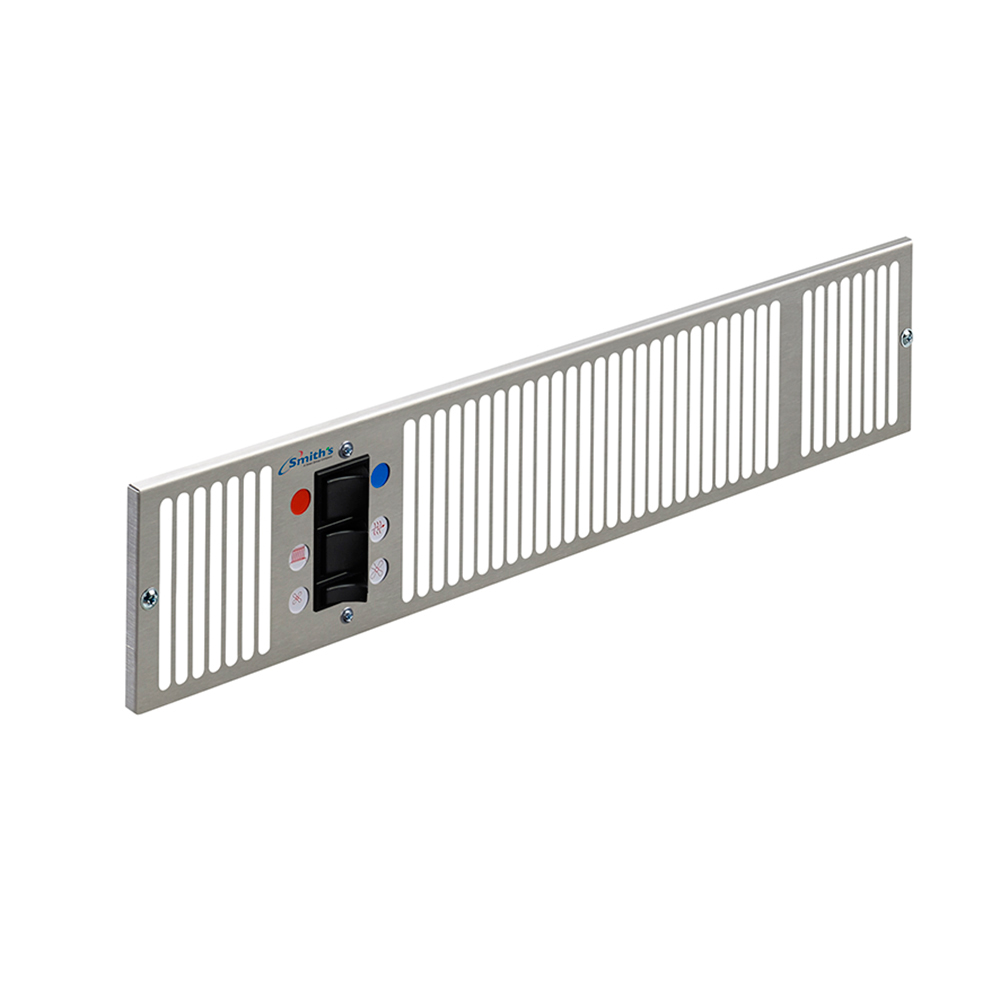

Choice of seven facia grille colours
5 Year Parts And Labour Warranty
Smiths Space Saver Plinth Heater Video:
VIDEO
Smiths Space Saver Plinth Heater Installation Guide Video:
VIDEO

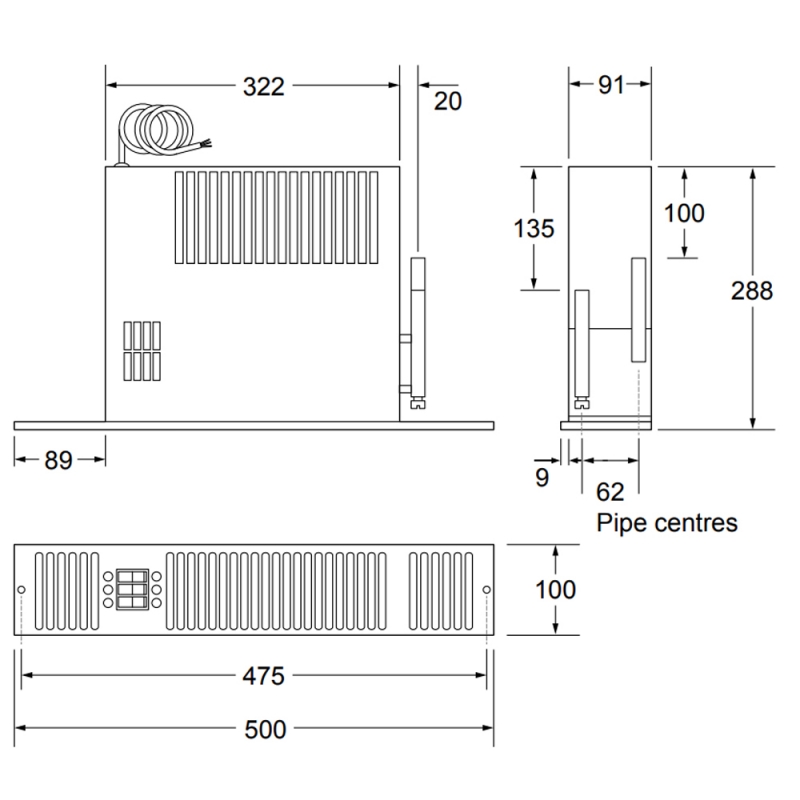

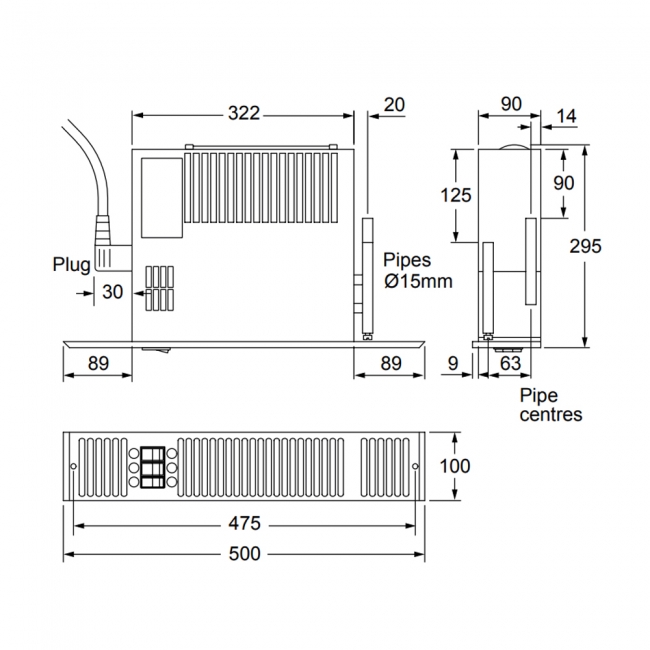

Smiths Space Saver SS5 Plinth Mounted Dual Hydronic/Electric Plinth Fan Convector with Stainless Steel Grille Specifications:
Fan Convectors Type
Plinth Heater
Fan Convector Height
100mm
Fan Convector Width
500mm
Fuel
Central Heating
Normal Heat Output at 50C (kW)
0.7
Normal Heat Output at 50C (BTU)
2400
Boost Heat Output at 50C (kW)
0.9
Boost Heat Output at 50C (BTU)
2100
Approx Room Size
37.0
Mounting
Plinth
Material
Mild Steel
Colour
Stainless Steel
Style
Modern
Market
Domestic
Brand
Smiths
Collection
Space Saver
Manufacturer Part Number
HPSS10076
