The Telford Cylinder Type, Open-Vented Solar is designed for installations with vented solid fuel and heating systems as well as a Sealed System Boiler and Solar. All stores come with a blend valve/shock arrestor factory fitted and a 3kw immersion as backup. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, example flats/apartments. The filling of the unit is achieved by integral filling loop which is disconnected from the mains water when the correct water level is attained.
Telford

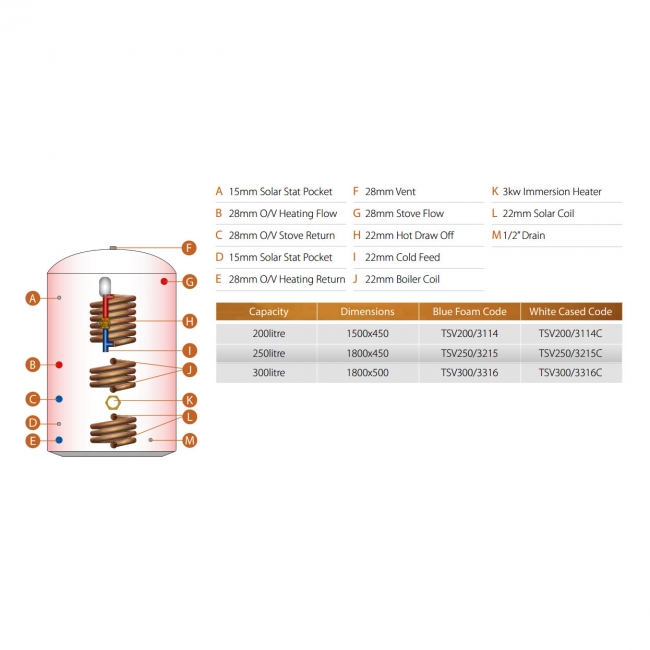

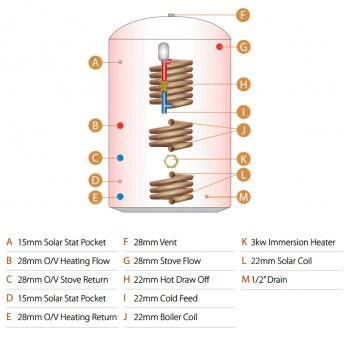

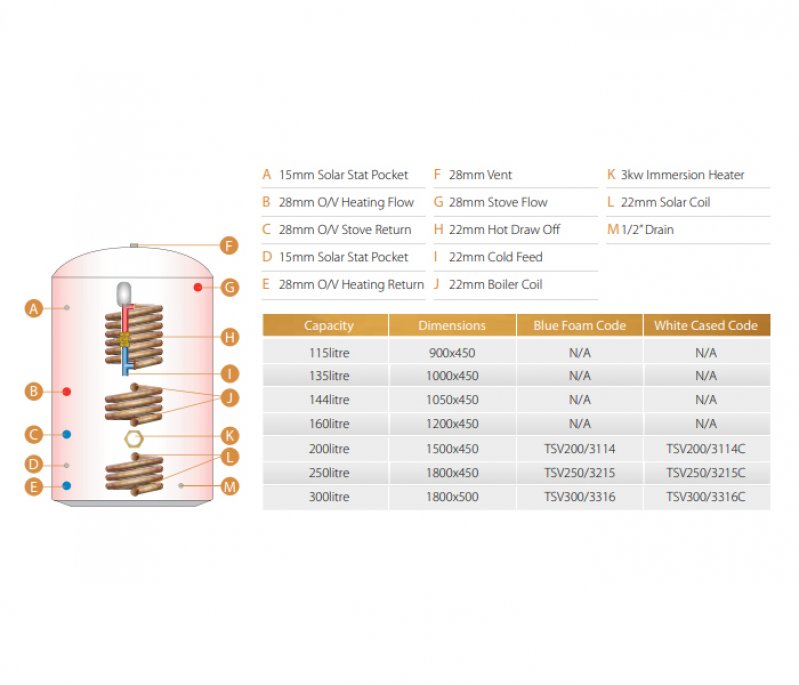

Tristar Thermal Store TSV200/3114 Cylinder with Thermal Coil and Sealed Boiler Features:
- Conventional blue spray foamed Store
- 28mm o/v heating flow
- 28mm o/v stove return
- 15mm solar stat pocket
- 28mm o/v heating return
- 28mm vent
- 28mm stove flow
- 22mm hot draw off
- 22mm cold feed
- 22mm boiler coil
- 3kw immersion heater
- 22mm solar coil
- 1/2" drain
- 10 years warranty from manufacture if serviced every year
Telford
Tristar Thermal Store TSV200/3114 Cylinder with Thermal Coil and Sealed Boiler Specifications:
Cylinder Type |
Combination |
System |
Vented |
Cylinder Height |
1500mm |
Cylinder Diameter |
450mm |
Capacity |
200 litres |
Immersion Heater Rating |
3 Kw |
Orientation |
Vertical |
Material |
Copper |
Colour |
Blue |
Brand |
Telford |
Collection |
Tristar |
Style |
Modern |
Market |
Domestic |
Manufacturer Part Number |
TSV200/3114 |
