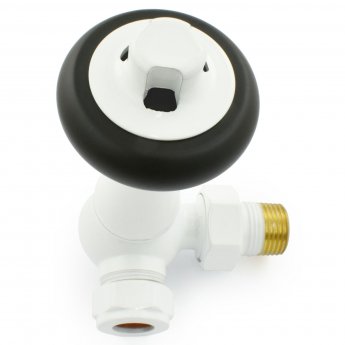

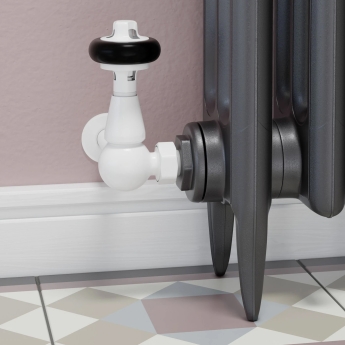

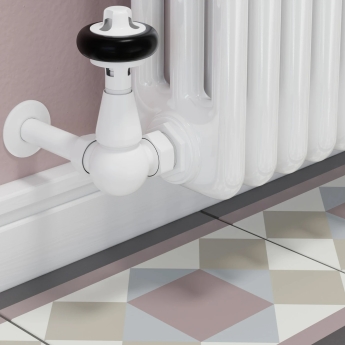

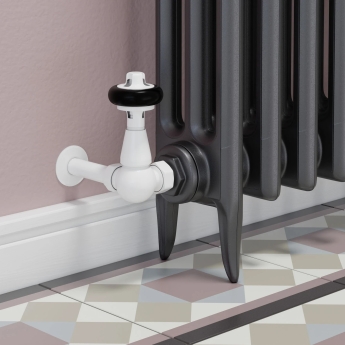

West Eton Corner Manual Radiator Valve and Lockshield - White | Product Image

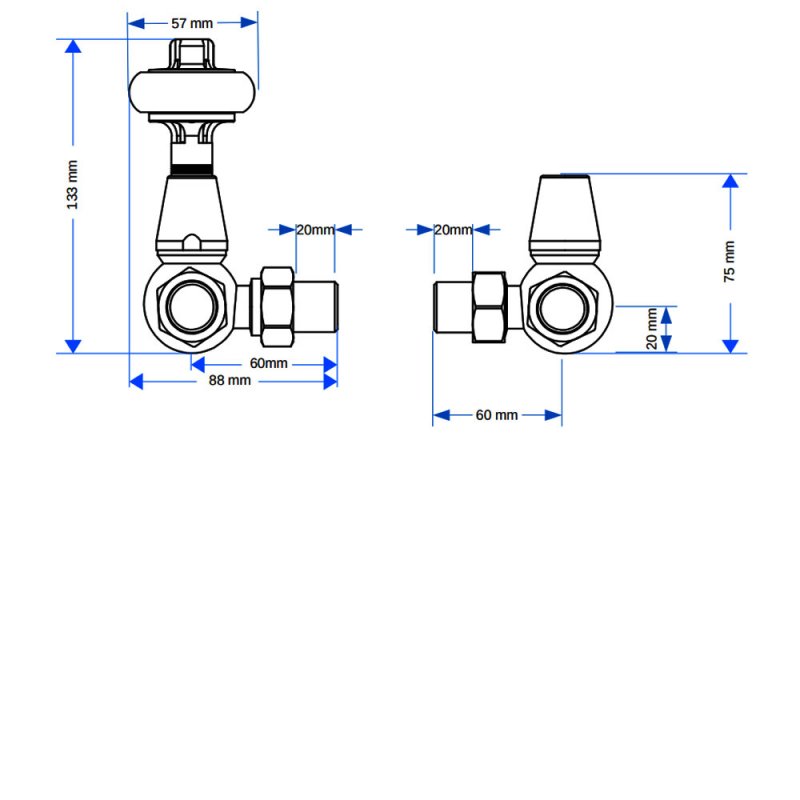

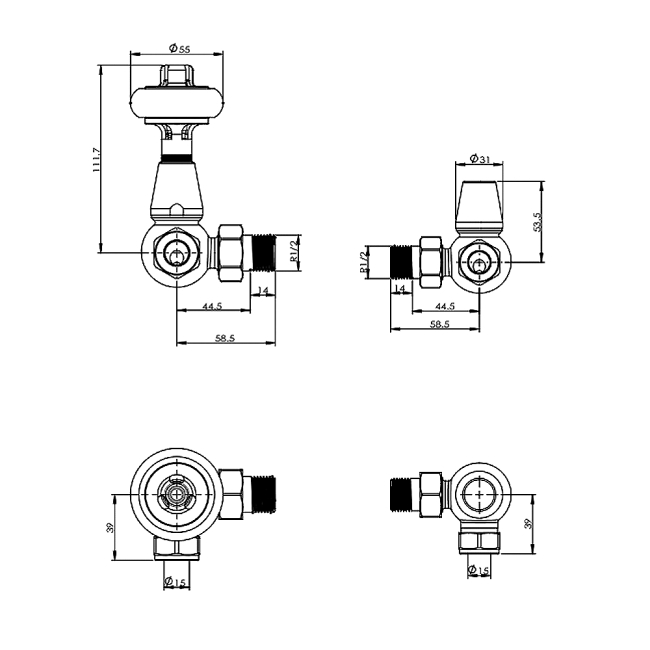

West Eton Corner Manual Radiator Valve and Lockshield - White | Dimension Image

West Eton Corner Manual Radiator Valve and Lockshield - White | Thumbnail Image

West Eton Corner Manual Radiator Valve and Lockshield - White

Name: West Eton Corner Manual Radiator Valve and Lockshield - White
Brand: West Radiators
SKU: WRETOCRW
Price: 103.95 GBP
Availability: InStock

Quick Code: 2838245

Ref: WRETOCRW

(No Reviews)

£103.95 Inc. VAT

You May Need

Add to Basket

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

Traditional corner manual radiator valve and lock-shield
Manufactured from high-quality material and is extremely durable for long-term use
Solid brass construction
Comes in white finish
Compression Inlet(s) 15mm
Radiator Coupler 1/2" BSPT - Male
One wheel head and one lockshield
Standards CE EN1489:2000

Important Information

Supplied with 6 year guarantee from the manufacturer

Radiator Valves Type	Manual
Position	Corner
Radiator Valve Connection Size	1/2
Radiator Valve Pipe Size	15mm
Radiator Valve Height	133mm
Radiator Valve Width	88mm
Radiator Valve Depth	57mm
Max Test Pressure	12 Bar
Max Operating Pressure	10 Bar
Max Differential Pressure	1 Bar
Pressure Drop Value	1.6 Kvs
Normal Flow Rate	0.20 M3/h
Max Flow Rate	0.30 M3/h
Max Test Temperature	120 degree C
Max Operating Temperature	110 degree C
Temperature Adjustment Range	7 - 30 degree C
Handle Type	Wheel Head
Material	Brass
Colour	White
Brand	West Radiators
Collection	Eton
Style	Traditional
Market	Domestic
Weight	1.13 Kg
EAN Barcode	0763769995849
Manufacturer Part Number(s)	ETO-CR-W
