AKW Digipump M17 with PW90 90mm Diameter Pumped Waste

The AKW digipump M17 with 90mm diameter chrome waste designed and manufactured by AKW. The AKW M17 digital waste pump provides reliability, high performance in operation and is compatible with AKW's wide range of pumped wastes. Pumps will quietly but powerfully pull the water to a higher point enabling drainage for even the most unusual shower design or tray.

Product Features

• 22mm inlet and 22mm outlet connectors - compatible with PW50 (22mm) pumped waste

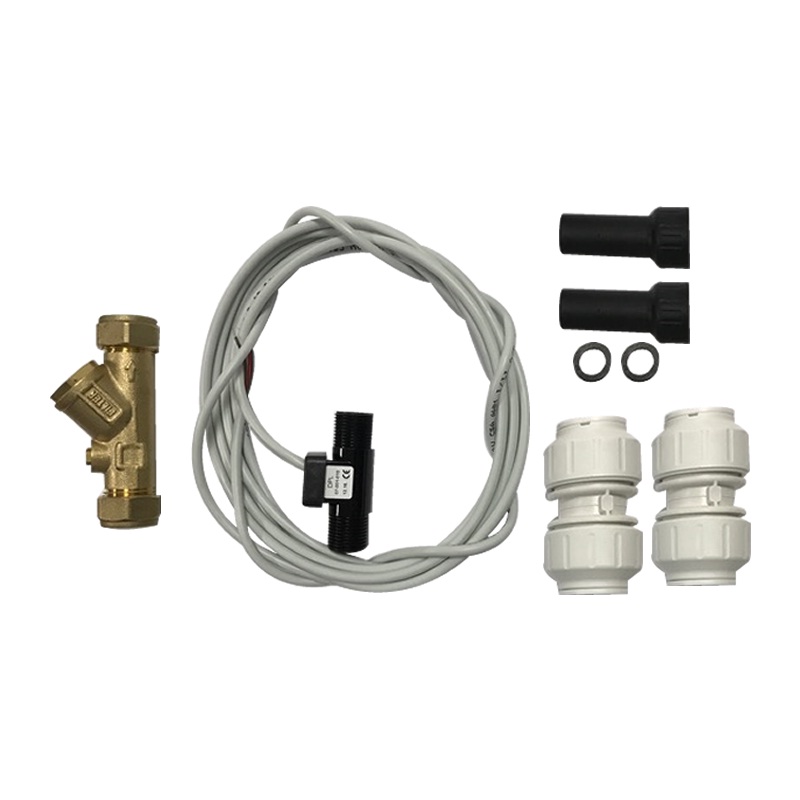

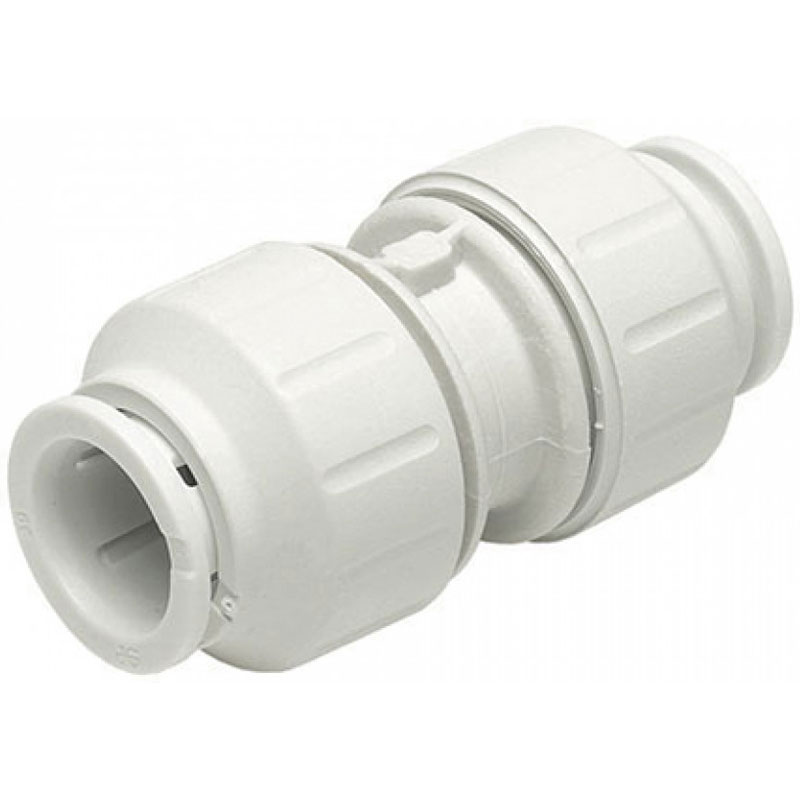

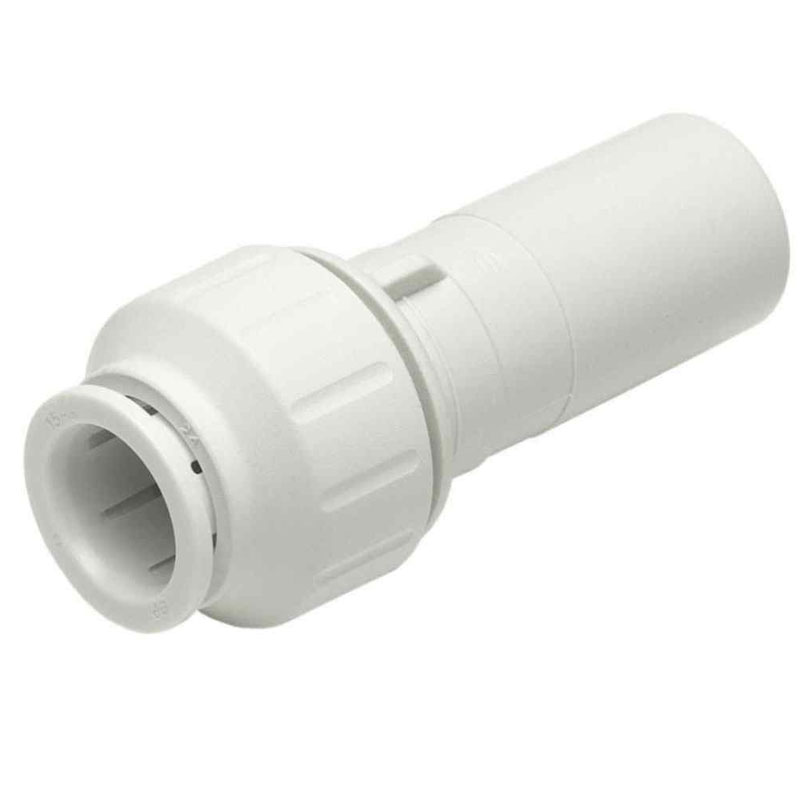

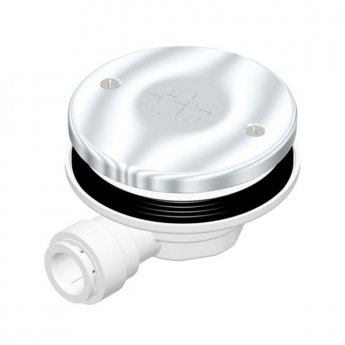

• 1 x M17 Digi Pump - Component Part, 2 x John Guest in-line 15mm connector, 1 x Brass Body 15mm Compression Fitting Y Filter, 1 x PW90 22mm JG Pumped Waste, 1 x DigiPump Flow Sensor
• Delayed start up and run on settings - easy to set up and configure ensuring full drainage of shower tray
• Internal TGA fuse
• Max flow rate 17 litres/min - suitable for electric and mixer showers
• Suitable for use with wide range of electric and/or mixer showers including AKW, Mira, Triton and other brands
• Compatibility with electric and mixer showers enables greater flexibility based on the individual needs of the user
• Non-handed unit - pump head can be rotated to allow flow in either direction
• Reversible pump head features four valves with flap valve and bowl design
• Pump head design allows for better removal of debris and installation of inlet pipework from either left or right
• Pump head can be rotated - allows flow in either direction
• A hard-wired connection can be made to the flow sensor of an iTherm electric shower and many other brands
• also this offers a wireless connection to the flow sensor within AKW SmartCare Plus and Smart Care Lever electric showers
• Wired or wireless connections offer the installer flexibility when fitting
• Compatible with AKW wastes, trays and showers - designed for operation effortlessly with compatible AKW products for a complete showering solution
• Quick to install and simple to service - Low maintenance solution that reduces inconvenience to users
• Safe for use in Zones 1 & 2 with IP45 rating - IP45 rating confirms approval for installation within the showering area (Zones 1 & 2)
• Superior pump performance with between 11-20lpm maximum capacity in a real life scenario
• Has been designed to be highly efficient and match the flow volumes of electric and mixer showers to ensure suitability for everyday use
• Automatically responds to the shower being operated through internal/external flow sensor
• Easy-to-use functionality that requires no additional effort by the user
• Supplied with a 5 year guarantee from the manufacturer
