AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste
AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste

AKW Digipump M20 Standard PW50 50mm Diameter Pumped Waste

Quick Code: 2796214
Ref: AKW25482
AKW
£761.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 36 monthly payments of £24.40 at 9.9% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

The AKW Digipump M20 with Standard 50mm Diameter Chrome Waste Designed and manufactured by AKW. The AKW M20 digital waste pump provides reliability, high performance in operation, is easy to install and is compatible with AKW's wide range of pumped wastes and trays. Pumps will quietly but powerfully pull the water to a higher point enabling drainage for even the most unusual shower design or tray.

Product Features

  • 22mm inlet and 22mm outlet connectors - compatible with PW50 (22mm) pumped waste
  • 2 x John Guest in-line 15mm connector, 1 x M20 DigiPump - Component Part, 1 x Brass Body 15mm Compression Fitting Y Filter, 1 x PW50 22mm JG Standard Pumped Waste, 1 x DigiPump Flow Sensor
  • Additional flow sensor kits are available - required for use with dual feed showers
  • Delayed start up and run on settings - easy to set up and configure ensuring full drainage of shower tray
  • Internal TGA fuse
  • Max flow rate 20 litres/min - suitable for electric and mixer showers
  • Suitable for use with wide range of electric and/or mixer showers including AKW, Mira, Triton and other brands
  • Compatibility with electric and mixer showers enables greater flexibility based on the individual needs of the user
  • Non-handed unit - pump head can be rotated to allow flow in either direction
  • Reversible pump head features four valves with flap valve and bowl design
  • Pump head design allows for better removal of debris and installation of inlet pipework from either left or right
  • Pump head can be rotated - allows flow in either direction
  • Compatible with AKW wastes, trays and showers - designed for operation effortlessly with compatible AKW products for a complete showering solution
  • Safe for use in Zones 1 & 2 with IP45 rating - IP45 rating confirms approval for installation within the showering area (Zones 1 & 2)
  • Superior pump performance with between 11-20lpm maximum capacity in a real life scenario
  • Has been designed to be highly efficient and match the flow volumes of electric and mixer showers to ensure suitability for everyday use
  • Automatically responds to the shower being operated through internal/external flow sensor
  • Easy-to-use functionality that requires no additional effort by the user
  • Supplied with a 5 year guarantee from the manufacturer
Show More

TypeWastes

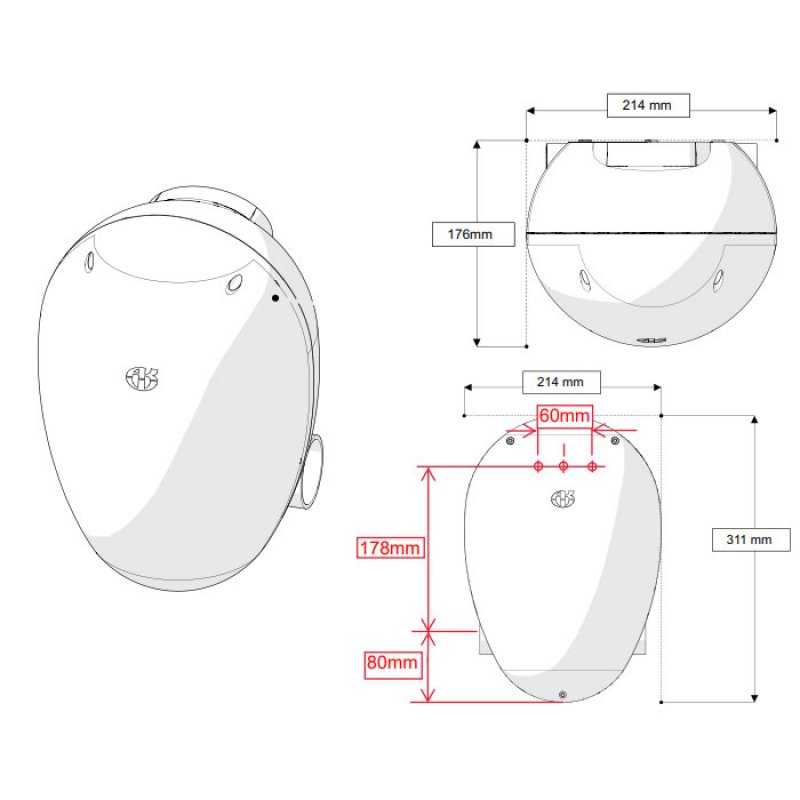

Height311mm
Length214mm
Diameter50mm
Depth176mm
Inlet Connector22mm
Outlet Connector22mm
Pump Capacity20lpm
Outlet Head1.0m
Inlet Lift0.5m
Duty Cycle30 Minutes max on 50% duty
Flow Meter InputGems FT110 1000 pulses/litre/min
Supply230V AC 50Hz 73W
MaterialABS Plastic
FinishChrome
BrandAKW
StyleModern
MarketCare
EAN Barcode5055295145771
Manufacturer Code25482
Show More

Product Datasheet
Type : PDF Size : 634.74 KB
Fitting Instruction
Type : PDF Size : 5.66 MB
Brochure
Type : PDF Size : 13.85 MB
