Innovative and modern, this electric shower is designed for those who look for a high standard of shower experience. The shower is easy to use, featuring a push button on and off, as well as clear temperature and shower controls too.
It also comes with an LED Temperature Indicator as well as a flow indicator too. The temperature is stabilised during your shower and there is a phased and auto shutdown within the shower which is safe for all the family.
The design is also style and modern with high gloss and rounded corners, and the entire shower kit, with all you need, is guaranteed for 3 years.
AKW iTherm 29025 Electric Shower Features:
-
Pack includes: 1 x iTherm Shower, 1 x Riser Rail with soap dish, 1 x Shower Head and 1.5m Hose
- Contemporary styling and high gloss finish
- Easy push Power button and Maintains Temp/Flow settings
- LED Temperature Indicator
- LED Flow Indicator

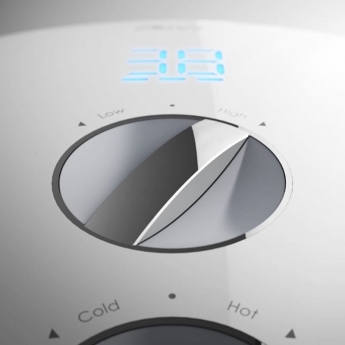

- Independent Temperature and Flow controls
- Thermostatically Stabilised Temperature
- Phased/Auto Shutdown
- Chrome accessories: adjustable riser rail, hose, multi-mode handset, soap dish
- 8.5kW and 9.5kW options
- Rounded surfaces and edges for safety
- Super-quick and easy installation
- 8 electrical / 8 water entry points
- Dual power blocks for left or right hand wiring
- Comprehensive technical after-sales support
- Supplied with a 3 year guarantee from the manufacturer
AKW iTherm 29025 Electric Shower Specifications:
|
Shower Type
|
Electric Showers
|
|
Supply Source
|
Mains pressure cold water only
|
|
Minimum Dynamic Pressure
|
50kPa (0.5 Bar)
|
|
Maximum Static Pressure
|
1000 kPa (10 Bar)
|
|
Optimal Minimum Dynamic Pressure
|
100 kPa (1 Bar) (Recommended to ensure high performance)
|
|
Maximum Inlet Temperature
|
28 degree C
|
|
Minimum Inlet Temperature
|
2 degree C
|
|
Inlet Connection
|
15mm push-fit
|
|
Outlet Connection
|
1/2" BSP Male thread Fitting
|
|
Nominal Rating at
|
240 V 10.5kW, 9.5kW & 8.5kW
|
|
Supply Fuse / Circuit Breaker
|
(10.5kW 45/50A), (9.5kW 40/45A) & (8.5kW 35/40A)
|
|
Residual Current Device (RCD)
|
30mA
|
|
Supply Cable
|
Refer to current wiring regulations and BS 7671 to determine minimum cable size. No larger than 10mm2
|
|
Isolation Switch
|
45 Amp Double pole with 3mm
|
|

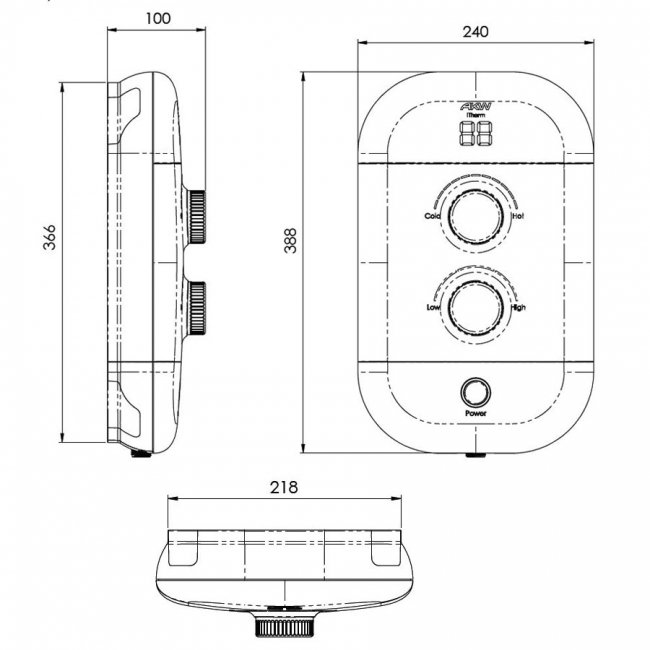

Height
|
380mm
|
|
Width
|
230mm
|
|
Depth
|
85mm
|
|
Footprint Height
|
345mm
|
|
Footprint Width
|
210mm
|
|
Water Ingress Rating
|
IPX4
|
|
Water and Cable Entry Points
|
Top, bottom or back
|
|
Shower Drain Pump Connections
|
Suitable for AKW M Series, D4 (Flow Sensor) or AKW A4 (Flow Switch)
|
|
Brand
|
AKW
|
|
Style
|
Modern
|
|
Market
|
Care
|
|
Weight
|
10 Kg
|
|
EAN Barcode
|
5055295130364
|
|
Manufacturer Code
|
29025
|
