AKW TriForm Level Access Wet Room Tray Floor Former - 1300mm x 820mm
The TriForm wet room former is characterised by a long, linear drain positioned at one end of the tray, helping to give your shower a unique and luxurious appearance. The TriForm measures in at 22mm thick and can hold weight of up to 40 stone with no underboarding. Suitable for use with tiled floors only. Up to 3 wastes can be connected to the tray to achieve a flow rate of up to 78 litres per minute - many options are available separately.
Product Features

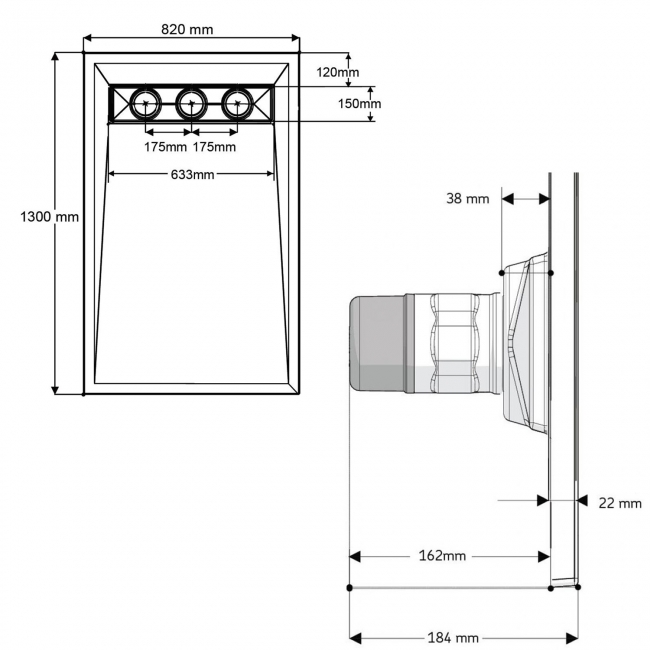

- 1300mm x 820mm wet room floor former designed to provide a fully level-access showering area
- Stylish linear drain design offers a premium appearance
- Compatible with 1, 2 or 3 shower wastes, each providing a flow rate of 26 litres per minute
- Reversible standard linear drain cover offers a choice of stainless steel or tiled finish
- Suitable for installation on timber and solid concrete floors
- Designed for tiled floor coverings only; not suitable for vinyl flooring
- 22mm thick, designed to align with standard UK flooring comprising 18mm timber and 4mm plywood
- Integrated 1:40 gradient helps direct water towards the waste for effective drainage
- Manufactured from glass-reinforced plastic (GRP) using a hand lay-up process
- Pre-formed fixing holes help simplify and speed up installation
- Supports a bearing weight of up to 254kg (40 stone)
- Self-supporting design eliminates the need for underboarding
- 4 gradient planes direct water towards the waste
- Integral trough with three waste positions provides waterproofing without the need for silicone
- Can be trimmed to within 100mm of the waste for easier installation
- Available in five sizes with three waste cover designs
- Accommodates tiles up to 2.5cm thick
- Pre-keyed surface reduces preparation time
- Compatible with a range of AKW gravity and pumped wastes
- Supplied with a lifetime guarantee from the manufacturer
Important Information
- Wet room floor former only - waste(s) and linear drain cover not included
- Suitable for use with 1, 2, or 3 wastes depending on flow rate requirements
- Infill pieces are supplied to cap off any unused waste holes
