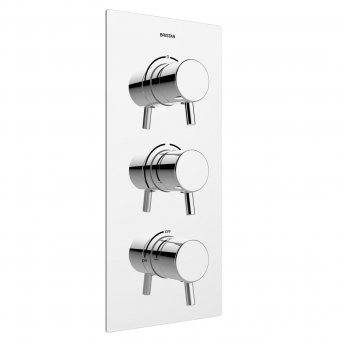

Bristan Prism Thermostatic Recessed Triple Control Shower Valve with Diverter - Chrome

Product Features

• Shower valve supplies water to 3 outlets

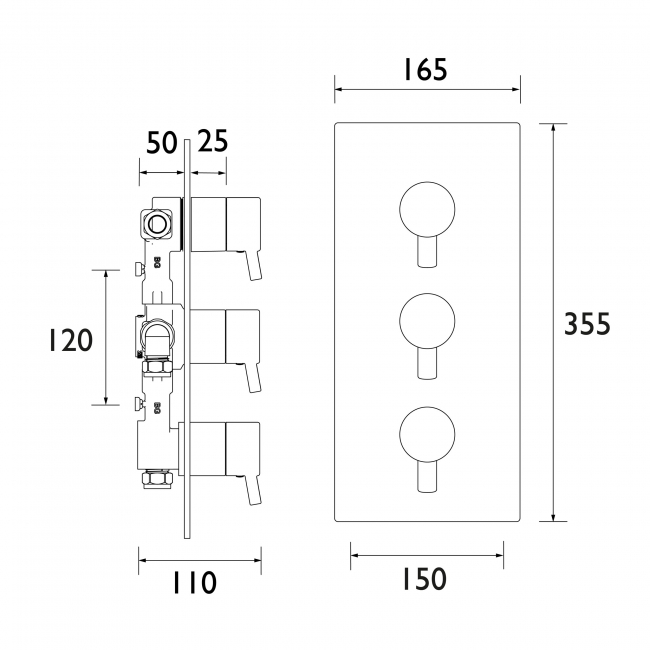

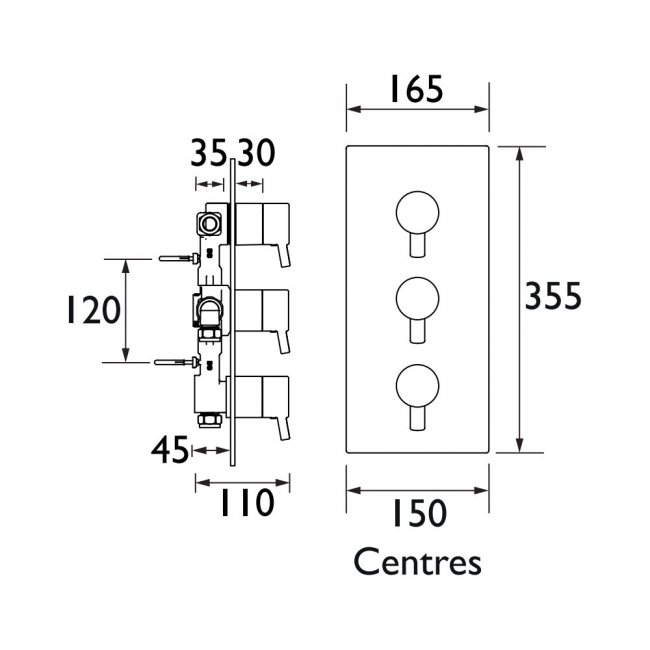

• Fitting depth including plasterboard and tiles is 45mm - 75mm
• Minimum cold water supply temperature is 4 degree celsius
• Maximum hot water supply temperature is 80 degree celsius
• Fully serviceable from the front
• Integral two outlet diverter and single stopcock
• Supplied with wall outlet
• Triple handle valve with diverter
• Metal back plate and handles for added durability
• Approved and tested under WRAS
• Top control operates two shower outlets, centre adjusts temperature, bottom control operates the other shower outlet
• Guarantee: 5 years including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
• Outlet 1 (via CD Valve) : 0.2 Bar- 8.3 l/min, 0.5 Bar - 14.5 l/min, 1.0 Bar - 21.2 l/min, 2.0 Bar - 30 l/min, 3.0 Bar - 36.7 l/min, 5.0 Bar - 47.4 l/min
• Outlet 2 (via Diverter) : 0.2 Bar- 6.7 l/min, 0.5 Bar - 12.4 l/min, 1.0 Bar - 18.5 l/min, 2.0 Bar - 26.2 l/min, 3.0 Bar - 32 l/min, 5.0 Bar - 41.4 l/min
• Outlet 3 (via Diverter) : 0.2 Bar- 6.6 l/min, 0.5 Bar - 12.1 l/min, 1.0 Bar - 18 l/min, 2.0 Bar - 25.5 l/min, 3.0 Bar - 31.2 l/min, 5.0 Bar - 40.3 l/min
