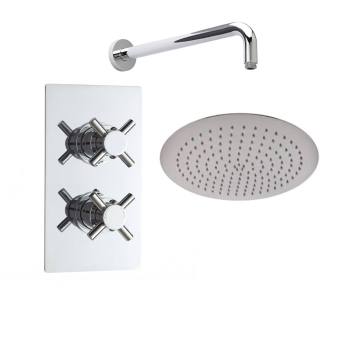

Delphi Axiom Crosshead Chrome Dual Concealed Shower Set with Large Drencher Head
This Axiom Crosshead set is a chrome concealed shower with one generous overhead: a one-outlet thermostatic valve, a flat 300mm drencher disc and a 335mm arm. The rounded corner rectangular plate and its four spoke crosshead handles give the chrome a slightly traditional hand, one handle for temperature and one to open and close the flow.
With nothing else on the wall, it suits a bathroom that wants the spray and not the hardware. Valve, head and arm are supplied together for one price, so the whole showering wall is specified in a single order.
Bundle Contents
- 1 x Delphi Axiom Crosshead Chrome 1-Outlet Dual Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 300mm x 300mm
- 1 x Delphi Round Chrome Shower Arm 335mm
Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- One outlet, feeding the fixed head on its arm supplied in this bundle
- Two controls: one sets the temperature, the other opens and closes the flow
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale
- 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- Large 300mm diameter round spray face for full body rainfall coverage
- Flat, thin edged disc just 56mm deep, so the extra width never looks bulky
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Single function rainfall spray from a wide nozzle field on a smooth, easy wipe plate
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a one-outlet shower valve designed for one accessory only (included).
