Delphi Axiom Crosshead Chrome Triple Concealed Shower Set with Fixed Head and Handset
This chrome Axiom Crosshead set gives independent control of the two outlets, which is the practical choice if the handset is used to rinse the enclosure while the overhead runs. The valve sits on a 280mm rounded corner plate with four spoke crosshead handles, matched to a 200mm round head and a slim pencil handset.
The centre handle sets the temperature and each outer handle opens one outlet. Valve, head, 335mm arm, handset, hose and elbow are supplied together for one price.

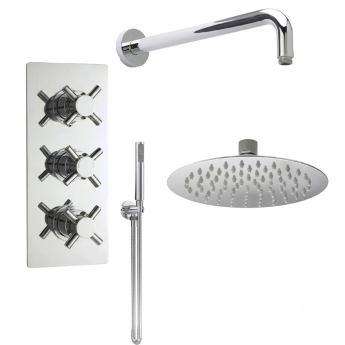

Bundle Contents
- 1 x Delphi Axiom Crosshead Chrome 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Round Pencil Chrome Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)
Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, so both accessories run alone or together
- Three controls: the centre sets the temperature, the outer two each open one outlet
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

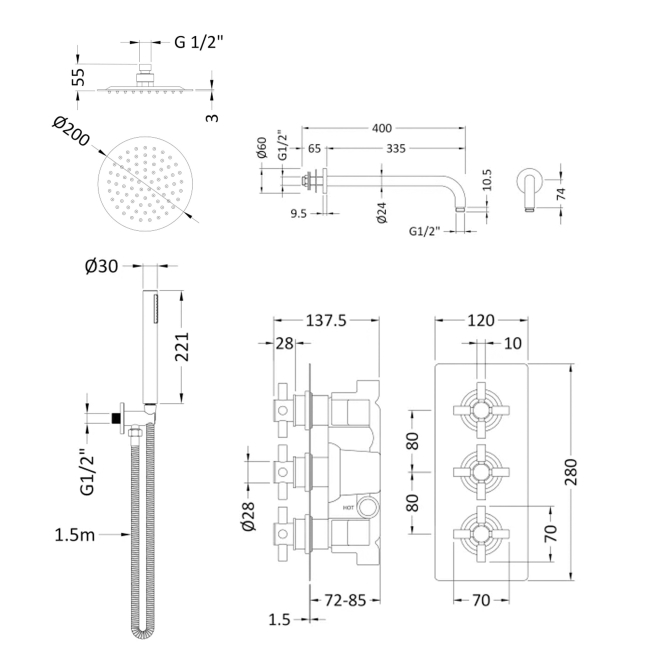

- 280mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 200mm diameter round spray face, flat and thin edged for a pared back look overhead
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Rub clean silicone nozzles laid out in concentric rows
- Single function rainfall spray, just 55mm deep from face to connector
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Handset and Bracket Features
- Single function round pencil handset with a slim cylindrical body
- Round wall bracket fixed at one height, with the water outlet built into it
- Handset lifts out for rinsing and parks back in place, with no height adjustment
- 1500mm flexible shower hose with 1/2 inch BSP connections
- Wall outlet elbow included, connecting the handset straight to the concealed valve
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
