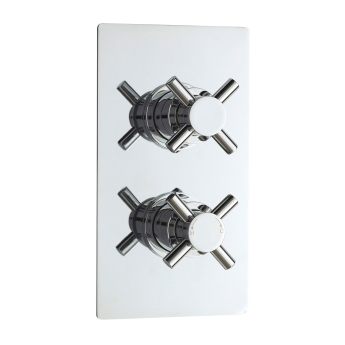

Delphi Axiom Crosshead Chrome 1-Outlet Dual Concealed Shower Valve

Delphi Axiom Crosshead Chrome 1-Outlet Dual Concealed Shower Valve

Two four-spoke crossheads and one outlet: this Delphi Axiom Crosshead concealed shower valve in chrome sets the temperature on one handle and opens the flow on the other. The rounded-corner rectangular plate is 215mm by 120mm, keeping the modern shape from feeling too hard-edged. Only the plate stands proud of the tiling, and it can be turned to sit portrait or landscape.

Product Features

• Two-handle shower valve, including the chrome concealing plate and the valve body
• One outlet, feeding one accessory: a fixed head on an arm or a slider rail kit
• Two controls: one sets the temperature, the other opens and closes the flow
• Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
• Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
• 215mm x 120mm plate, needing a recess 72mm to 85mm deep
• 1/2 inch BSP inlets, and the valve fits portrait or landscape
• Works between 0.1 and 3.0 bar
• Delivers 5.5 litres per minute at 0.1 bar, 14 at 0.5 bar, 20 at 1.0 bar
• 5 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
