Delphi Axiom Crosshead Chrome Triple Concealed Shower Set with Large Drencher Head and Slide Rail Kit
This is the specification for a large enclosure: a 300mm chrome drencher overhead, an 830mm slide rail alongside it, and a three handle Axiom Crosshead valve that can run either or both. The 280mm plate keeps the rounded corners and four spoke crosshead handles of the rest of the range.
Temperature is set at the centre control, and the outer two each open one outlet, so the rail handset can be used while the drencher is still running. Valve, head, arm and complete rail kit including the outlet elbow are supplied together for one price.

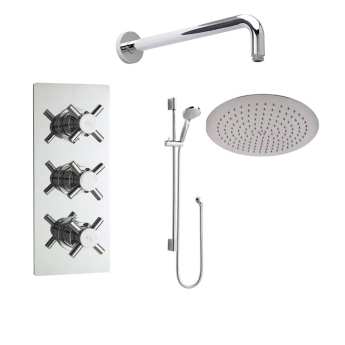

Bundle Contents
- 1 x Delphi Axiom Crosshead Chrome 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Round Chrome Fixed Shower Head 300mm x 300mm
- 1 x Delphi Round Chrome Shower Arm 335mm
- 1 x Delphi Slimline Chrome Multi-Function Slider Rail Shower Kit (inc Outlet Elbow)
Shower Valve Features

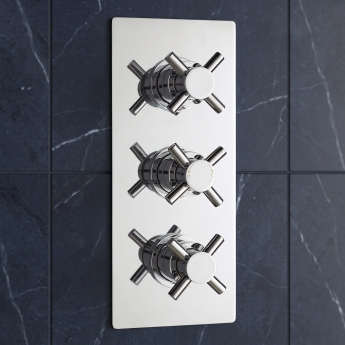

- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, so both accessories run alone or together

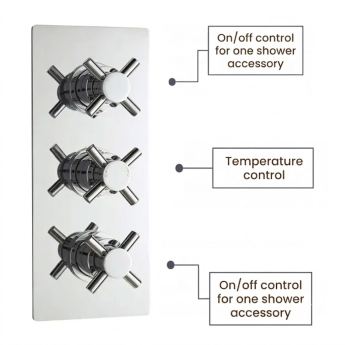

- Three controls: the centre sets the temperature, the outer two each open one outlet
- Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

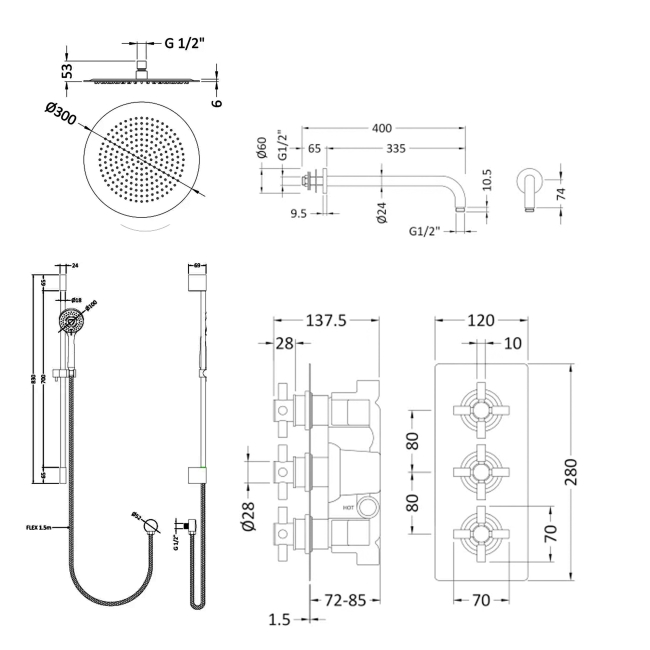

- 280mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- Large 300mm diameter round spray face for full body rainfall coverage
- Flat, thin edged disc just 56mm deep, so the extra width never looks bulky
- Stainless steel, which will not rust or tarnish in a shower enclosure
- Single function rainfall spray from a wide nozzle field on a smooth, easy wipe plate
- Matching round arm projecting 335mm from the finished wall on a 60mm round flange
- 1/2 inch BSP swivel connector, so the spray angle can be adjusted
Slide Rail Kit Features
- 830mm rail, giving a wide spread of handset positions
- Handset slides and locks at any height along the bar
- Multi-function round handset with three spray modes chosen at the face
- 1500mm chrome plated brass shower hose
- Chrome plated brass rail with a chrome plated ABS handset
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
