Delphi Windsor Brushed Brass Dual Concealed Shower Set with Large Drencher Head and Slide Rail Kit

Delphi Windsor Brushed Brass Dual Concealed Shower Set with Large Drencher Head and Slide Rail Kit

Warm brushed brass across four pieces makes this the most decorative Windsor set we assemble, and it is meant for a large traditional bathroom or a period main suite. The 12 inch apron rose on its arced arm gives the drench, the 750mm slide rail gives the flexibility, and the stepped mitred valve plate keeps the ceramic lever and crosshead detail at eye level.

The concealed thermostatic valve controls both accessories from two handles, one for the temperature and one that opens the shower and diverts between the head and the rail. Valve, 300mm head, 315mm arm and slide rail kit come as one price, with the wall outlet elbow included.

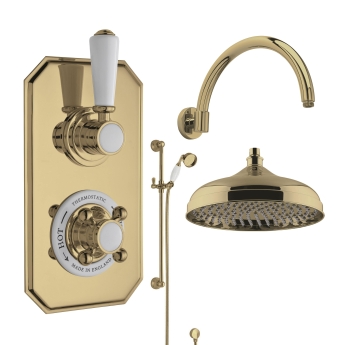

Bundle Contents

• 1 x Delphi Windsor Brushed Brass 2-Outlet Dual Concealed Shower Valve
• 1 x Delphi Traditional Brushed Brass Fixed Shower Head 300mm x 300mm
• 1 x Delphi Curved Brushed Brass Shower Arm 315mm
• 1 x Delphi Traditional Brushed Brass/White Slider Rail Shower Kit (inc Outlet Elbow)

Shower Valve Features

• Two-handle shower valve, including the concealing plate and valve body in one package
• Two outlets fed through an integrated diverter, one for each accessory in the set
• Two controls: one sets the temperature, the other turns the shower on and diverts between outlets
• Thermostatic cartridge holds your set temperature to within 2 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale

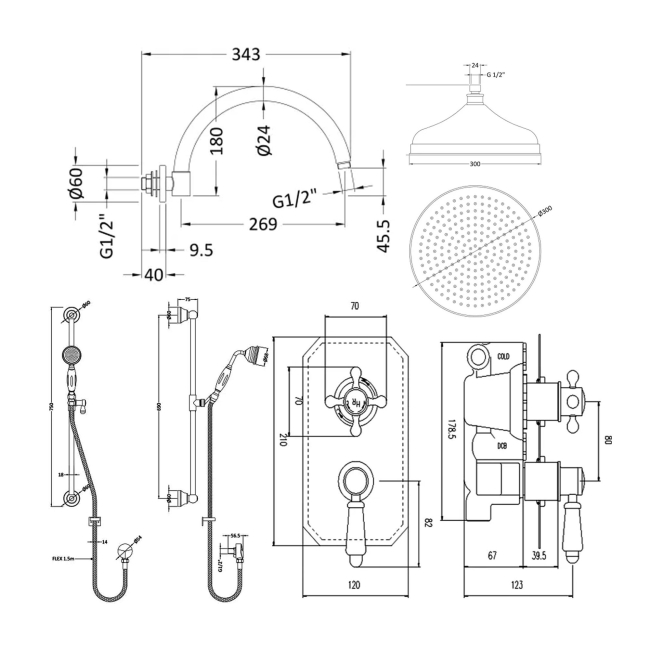

• 210mm x 120mm stepped plate, mitred at the corners, needing a recess 67mm deep
• 1/2 inch BSP inlets, working from a minimum of 0.5 bar
• Brushed brass finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 300mm diameter apron rose, a 12 inch traditional head with a domed body and stepped banded rim
• Machined from solid brass, giving it the weight the period styling implies
• Recessed spray plate, keeping the nozzles out of sight from below
• Single function, giving one wide and comparatively soft rainfall spray
• Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
• 1/2 inch BSP connections between arm and head

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
