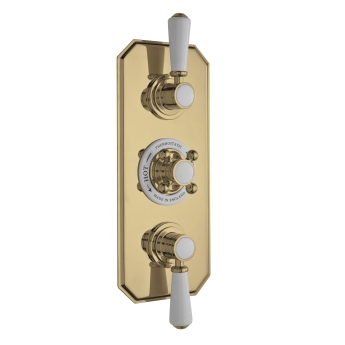

Delphi Windsor Brushed Brass 2-Outlet Triple Concealed Shower Valve
Three controls and two outlets on this Delphi Windsor concealed shower valve in brushed brass: an on-off handle each for the fixed overhead and the handset kit, with the temperature set from the middle, so they can run alone or together. The stepped plate, mitred at the corners, grows to 280mm by 120mm and carries the white ceramic lever and metal crosshead detail of the range. The body and all the pipework sit behind the wall, so only the plate and handles break the tiling.
Product Features
- Three-handle shower valve, including the brushed brass concealing plate and the valve body
- Two outlets with separate controls, for an overhead and handset kit, alone or together
- Three controls: centre sets the temperature, outer two open one outlet each, alone or together
- Thermostatic cartridge holds your set temperature to within 1 degree C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 280mm x 120mm plate, needing a recess 86mm deep
- Works between 0.1 and 3.0 bar
- Delivers 5.5 litres per minute at 0.1 bar, 13 at 0.5 bar, 20 at 1.0 bar
- 3 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
