Delphi Windsor Brushed Brass Dual Concealed Shower Set with Fixed Head and Slide Rail Kit

Delphi Windsor Brushed Brass Dual Concealed Shower Set with Fixed Head and Slide Rail Kit

A brushed brass Windsor set scaled for the average British bathroom, where a 12 inch rose is simply too much overhead. The 200mm domed apron head sits on a round arm that drops the water straight down, and the 750mm traditional rail below it takes the same white ceramic handled handset.

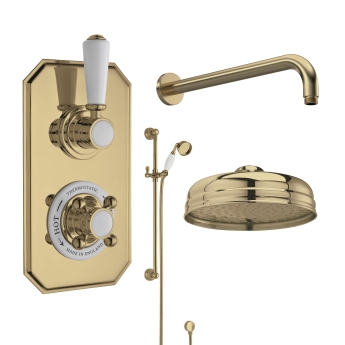

Two controls run the concealed thermostatic valve, one for the temperature and one that opens the shower and diverts between the head and the rail. Valve, 200mm head, 335mm arm and slide rail kit are supplied for one price, wall outlet elbow included.

Bundle Contents

• 1 x Delphi Windsor Brushed Brass 2-Outlet Dual Concealed Shower Valve
• 1 x Delphi Traditional Brushed Brass Fixed Shower Head 200mm x 200mm
• 1 x Delphi Round Brushed Brass Shower Arm 335mm
• 1 x Delphi Traditional Brushed Brass/White Slider Rail Shower Kit (inc Outlet Elbow)

Shower Valve Features

• Two-handle shower valve, including the concealing plate and valve body in one package
• Two outlets fed through an integrated diverter, one for each accessory in the set

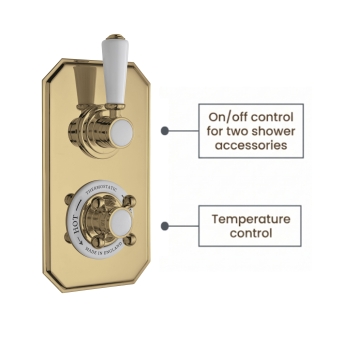

• Two controls: one sets the temperature, the other turns the shower on and diverts between outlets
• Thermostatic cartridge holds your set temperature to within 2 degrees C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale
• 210mm x 120mm stepped plate, mitred at the corners, needing a recess 67mm deep
• 1/2 inch BSP inlets, working from a minimum of 0.5 bar
• Brushed brass finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 200mm diameter apron rose, an 8 inch traditional head with a domed body and stepped banded rim
• 115mm deep overall, so it reads as brassware rather than a flat disc
• Machined from solid brass with a recessed spray plate hiding the nozzles
• Single function, delivering one soft, wide rainfall spray
• Matching round arm projecting 335mm from the finished wall on a 60mm round flange
• 1/2 inch BSP connections between arm and head

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 3 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
