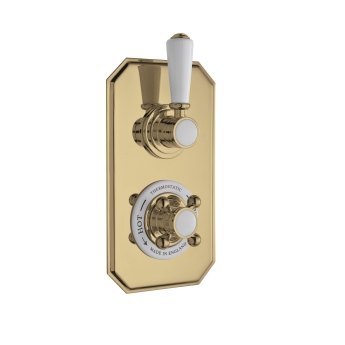

Delphi Windsor Brushed Brass 2-Outlet Dual Concealed Shower Valve
This Delphi Windsor concealed shower valve in brushed brass feeds two outlets from two controls, the metal crosshead setting the temperature and the white ceramic lever turning the shower on and diverting between a fixed overhead and a handset kit. The stepped plate, mitred at the corners, measures 210mm by 120mm and carries the traditional detail the range is known for. The body and all the pipework sit behind the wall, so only the plate and handles break the tiling.
Product Features
- Two-handle shower valve, including the brushed brass concealing plate and the valve body
- Two outlets fed by an integrated diverter, selecting between a fixed overhead and a handset kit
- Two controls: one sets the temperature, the other turns on and diverts between the two outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 210mm x 120mm plate, needing a recess 67mm deep, 1/2 inch BSP inlets
- Works between 0.1 and 3.0 bar
- Delivers 5.5 litres per minute at 0.1 bar, 14 at 0.5 bar, 20 at 1.0 bar
- 3 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
