Delphi Windsor Brushed Pewter 1-Outlet Dual Concealed Shower Valve

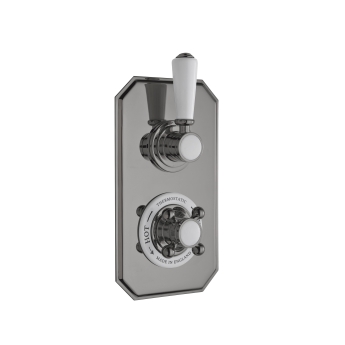

One outlet, two controls and a brushed pewter finish: this Delphi Windsor concealed shower valve opens the flow with a white ceramic lever and holds the temperature on a metal crosshead. The stepped plate is mitred at the corners and measures 210mm by 120mm, and pewter gives the traditional shape a soft, muted grey. All of the working parts sit inside the wall, leaving a clean plate as the only interruption to the tiling.
Product Features
- Two-handle shower valve, including the brushed pewter concealing plate and the valve body
- One outlet, feeding one accessory: a fixed head on an arm or a slider rail kit
- Two controls: one sets the temperature, the other opens and closes the flow
- Thermostatic cartridge holds your set temperature to within 1 degree C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 210mm x 120mm plate, needing a recess 67mm deep, 15mm inlets
- Works between 0.1 and 3.0 bar
- Delivers 5.5 litres per minute at 0.1 bar, 14 at 0.5 bar, 20 at 1.0 bar
- 3 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
