Delphi Windsor Brushed Pewter 1-Outlet Concentric Concealed Shower Valve

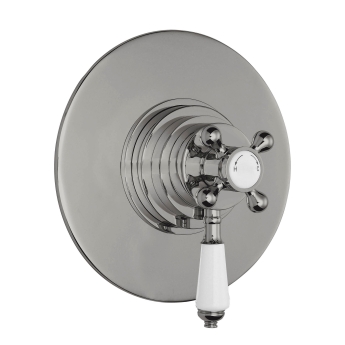

One spindle, two controls: this concentric Delphi Windsor concealed shower valve in brushed pewter carries a crosshead for the temperature above a white ceramic lever for the flow, on a round 196mm by 185mm plate. It feeds one outlet, taking a fixed head on an arm or a slider rail kit. Brushed pewter suits the traditional detailing, and all of the working parts sit inside the wall, leaving a clean plate as the only interruption to the tiling.
Product Features
- Two-handle shower valve, including the brushed pewter concealing plate and the solid brass valve body
- One outlet, feeding one accessory: a fixed head on an arm or a slider rail kit
- Concentric spindle: crosshead sets the temperature, lever beneath opens and closes the flow
- Thermostatic cartridge holds your set temperature to within 1 degree C
- Shuts off if the hot or cold supply fails, so it cannot run scalding hot
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 196mm x 185mm plate, needing a recess 70mm deep, 15mm inlets
- Works from a minimum of 0.1 bar
- Delivers 5.5 litres per minute at 0.1 bar, 14.5 at 0.5 bar, 22 at 1.0 bar
- 3 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
