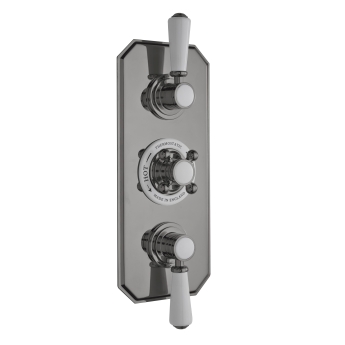

Delphi Windsor Brushed Pewter 2-Outlet Triple Concealed Shower Valve
A three-control Delphi Windsor concealed shower valve in brushed pewter, with two outlets that can be opened one at a time or together and a temperature set from the centre handle. The stepped plate is mitred at the corners, measures 280mm by 120mm, and carries a white ceramic lever and a metal crosshead in the traditional manner. The body and all the pipework sit behind the wall, so only the plate and handles break the tiling.
Product Features
- Three-handle shower valve, including the brushed pewter concealing plate and the valve body
- Two outlets with separate controls, for an overhead and handset kit, alone or together
- Three controls: centre sets the temperature, outer two open one outlet each, alone or together
- Thermostatic cartridge holds your set temperature to within 1 degree C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, precise and limescale resistant in hard water
- Reversible: turn the cartridge 180 degrees instead of re-piping crossed supplies
- 280mm x 120mm plate, needing a recess 86mm deep
- Works between 0.1 and 3.0 bar
- Delivers 5.5 litres per minute at 0.1 bar, 13 at 0.5 bar, 20 at 1.0 bar
- 3 year guarantee against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- Supplied as the valve only; the shower head, arm, handset or shower kit it feeds are bought separately
