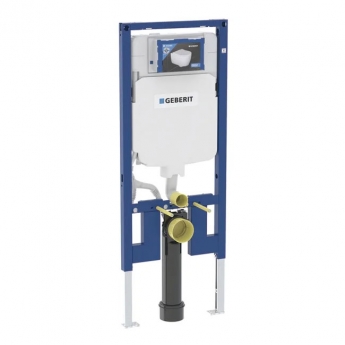

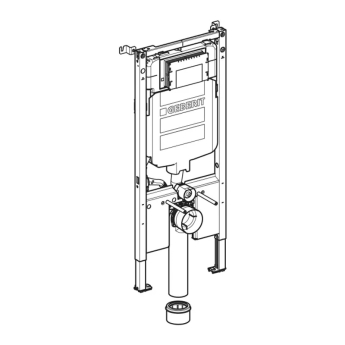

This is the part of a concealed toilet which you rarely see - the frame which holds the cistern and is designed to be hidden behind the wall out of sight. It's an important part of the set-up, and with a wide variety of different sizes of frames and capacities of cisterns to choose from, take the time to choose the correct one for your home and requirements. Gerberit is a well-known name in the world of plumbing installation, and this is a durable and reliable piece of equipment which comes with one of the longest guarantees in the market - a full 10 years. Frames of this type are easy to install, and once in place with the wall in front of the frame, you can easily achieve the minimalist look that is so fashionable in any modern bathroom.
The cistern is designed to be resistant to condensation, and is suitable for installation on many different types of floors. As the frame is designed to be self-supporting, it is also a great choice for homes where the walls are not suitable or strong enough to support the weight of the water. And all at a great value for money price.

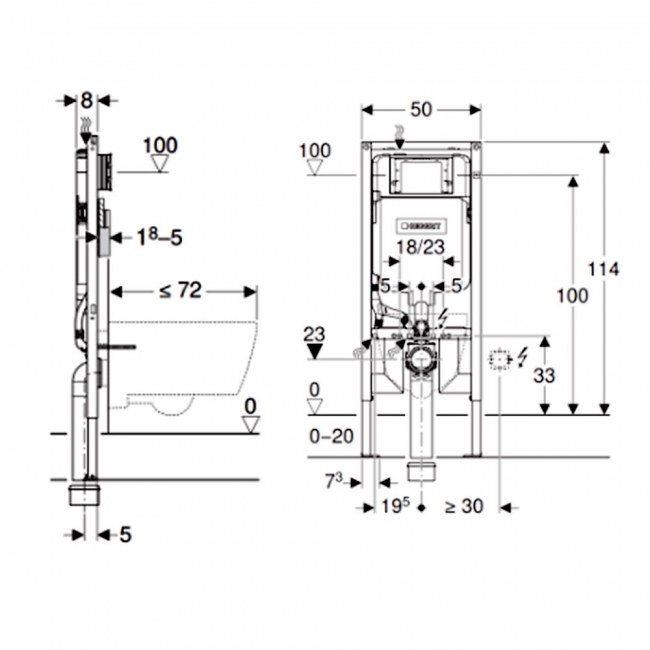

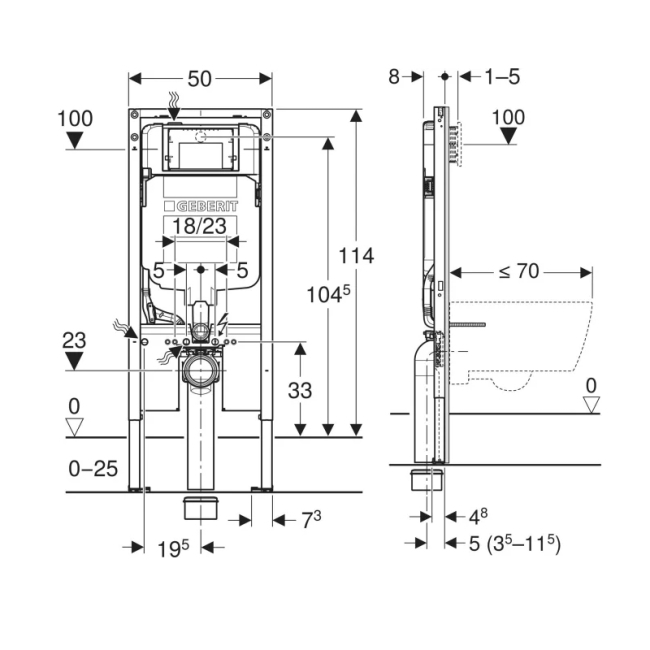

This slimline (8cm deep) Sigma frame & cistern will help you find that extra 4cm of space across a wall when you are working with small bathroom or en-suite planning.
Product Features
- For metal and wood frame walls
- For Geberit Duofix system walls
- For installation in room-height partition walls
- For floor constructions 0-25 cm
- For wall-hung WCs
- Statically self-supporting frame, protected against corrosion with powder coating
- Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
- With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
- Alternative fastening point for wall anchors
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
- Galvanised non-slip leg supports protected against corrosion
- Connection bend can be mounted without tools at different depths, adjustable range 80 mm
- Interrupted crossbar enables a front flush depth for the vertical outlet bend
- Waste connector bend, extended, for connection in floor
- Geberit Sigma concealed cistern 8 cm, fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- For front actuation, suitable for single, dual and stop-and-go flushes
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the top left
- Protection box for service opening, can be cut to length, protects against moisture and dirt
- With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
- Fastening option for electrical connection
- Supplied with a 10 year guarantee from the manufacturer
Important Information
- Flush plate sold separately (See the You May Need)
