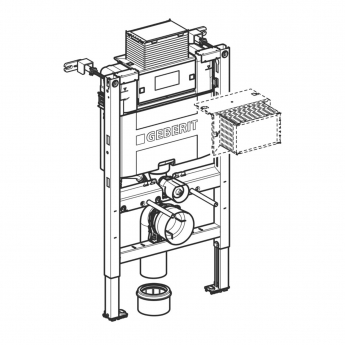

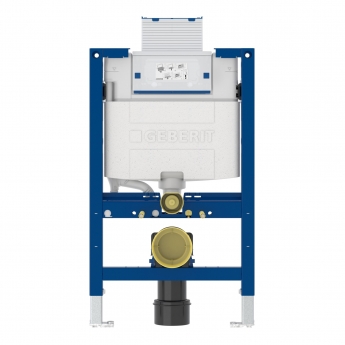

Geberit Duofix 820mm Wall Hung WC Toilet Frame With 120mm Omega Cistern Blue

Designed to last this Geberit Omega frame incorporates tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Dual flush with volume adjustment options to help save water

Leakproof due to one piece blow moulded cistern

Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability

Product Features

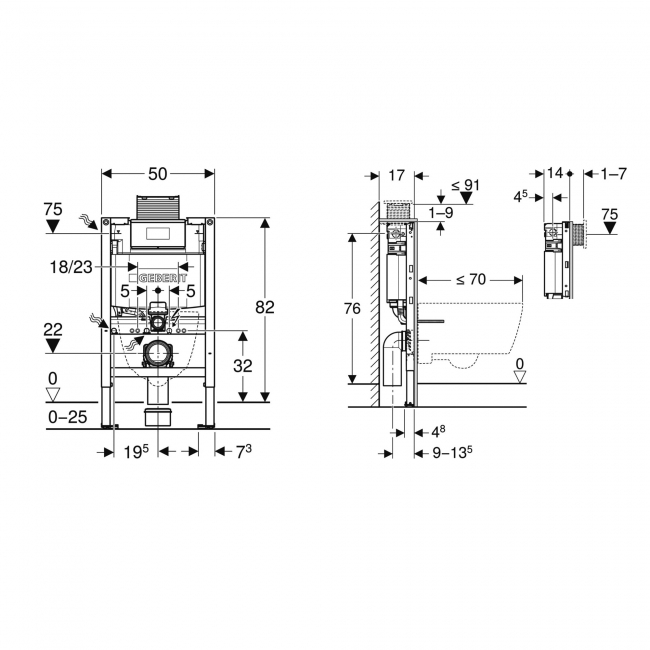

• 820mm high Geberit Omega Frame & Cistern designed for wall-hung WCs
• Sleek, space-saving solution ideal for modern bathrooms
• Compact size allows installation under windows, sloped ceilings, or staircases
• Dual flush system with top or front flush options for flexible installation and water efficiency
• Self-supporting, corrosion-resistant steel frame with galvanized non-slip feet for stability
• Tool-free cistern access for simple installation and maintenance
• Adjustable connection bend and integrated protection box for added convenience
• Includes conduit pipe for shower toilet water feed and power supply
• Compatible with Geberit AquaClean shower toilets
• Perfect for ensuite or guest WC renovations
• Suitable for bathrooms with limited vertical space
• Provides a clean, modern concealed toilet installation
• Enhances overall bathroom style and functionality
• Can be combined with Geberit Omega flush plates for a complete finish
• Adjustable flush volume: 4-7.5L (large), 2-4L (small)
• Operating pressure range: 0.1-10 bar
• Made from powder-coated steel for durability
• Water supply connection available on left or rear-left side
• Fully insulated 120 mm Omega cistern, EN 14055 Class II compliant
• Includes R 1/2" water supply connection with angle stop valve
• WC connection set (90 mm) and 90 degree PE-HD bend
• Adaptor for 90/110 mm connection
• Protection box, pull disc, wall anchors, and fixings included
• Supplied with a 10 year guarantee on cistern ( 50 year on spare parts ) from the manufacturer

Important Information

• Flush plate sold separately, (See the You May Need)
