Geberit Duofix Basin Frame Pre-Wall, 820mm x 500mm, Blue

Reference: GB111494001
  • Free Delivery*Approx 3 Working Days

  • Product Guarantee 25 Years GuaranteeOn this product

  • Write Review

    Write a Review

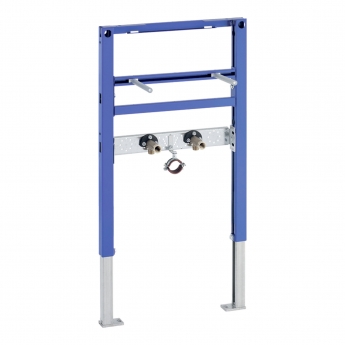

The Geberit Duofix Basin Frame Pre-Wall, 820mm x 500mm, Blue comes from the exclusive Duofix range of basin frame manufactured by Geberit. This Duofix Basin Frame by Geberit comes complete with PreWall fixings, brackets and backplate elbows. Despite being concealed under the wall, this frame gives massive support to your wall hung WC.

Geberit Duofix 111.494.00.1 Basin Frame Features:


  • Powder coated, ultramarine blue finish frame
  • Self-supporting product
  • Includes tap connection plate with adjustable height and depth
  • Comes with a fastening outlet bend, enabling adjustable height
  • Supplied with backplate elbows and chrome isolating valves with 3/8" BSP connection
  • For installation in a partial-height Duofix system wall in front of a solid or drywall construction
  • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
  • Fastening for connection bend, height-adjustable and sound-absorbing
  • Crossbar for tap adjustable in height and depth
  • Self-adhesive sealing washer, fleece-laminated
  • Protection plug for pressure test with cold water up to max. 15 bar / 1500 kPa
  • Comes with an extensive 25 year guarantee from Geberit

Geberit Duofix 111.494.00.1 Basin Frame Video:




Geberit Duofix 111.494.00.1 Basin Frame Specifications:


Width 500mm
Height 820mm
Material Steel
Finish Blue
Collection Duofix
Style Contemporary
EAN Barcode 4025416757054
Manufacturer Part Number 111.494.00.1

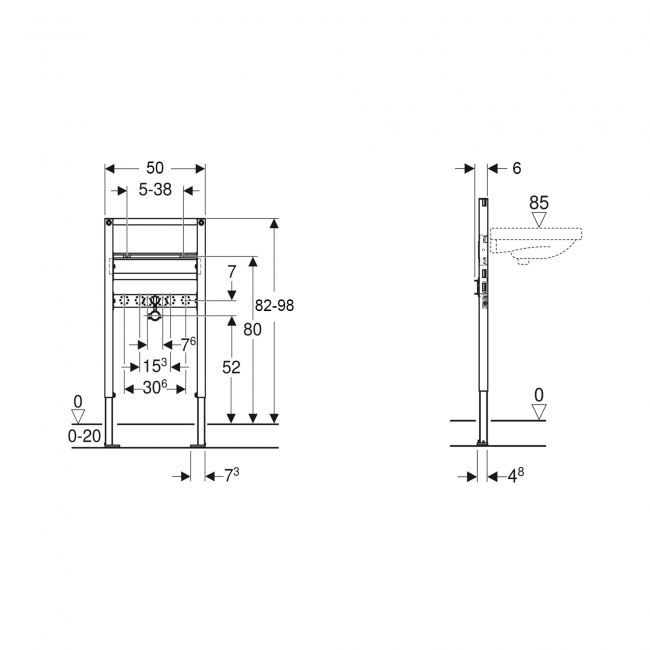

Dimensional Diagram - Geberit Duofix Basin Frame Pre-Wall, 820mm x 500mm, Blue
