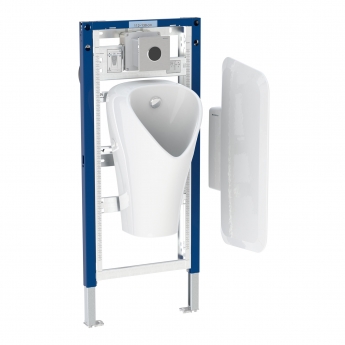

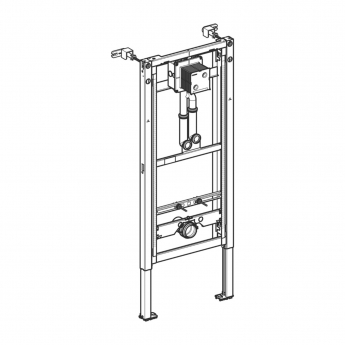

Geberit Duofix Frame for Urinal With Pipe Interrupter 1300mm x 500mm Blue

Product Features

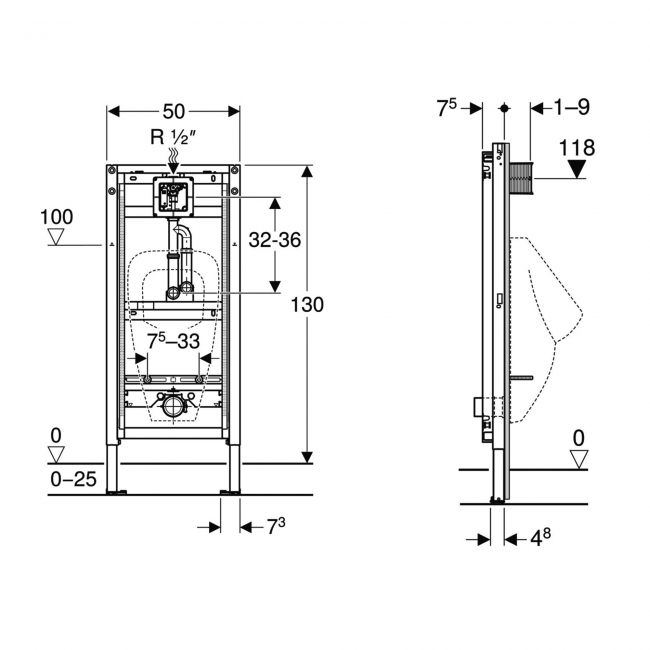

• Geberit Frame for Urinal 1300 mm high, designed for modern urinal systems
• Versatile, robust, and installation-friendly support frame
• Includes pipe interrupter, concealed housing for flush controls, and height-adjustable fastening
• Suitable for both new builds and renovation projects
• Ideal for installation in metal or wood stud walls and room-height partitions
• Self-supporting powder-coated, corrosion-resistant steel frame for long-lasting durability
• Floor construction height range of 0 - 250mm
• Integrated pipe interrupter prevents backflow to maintain hygiene
• Width and height-adjustable urinal fasteners (M8) for flexible installation
• Built-in conduit pipe allows rinsing of the supply line
• Service box measuring 105 x 105 mm, cuttable without tools
• Sound-absorbing fixings help reduce operational noise
• Can be adapted for urinals with spray heads
• Flow pressure range: 1-8 bar
• Test pressure (water): 16 bar
• Test pressure (air/inert gas): 3 bar
• Maximum water temperature: 30 degrees Celsius
• Flow rate at 1 bar: 18 L/min without limiter, 10.8 L/min with limiter
• Includes 1/2 BSP water supply connection
• PVC straight connector (50 mm)
• Protection box with cover
• Urinal trap (50 mm) with seal
• Inlet connection pipe (32 mm)
• Two wall anchors
• Fastening and protection materials included
• Supplied with a 10 year guarantee from the manufacturer

Important Information

• Flush plate sold separately (See the You May Need)
