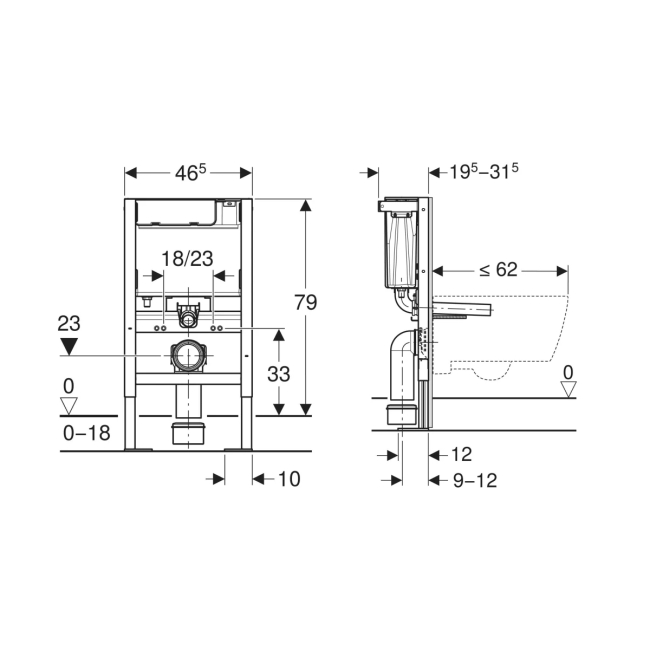

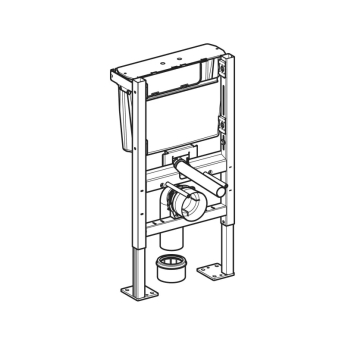

The Geberit Duofix 790mm Low-Height Frame is a specialized, statically self-supporting solution engineered to install premium wall-hung toilets in spaces with strict height restrictions. Standing at just 790mm tall with an ultra-compact width of 465mm, this frame is uniquely optimized for seamless integration into bathroom furniture, vanity cabinetry, and part-height pre-walls or wood/metal stud frame structures.
Built with Geberit's legendary powder-coated steel frame and a fully insulated, low-height pneumatic cistern, it offers quiet dual-flush performance while providing maximum flexibility for modern, space-saving layouts.
Bundle Contents
- 1 x Geberit Duofix WC Wall Hung Frame
- 1 x Integrated Low-Height Concealed Cistern
- Galvanised Leg Supports with large foot plates
- Connection Bend for tool-free assembly
- Flush Pipe Connection featuring a compression joint
- Protection Plugs for installation phase
Cistern Features
- Low Installation Profile specifically designed with a low height to accommodate tight vertical spaces
- Equipped with smooth pneumatic operation, perfectly optimized for dual-flush setups
- Comes with a practical factory setting of 5.8 litres for a full flush and 3 litres for a partial flush
- Cistern fully insulated against condensation
- Features a 1/2 inch water supply connection conveniently positioned on the bottom left
- WRAS approved
- Guarantee: 10 Year on Alpha and Concealed cisterns, 5 year on Flush plate (25 Year on spare parts)
WC Frame Features
- Built with a heavy-duty steel frame protected by a durable powder coating
- Approved for installation inside bathroom furniture cabinetry, part-height prewalls, and metal or wood stud frame structures
- Galvanized leg supports adjust effortlessly to handle floor build-ups ranging from 0-180mm
- Perfectly fits wall-hung WC pans with connection dimensions conforming to EN 33 and a projection of up to 620mm
- The connection bend can be securely locked into position entirely without tools
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Incorporates large foot plates designed to easily accommodate raised power supply lines in floors
- Top or front actuation
- Water supply connection on the rear or top centre
- Conduit pipe for Geberit AquaClean shower toilets & fastening option for electrical
- Supplied with a 10 year guarantee ( 50 year on spare parts ) from the manufacturer
Important Information
- Flush plate sold separately, (See the You May Need)
