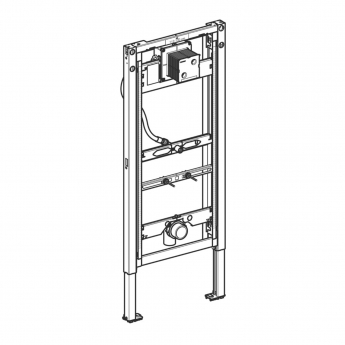

Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue

Product Features

• Geberit Urinal Frame with adjustable height designed for modern urinals featuring spray head flushing

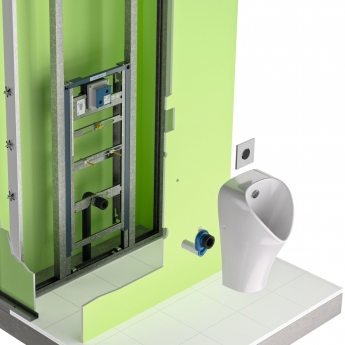

• Suitable for metal or wood-frame walls and adaptable to room-height or part-height pre-walls
• Flexible solution ideal for commercial and public restroom installations
• Built for durability with corrosion-resistant materials and a powder-coated finish
• Features tool-free connectors for fast and simple installation

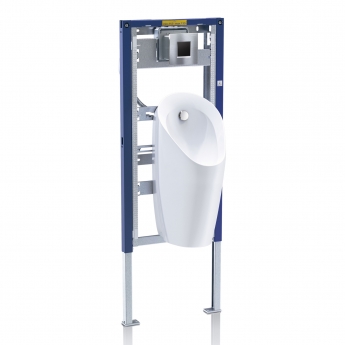

• Pre-configured mounting points compatible with Geberit Preda and Selva urinals
• Supports Geberit urinal flush controls with integrated concealed housing and electrical connections

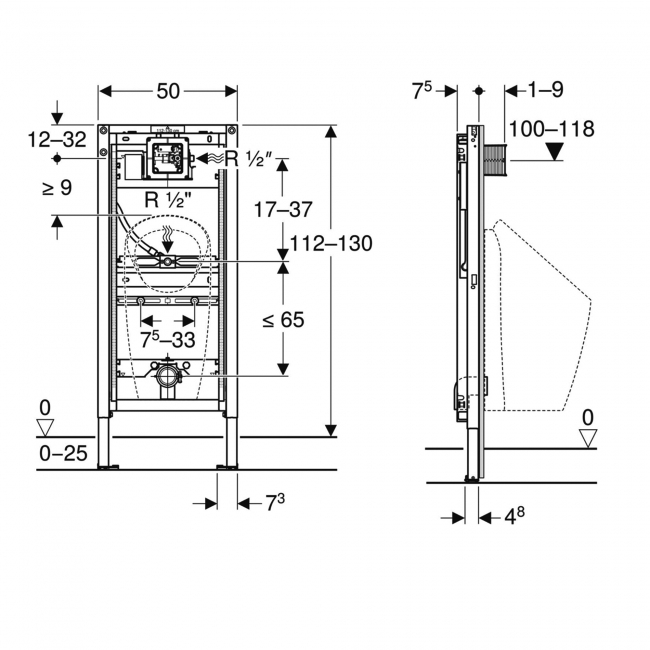

• Adjustable element height from 1120-1300mm to suit different urinal sizes
• Universal application compatible with various pre-wall and partition setups
• Statically self-supporting frame construction ensures long-term strength and stability
• Integrated universal concealed housing for spray head flush systems
• Height-adjustable, sound-absorbing urinal fasteners reduce operational noise
• Built-in conduit pipe and flush hose with guide prevent stagnant water buildup
• Compact 105 x 105 mm service opening cover easily cut to length for maintenance access
• Suitable for high-traffic commercial bathrooms, public toilets, offices, schools, and healthcare facilities
• Flow pressure range: 1-8 bar
• Test pressure (water): max. 16 bar
• Test pressure (air): max. 3 bar
• Maximum operating temperature: 30 degrees celsius
• Flow rate at 1 bar: 18 L/min (no limiter) / 10.8 L/min (with limiter)
• Includes 1/2 BSP elbow tap connector
• PE-HD connection bend (63/50 mm)
• Urinal trap (50 mm) with seal
• Protection box with cover
• Fastening and protection materials included
• Supplied with a 10 year guarantee from the manufacturer
