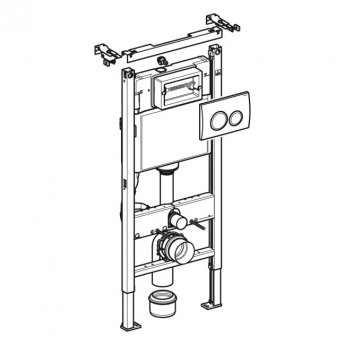

Geberit Duofix 1120mm Wall Hung WC Frame with Delta Cistern and Delta20 Flush Plate

Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Dual flush with volume adjustment options to help save water.

Leakproof due to one piece blow moulded cistern.

Compatible with all Geberit flush buttons.

Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability.

Product Features

• Complete with Delta21 gloss chrome flush plate
• Brackets are included
• Galvanized feet
• Frame top open
• Concealed cistern with front actuation
• For drywall construction
• For installation in part or room-height prewall installations
• For wall-hung WCs with projection up to 62 cm
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• Self-supporting frame, powder-coated
• Concealed cistern fully insulated against condensation
• Connection bend can be mounted without tools
• Feet adjustable 0-20 cm
• Foot plates made of plastic
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Foot plate depth suitable for installation in U-profiles UW 50
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame with 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection
• Simple Maintenance: Simply remove the flush plate for access to all important parts
• Tested Impermeability: Every Geberit cistern is individually tested to guarantee water tightness
• Acoustic solutions with the Duofix frame mean it's all quiet behind the scenes
• Hygiene: No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
• Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg) when combined with Geberit and Twyford Ceramics
• Supplied with a 10 year guarantee on cistern and 5 year on the flush plate ( 25 year on spare parts ) from the manufacturer
