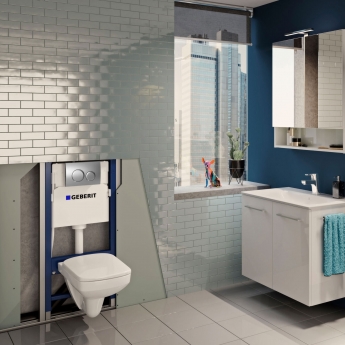

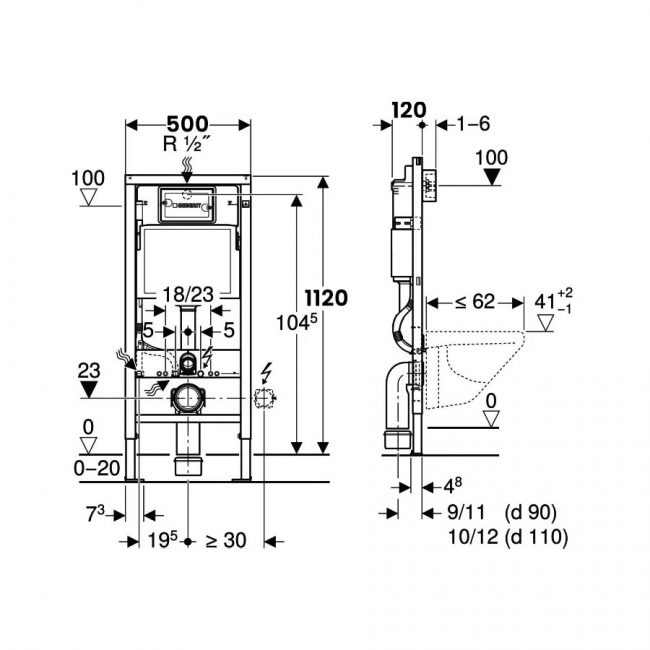

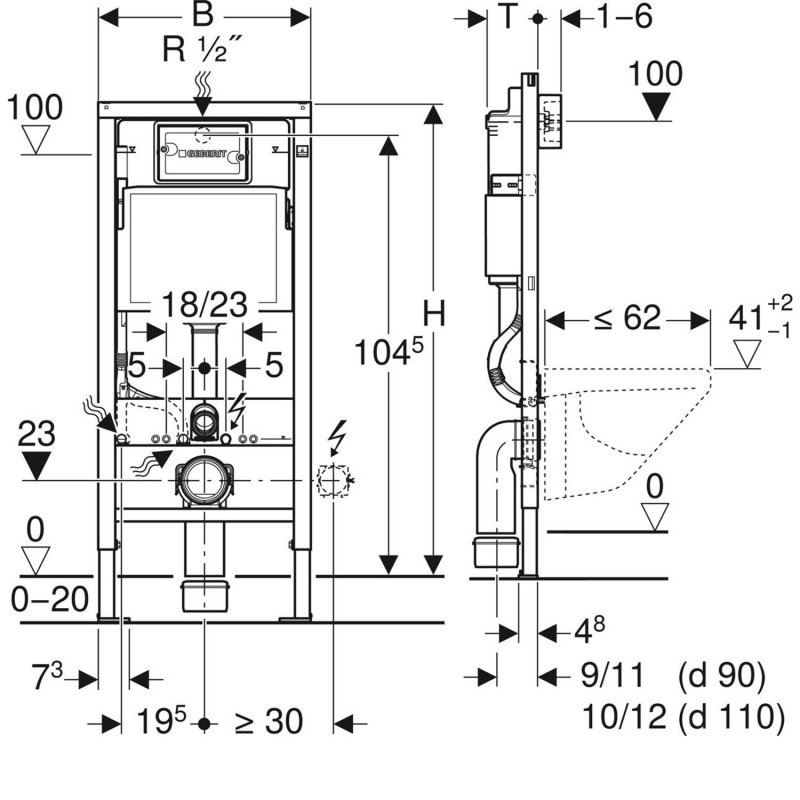

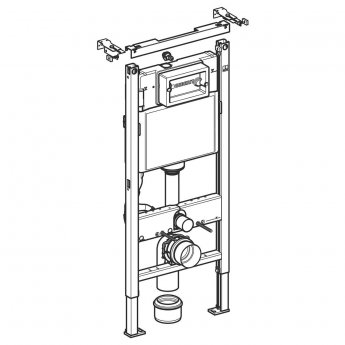

Geberit Duoflix Wall Hung Toilet Frame with Delta Concealed Cistern 500mm W x 1120mm H

Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Dual flush with volume adjustment options to help save water.

Leakproof due to one piece blow moulded cistern.

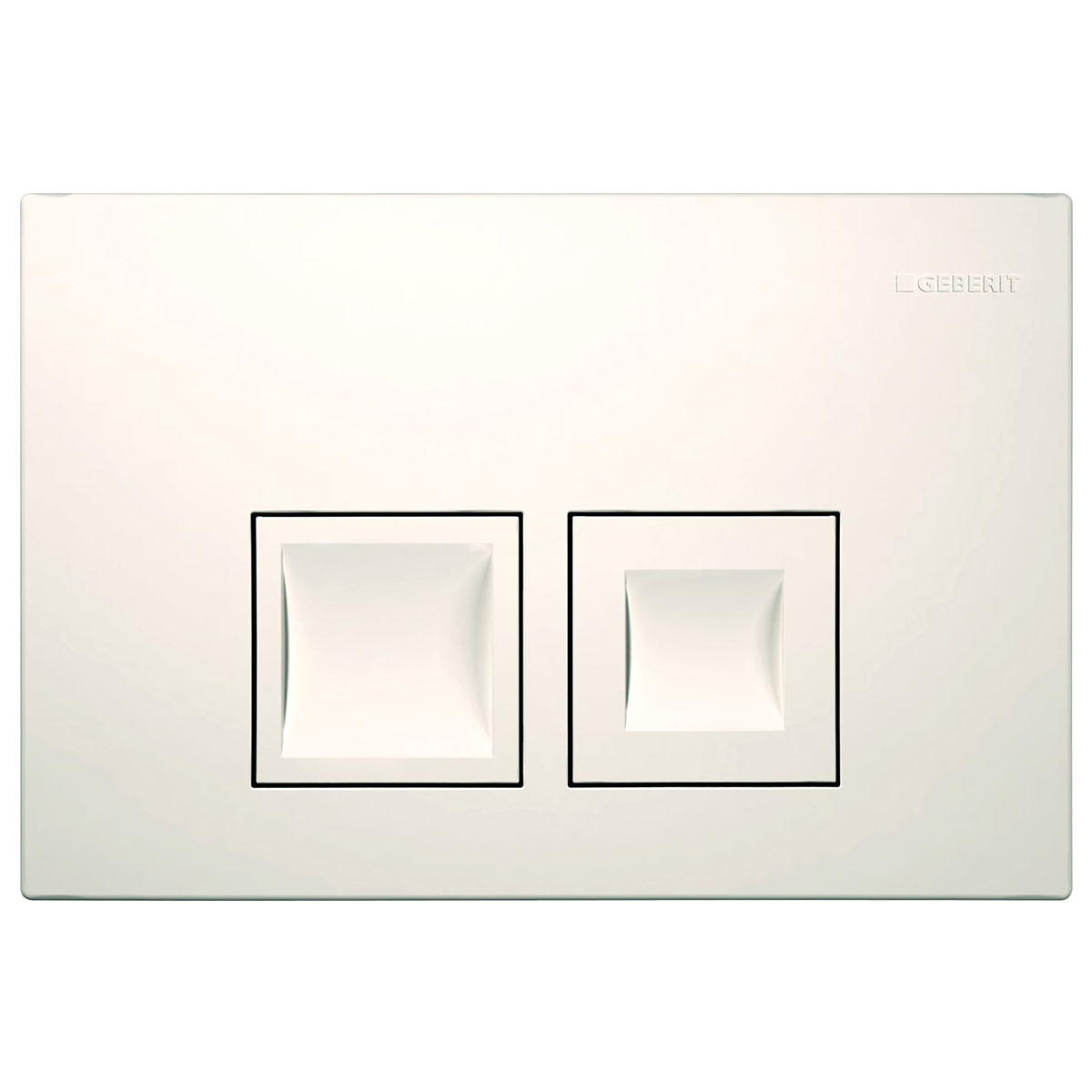

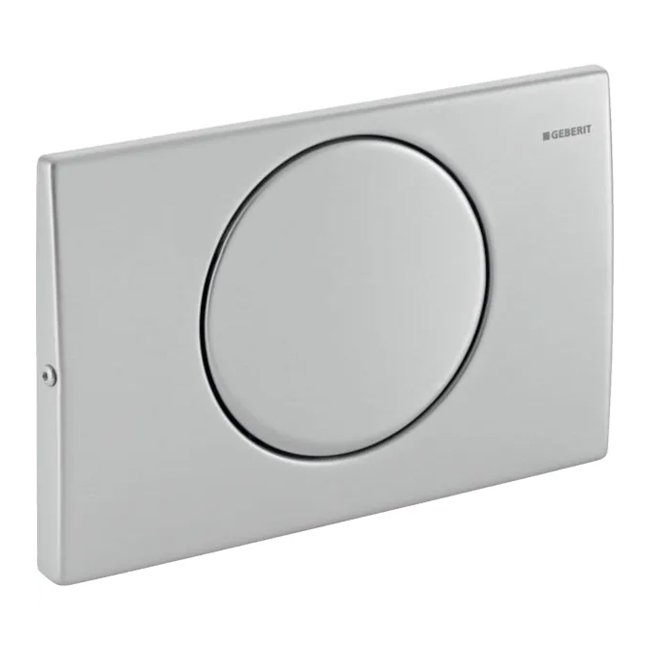

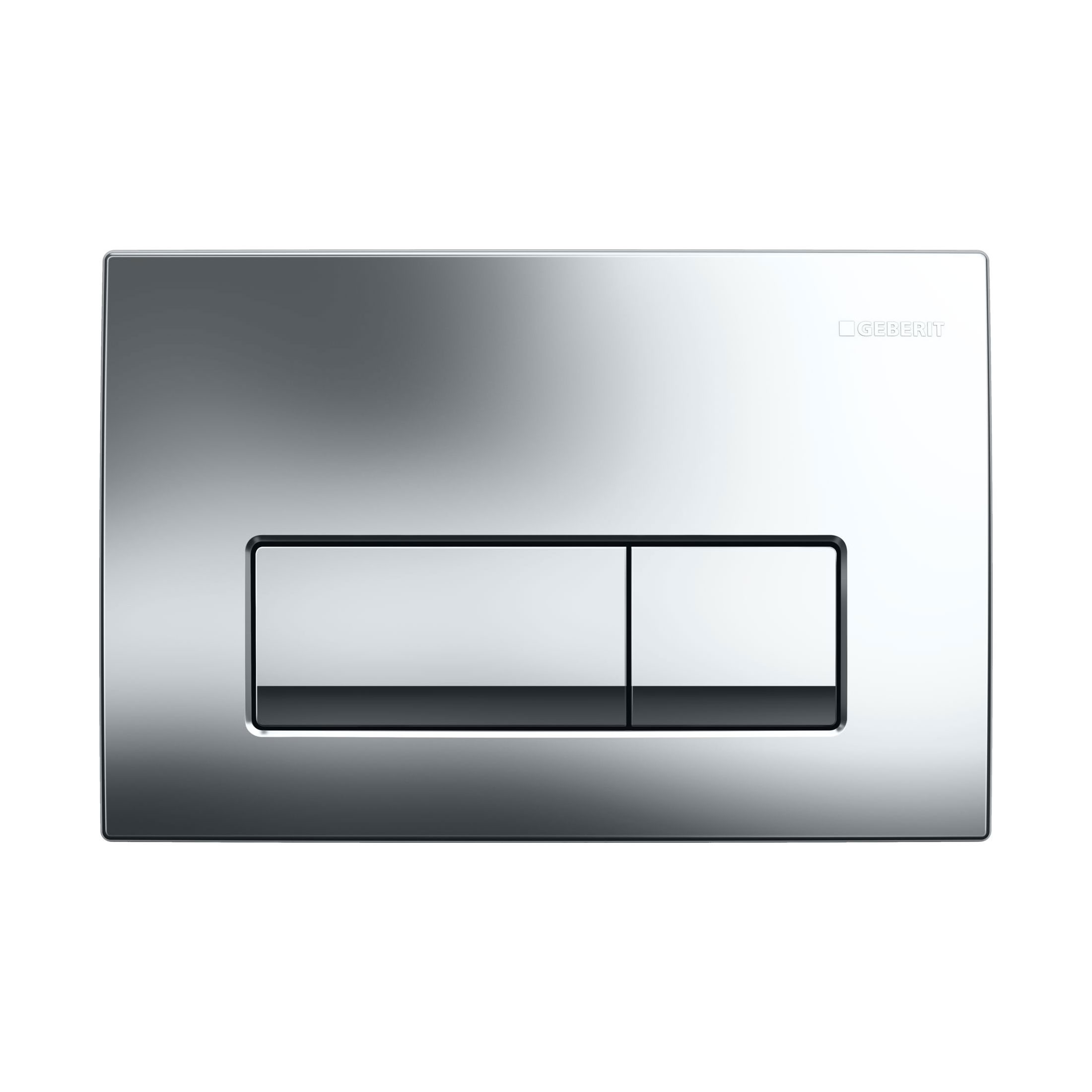

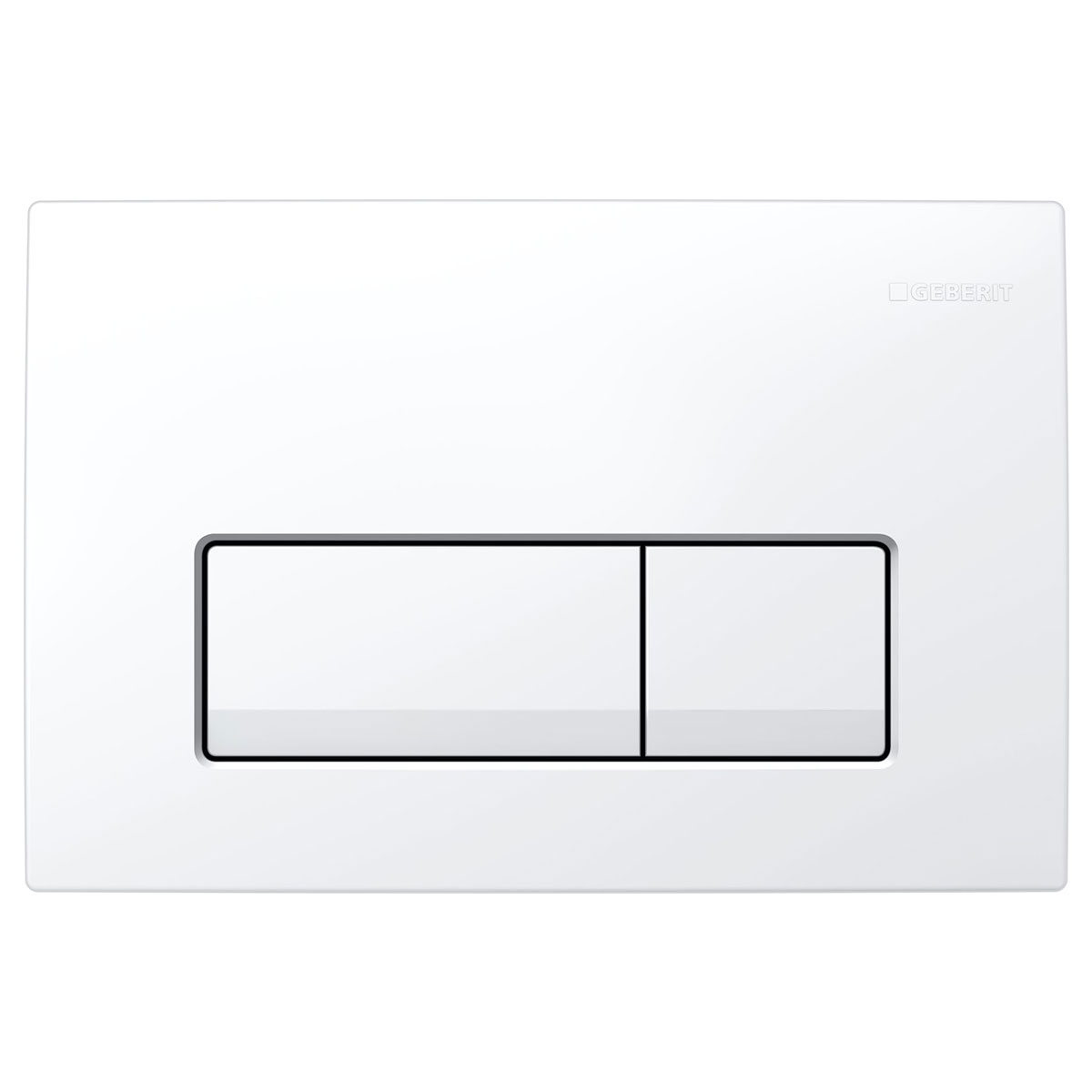

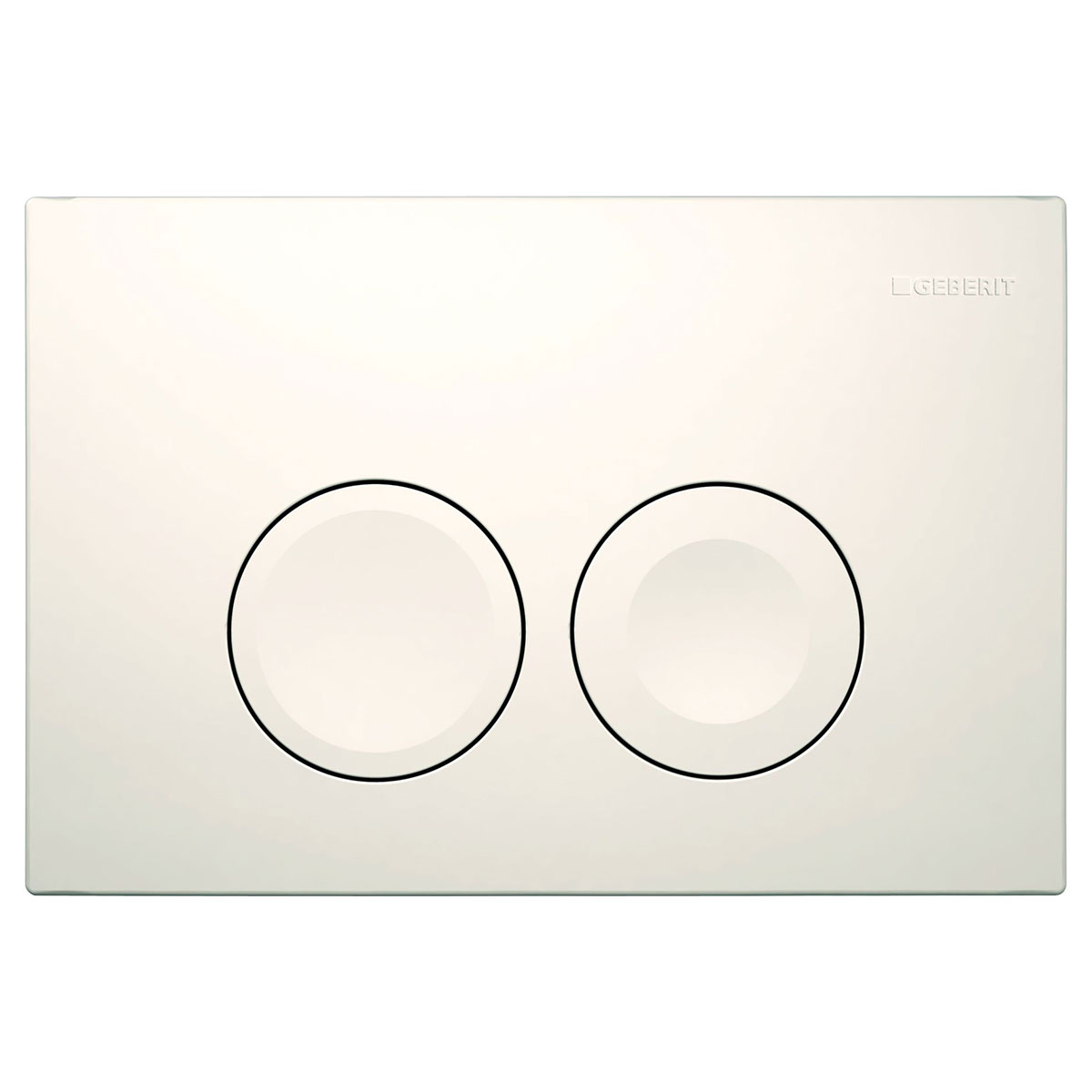

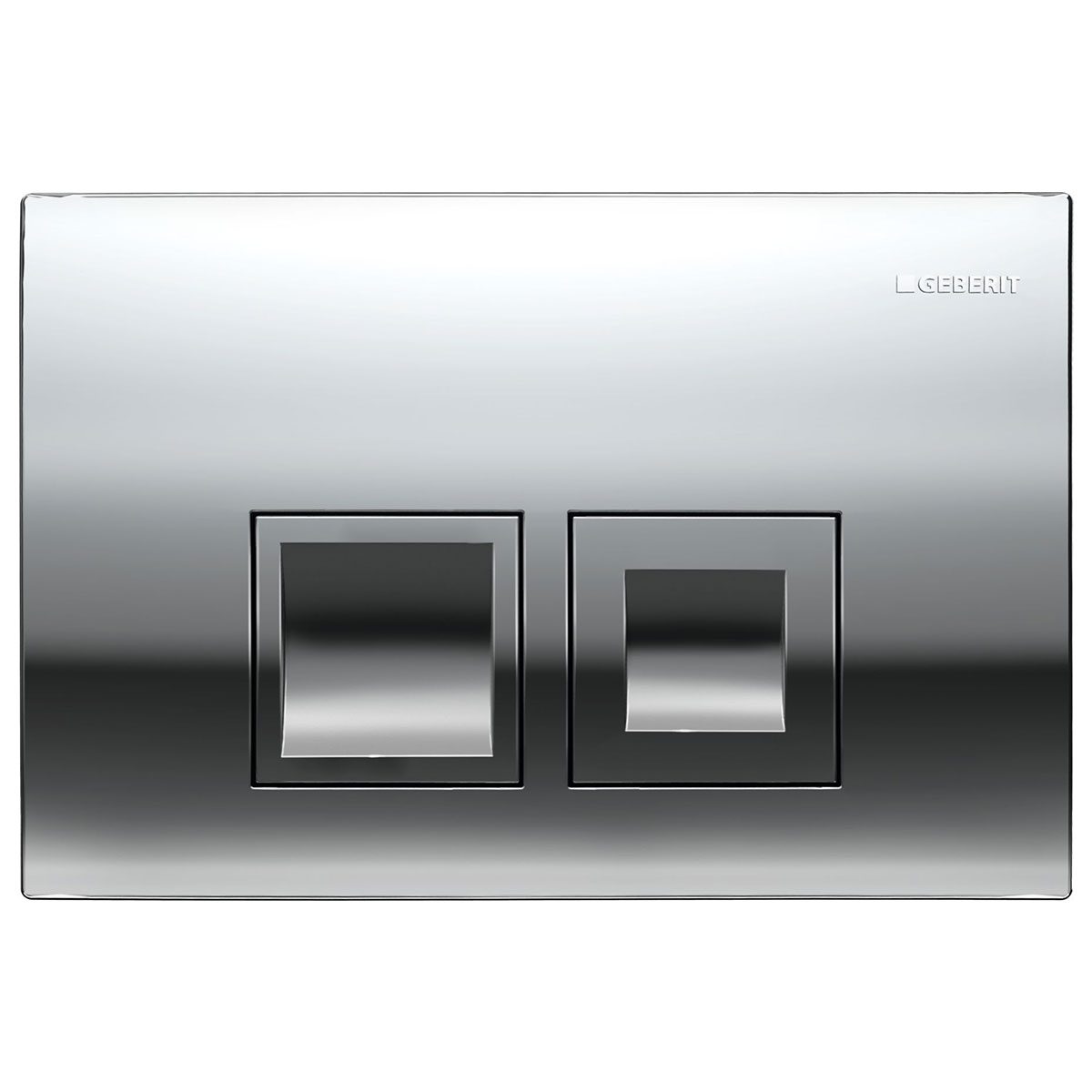

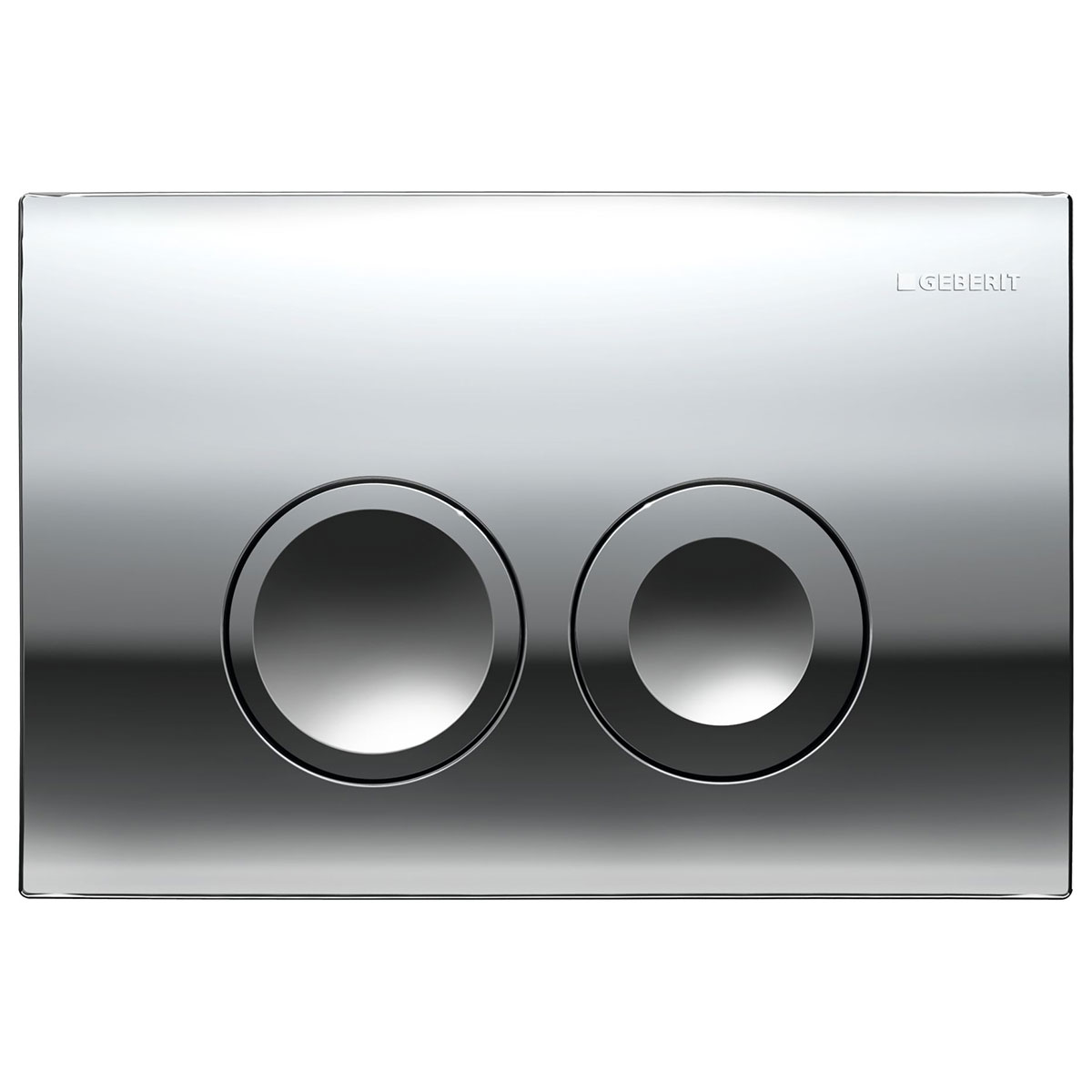

Compatible with all Geberit flush buttons.

Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability.

Product Features

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0-20 cm
• Statically self-supporting frame, protected against corrosion with powder coating
• Frame top open
• Frame with 9 mm drilling holes for fastening in wood frame construction
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Operating temperature, water 25 Degree C
• Flush volume, factory setting 5.8 / 3 l
• Flush volume large, adjustment range 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range 2-4 l
• Foot plates made of plastic
• Angle stop valve R 1/2", with adaptor ring
• Protection box for service opening, made of polystyrene foam
• 2 distance bolts
• 2 wall anchors
• Connection set for WC, 90 mm
• Connection bend 90 degree made of PE-HD, 90 mm
• Adaptor socket made of PE-HD, 90 / 110 mm
• 2 protection plugs
• Crossbar for panelling support
• 2 threaded rods M12
• Fastening material
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
• With conduit pipe for connection to Geberit AquaClean
• Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution
• Simple Maintenance: Simply remove the flush plate for access to all important parts
• Tested Impermeability: Every Geberit cistern is individually tested to guarantee water tightness
• Acoustic solutions with the Duofix frame mean it's all quiet behind the scenes
• Hygiene: No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
• Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg) when combined with Geberit and Twyford Ceramics
• Wall fixing brackets included (not suitable for system rail)
• Supplied with a 10 year guarantee on cistern ( 25 year on spare parts ) from the manufacturer
