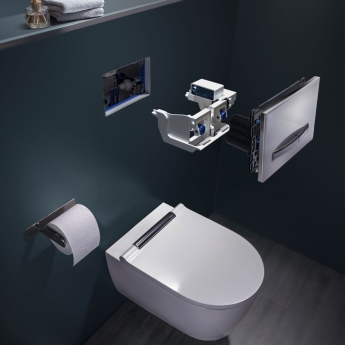

This next-generation redesigned Geberit Sigma 980mm H Frame & Cistern for Wall-Hung WC's combines 60 years of engineering expertise and installer feedback to deliver you an enhanced performance, faster installation, and superior sustainability.

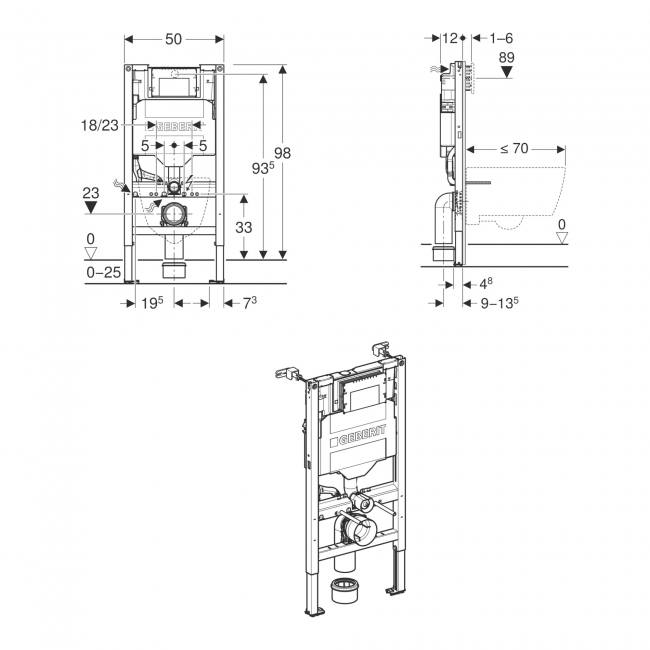

At 98cm high this Geberit frame is perfect for under window installations or for part-height installations in drywall construction
Bundle Contents

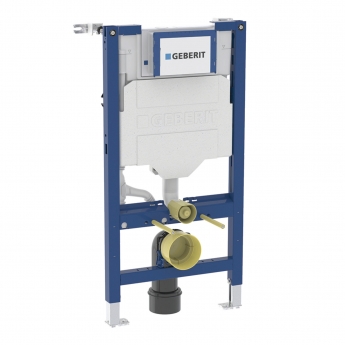

- 1 x Geberit Sigma 980mm WC Frame
- 1 x Geberit Sigma Concealed Cistern
- Geberit Water supply connection R 1/2" with integrated angle stop valve and hand wheel
- Geberit Protection box for service opening
- 2 x Geberit wall anchors
- Geberit Connection set for WC, 90mm
- Geberit PE-HD Connection bend 90mm
- Geberit PE-HD adaptor socket 90/110mm
- Geberit Fastening and protection materials
WC Frame Features
- Designed for Wall-Hung WC's in part- or room height pre-walls or partition walls
- For wall-hung WCs with projections up to 70 cm
- Over 30% quieter than before
- Optimised Hydraulics with upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large)
- Compatible with WC pans up to 700mm deep, ideal for futureproofing your bathroom
- Up to 10x better flush performance with TurboFlush-ready compatibility (when combined with a Geberit TurboFlush pan)
- Pull-Out Side Fastening Plate for faster vertical stud mounting
- Hexalobular Screws offer tool flexibility with better grip for power tools
- Alternative Wall Anchor Positions accommodate tricky wall conditions like pipes or cables
- Adjustable Pipe Bracket for stress-free connection bend installation
- Additional Laser Markings on the frame for accurate centre positioning of the threaded rods and connection bend
- Leg Support Adjustable to 25cm, ideal for modern, high floor constructions
- Long-term spare parts support (50 years)
- WRAS Approved
- Supplied with a 10 year guarantee ( 50 year on spare parts ) from the manufacturer
Cistern Features
- Pull-out vertical plate for lateral fastening above the element on metal or wood studs
- Alternative fastening points for wall anchors & rotating foot plates
- Connection bend can be mounted without tools at different depths, adjustable range 45mm
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection box can be cut to length, protects against moisture and dirt
- With conduit feed pipe for Geberit AquaClean shower toilets
- Fastening for electrical connection and Power & Connect Box
- Compatible with 130+ Geberit Sigma flush plate finishes & styles
- Strength-tested to bear 400kg of weight when combined with Geberit Wall-Hung Toilets
Important Information
- Flush plate sold separately (See the You May Need)
