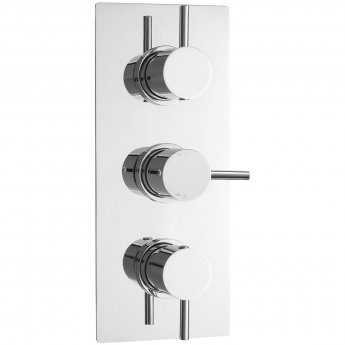

Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome
Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome

Nuie Quest Concealed Triple Handle Shower Valve With Diverter - Chrome

Quick Code: 2791668
Ref: HAQUEV56
Nuie
£246.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £20.58 at 0% APR using PayPal.
Find out more
PayPal Credit

Stock Due

Stock expected to arrive on 07/01/2026.

Free Delivery Available

Delivery postcode restrictions apply

Check

Even the smallest touches in your bathroom can be the most stylish. The Nuie Quest Concealed Shower Valve with Diverter is the ideal addition to your bathroom. Part of the Nuie bathroom collection, this thermostatic shower valve can be fitted to your shower both vertically or horizontally.

It not only offers great control over the temperature of your shower but it also protects you against scalding, as well as performing in case of hot or cold water failure.

The cartridge is designed to be resistant to the build up of calcium, even in hard water areas, and the valves are suitable for use will all systems.

Easy to use and made from solid brass, this shower valve comes with a 5 year guarantee. So you can be sure of the quality.

Product Features

  • Shower valve supplies water to 3 outlets
  • Can be fitted vertically or horizontally
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Rounded edges giving a minimalist sleek design
  • Accurate flow control
  • Triple handle valve only
  • Top control operates two shower outlets, centre adjusts temperature, bottom control operates the other shower outlet
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 and replace
  • Manufactured from solid brass
  • Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information
Show More

Valve TypeThermostatic
Shower Valve PositionConcealed
DiverterYes
Valve Controls3
Shower Valve Outlet3
Handle TypeLever
Mounting TypeWall

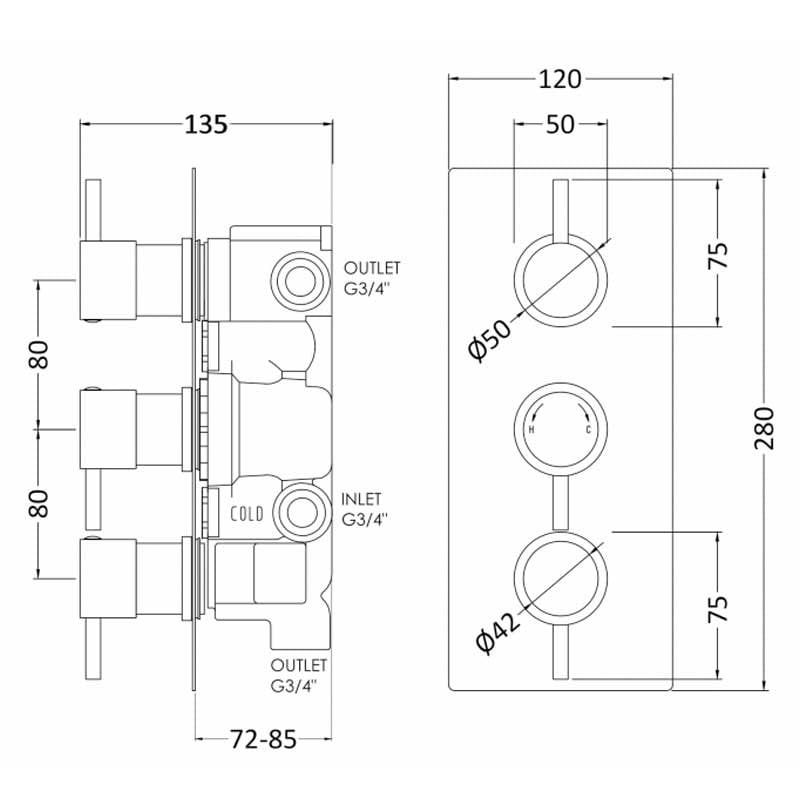

Inlet Connection Size15mm & 22mm
Height280mm
Width120mm
Depth72-85mm
BrandNuie
MaterialBrass
FinishChrome
BackplateYes
Minimum Pressure0.5 Bar
Maximum Pressure3.0 Bar
Weight5 kg
StyleModern
EAN Barcode5055275805770
WRAS ApprovedYes
WRAS Approval Number250602040
Manufacturer Part NumberQUEV56
Flow Rate @ 0.5 Bar13 l/min
Flow Rate @ 1.0 Bar17 l/min
Flow Rate @ 2.0 Bar24 l/min
Flow Rate @ 3.0 Bar27 l/min
