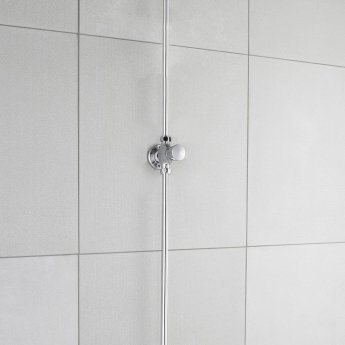

Perfect for commercial use, the Nuie Self Closing Exposed Shower Valve is a non-concussive valve that includes a handy timed flow to save water. With the many people that will use a shower in a commercial property, water wastage is a big problem. This valve goes a long way to help solve that problem and save you money in the long run. Plus, it's extremely flexible as it can be used with just about any plumbing system, from 0.2 bar and above.
Nuie Self A3788 Shower Valve Non Concussive Features:
- Provides a timed flow of water (factory set to 15 seconds)
- Suitable for use with Commercial Shower Kits
- Suitable for almost all plumbing systems and water pressures (0.2 bar and above)
- Supplied with a 1 year guarantee from the manufacturer
Nuie Self A3788 Shower Valve Non Concussive Specifications:
Valve Type |
Manual |
Shower Valve Position |
Exposed |
Diverter |
No |
Valve Controls |
1 |
Handle Type |
Round |
Mounting Type |
Wall |

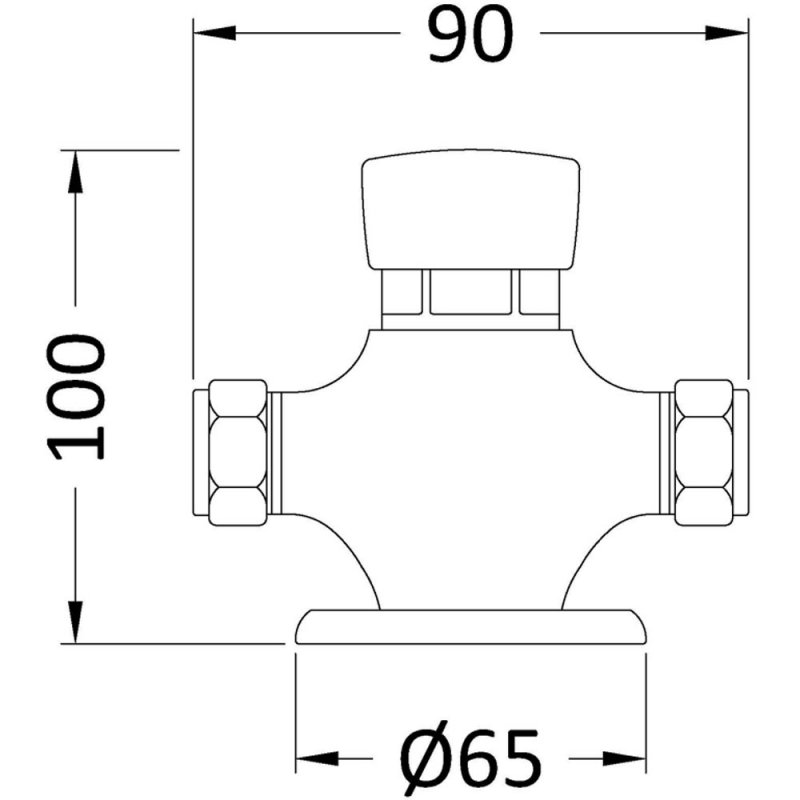

Height |
100mm |
Width |
65mm |
Depth |
90mm |
Connection Centres |
93.5mm |
Inlet Connection |
15mm (1/2 BSP) |
Material |
Brass |
Brand |
Nuie |
Finish |
Chrome |
Backplate |
No |
Minimum Pressure |
0.2 Bar |
Maximum Pressure |
3.0 Bar |
---|
Weight |
0.53 kg |
Style |
Modern |
Flow Rate - 0.1 Bar |
4.7/min |
Flow Rate - 0.5 Bar |
12.4 /min |
Flow Rate - 1.0 Bar |
17.4 l/min |
Flow Rate - 2.0 Bar |
24.7 l/min |
Flow Rate - 3.0 Bar |
31 l/min |
EAN Barcode |
5055369016570 |
Manufacturer Part Number |
A3788 |
