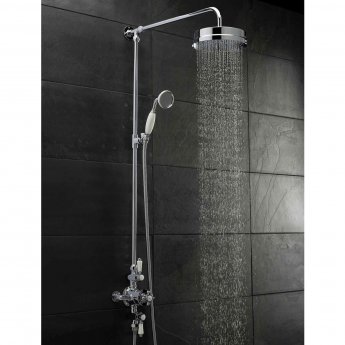

The Nuie Victorian Exposed Shower Valve Triple Handle - Chrome is a model from the exciting Traditional collection of shower valves. The Traditional range features a classic body and traditional lever and crosshead handles with a selection of co-ordinating pieces. Efficacious, charming and unique, this is the Thermostatic Shower Valve from the house of Nuie. Supplied complete with a superb 5 years guarantee, you can be assured that you are receiving an item of the highest quality.
Nuie Victorian A3089E Shower Valve Features:
- Bring a Victorian sensibility to your bathroom with this traditional shower
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The patented cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- Manufactured from solid brass
- Supplied with a 5 year guarantee from the manufacturer (12 months on moving parts)

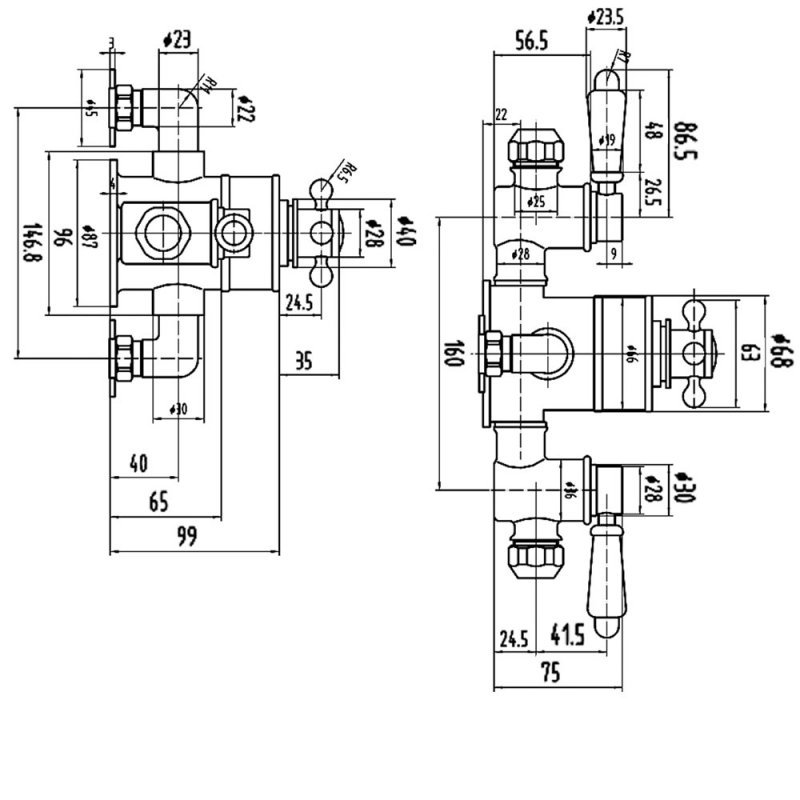

Nuie Victorian A3089E Shower Valve Specifications:
Valve Type |
Thermostatic |
Shower Valve Position |
Exposed |
Shower Valve Height |
333mm |
.
Shower Valve Width |
179mm |
Shower Valve Depth |
134mm |
Outlets |
2 |
Diverter |
No |
Valve Controls |
3 |
Handle Type |
Lever/Crosshead |
Mounting Type |
Wall/ |
Connection Centres |
147mm |
Inlet Connection |
15mm (1/2 BSP) |
Material |
Brass |
Brand |
Nuie |
Finish |
Chrome |
Backplate |
No |
Minimum Pressure |
0.1 Bar |
Maximum Pressure |
3.0 Bar |
---|
Weight |
3.7 Kg |
Style |
Traditional |
Pipe Centres |
150mm |
Flow Rate - 0.1 Bar |
4.5 l/min |
Flow Rate - 0.5 Bar |
13 l/min |
Flow Rate - 1.0 Bar |
18.5 l/min |
Flow Rate - 2.0 Bar |
26 l/min |
Flow Rate - 3.0 Bar |
33 l/min |
EAN Barcode |
5055146184119 |
Manufacturer Part Number |
A3089E |
