Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome
Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome

Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome

£166.95

Inc. VAT
£374.00 SAVE £207.05

Stock Due In : 08/08/2021

The Nuie Minimalist Concealed Shower Valve with 2-Way Diverter Dual Handle - Chrome is a model from the popular range of thermostatic shower valves. This thermostatic shower valve includes accurate flow control, Full anti-scald protection, excellent flow rates and suitability for all plumbing systems. Made from extremely durable high quality material, The elegant chrome finishing makes it look awesome. Supplied with a 5 year guarantee from the manufacturer, you can be assured that you are receiving an item of the highest quality.

Nuie Volt JTY302 Shower Valve Features:


  • Can be fitted vertically or horizontally
  • Minimalist sleek design
  • Thermostatic control to +/- 2 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down within 1.5 seconds
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Highly resistant cartridge to calcium build up - even in hard water areas
  • Suitable for use on the majority of plumbing systems
  • Excellent flow rates, even at low pressure
  • Twin handle valve with diverter
  • Can deliver 5.5 litres per minute at 0.1 bar pressure
  • Accurate flow control
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for medium pressure water systems
  • Manufactured from high quality brass & ABS
  • Fully reversible Cartridge - Simply remove the cartridge, Turn 180C and replace according to hot and cold water supply
  • Complete with a 5 year guarantee from Nuie

Nuie Volt JTY302 Shower Valve Specifications:


Valve Type Thermostatic
Valve Siting Concealed
Diverter Yes
Valve Controls 2
Shower Valve Outlet 2
Handle Type Lever

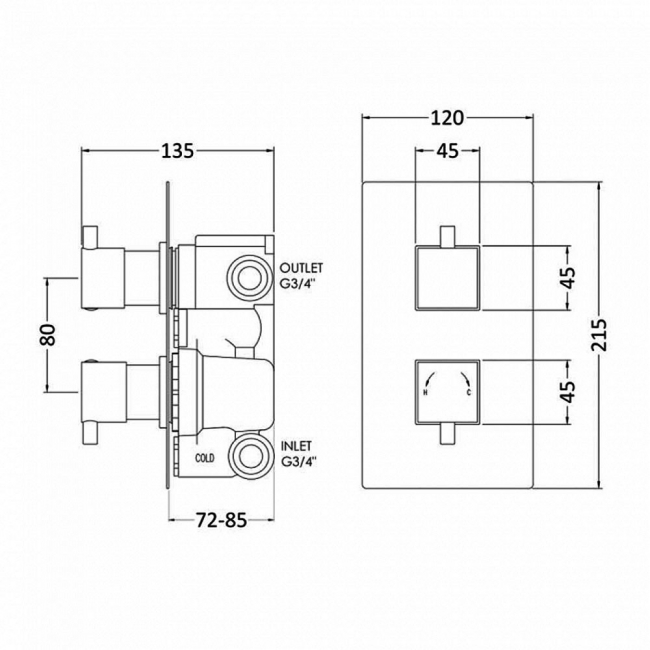

Height 215mm
Width 120mm
Depth 72-85mm
Inlet Connection 15mm (1/2 BSP)
Mounting Type Wall
Material Brass/ABS
Finish Chrome
Backplate Yes
Minimum Pressure 0.5 Bar
Weight 2.93 kg
Flow Rate - 0.5 Bar 13 l/min
Flow Rate - 1.0 Bar 17 l/min
Flow Rate - 2.0 Bar 24 l/min
Flow Rate - 3.0 Bar 27 l/min
Style Modern
EAN Barcode 5055146188957
Manufacturer Part Number JTY302
