Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Product Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome  | Dimension Image
Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome | Thumbnail Image Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome

Nuie Quest Concealed Shower Mixer with Slider Rail Kit Fixed Head and Body Jets - Chrome

Quick Code: 2804629
Ref: HAPK399
Nuie | Brand Logo
£473.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £39.50 at 0% APR using PayPal.
Find out more
PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Comes complete with Shower valve, Round Shower head, Shower Hose, Outlet Elbow and Diverter
  • Comes complete with Fixed Shower Head, Round Body Jet and Shower Arm
  • Shower valve fitted vertically or horizontally
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Operates two accessories separately or simultaneously
  • Top control operates one shower accessory, centre adjusts temperature, bottom control operates the other shower accessory
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Multi-function round handset
  • 1.5m shower flex chrome plated brass
  • Handset chrome plated ABS
  • Designed to be installed with a wall or ceiling-mounted shower arm
  • Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Shower TypeThermostatic
Shower Valve PositionConcealed
Shower Valve Outlets3
Shower IncludesShower Kit, Shower Valve, Fixed Head, Body Jets
Shower Valve Controls3

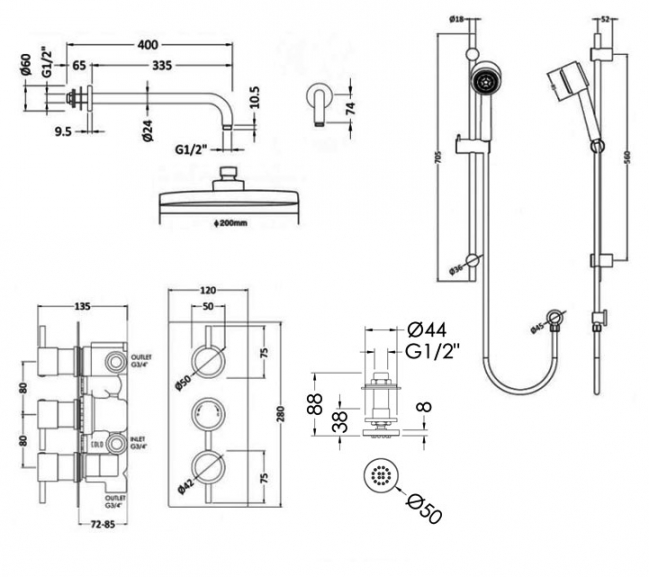

Shower Kit Height705mm
Shower Arm Length335mm
Shower Head Width200mm
Shower Head Depth200mm
Minimum Pressure0.5 Bar
Maximum Pressure3.0 Bar
Inlet Connection Size15mm & 22mm
MaterialBrass/ABS
ColourChrome
Weight8.74 kg
BrandNuie
CollectionQuest
StyleModern
MarketDomestic
Manufacturer Part NumberQUEV56+A3043+HEAD49+A355+A355+A355+A355+ARM01
Flow Rate @ 0.5 Bar13 l/min
Flow Rate @ 1.0 Bar17 l/min
Flow Rate @ 2.0 Bar24 l/min
Flow Rate @ 3.0 Bar27 l/min

Brochure-25
Type : PDF Size : 38.90 MB
Shower Head Fitting Instructions
Type : PDF Size : 191.69 KB
Shower Kit Fitting Instructions
Type : PDF Size : 191.99 KB
Shower Arm Fitting Instructions
Type : PDF Size : 191.42 KB
Body Jet Fitting Instructions
Type : PDF Size : 192.10 KB
Shower Valve Fitting Instructions
Type : PDF Size : 3.47 MB
Guarantee Policy
Type : PDF Size : 319.11 KB
Rail Kit Datasheet
Type : PDF Size : 1.05 MB
Fixed Head Datasheet
Type : PDF Size : 536.19 KB
Body Jet Product Datasheet
Type : PDF Size : 2.09 MB
Shower Arm Datasheet
Type : PDF Size : 536.19 KB
Shower Valve Datasheet
Type : PDF Size : 1.05 MB
