ProTray End Drain Level Access Wet Room Floor Former Tray
Characterised by its shower grate position located centrally at one end of the former, the ProTray takes inspiration from luxury spa-like wet room design. This cost-effectice and lightweight solution is manufactured from expanded polystyrene (XPS) and measures just 30mm thick - perfect for recessing into the floor and creating a level access shower. The clever waterproof surface layer ensures the ProTray is immediately ready to accept tiles of any shape or weight. Manufactured in the UK.
The ProTray must be installed with an official installation kit and compatible tiled floor waste - both parts available separately.
Product Features
- Level access wet room shower tray floor former available in 3 sizes
- End waste drain position - premium designer option for larger areas
- Lightweight solution - manufactured from an expanded polystyrene (XPS) core
- Waterproof coating - ready to be tiled directly on top of
- Suitable for all sizes and thicknesses of tiles

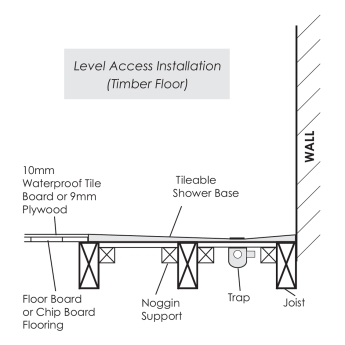

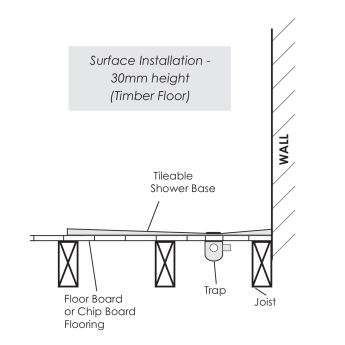

- 30mm thickness - suitable for level access or surface mounting on existing floors
- Versatile tray - can be trimmed up to 100mm with a fine tooth handsaw
- Suitable for timber floors but requires underboarding - not self-supporting
- Compatible with standard horizontal gravity wastes (sold separately)
- Square waste drain area measures 120mm x 120mm
- Manufactured in the UK by a market leader in wet rooms
- Includes 15 year guarantee when installed with the required installation kit (sold separately)

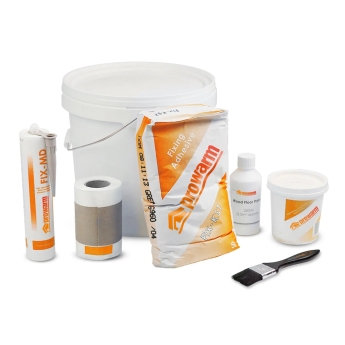

Installation Kit Features
- 5kg KST flexible tile adhesive
- 5m waterproofing tape
- 2 x Internal Corners
- Pro-Seal Tape sealing compound
- 0.25l Wood floor Primer
- Paint Brush
- Nylon Gloves
- Plastic bucket (can be used for mixing)

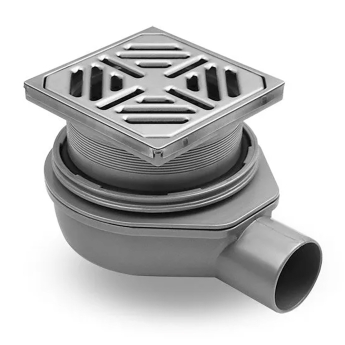

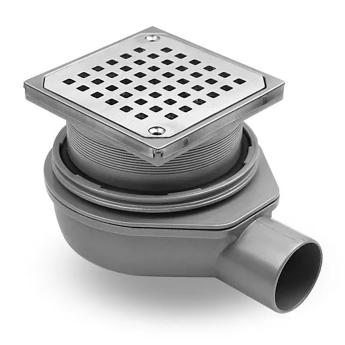

Wet Room Drain Features

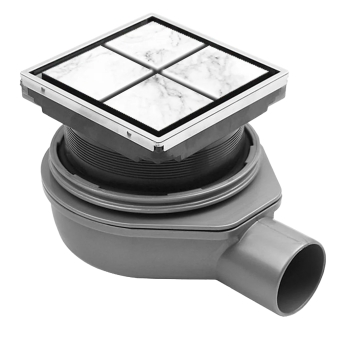

- 3 horizontal gravity wastes available, including a tile insert option for a seamless look
- Square design with 120mm x 120mm stainless steel grate
- 2 inch solvent pipe - compatible with all standard UK plumbing
- Removable hair trap
- Up to 60 litres per minute flow rate
Important Information
- Requires installation kit (Code: PWPTWPKIT) to activate 15-year guarantee - kit sold separately
- Must be installed with 1 of 3 horizontal tiled waste drains - available separately
- Additional waterproofing accessories are available separately
- Recommended compatible backer board size: 10mm (available separately)
